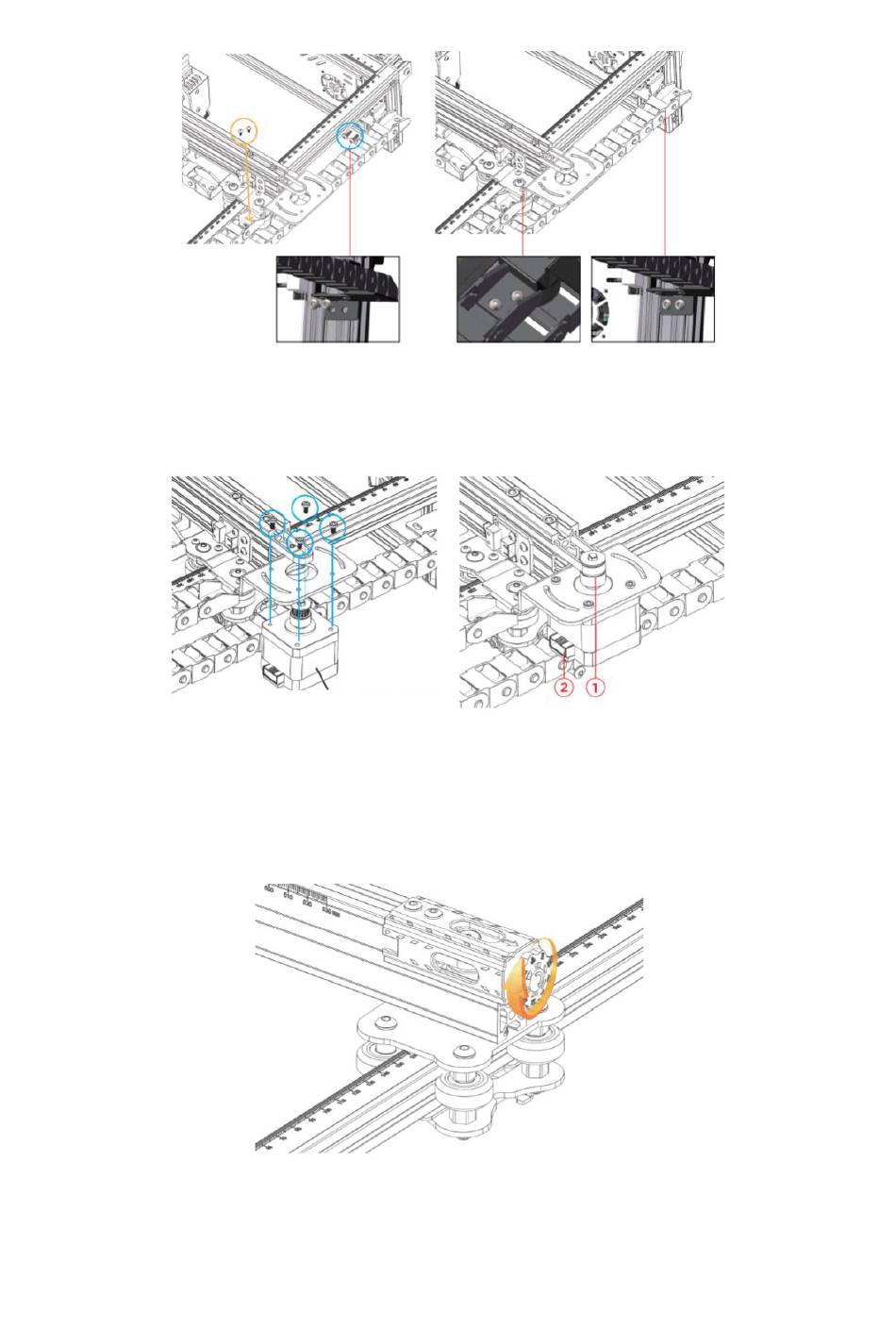

5. Installation of X-axis Stepper Motor
M3*6 Screw x 4
X-axis Stepper Motor x 1
X-axis Stepper Motor
NOTE:
1) Please put timing belt into Pulley groove on Stepper Motor.
2) Please make sure the circuit connector in the right direction as above picture.
6. Adjustment of X-axis Tensioner
NOTE: Please make sure the Timing belt is tight to avoid engraving dislocation.
