two trees TS2 Benutzerhandbuch Seite 22

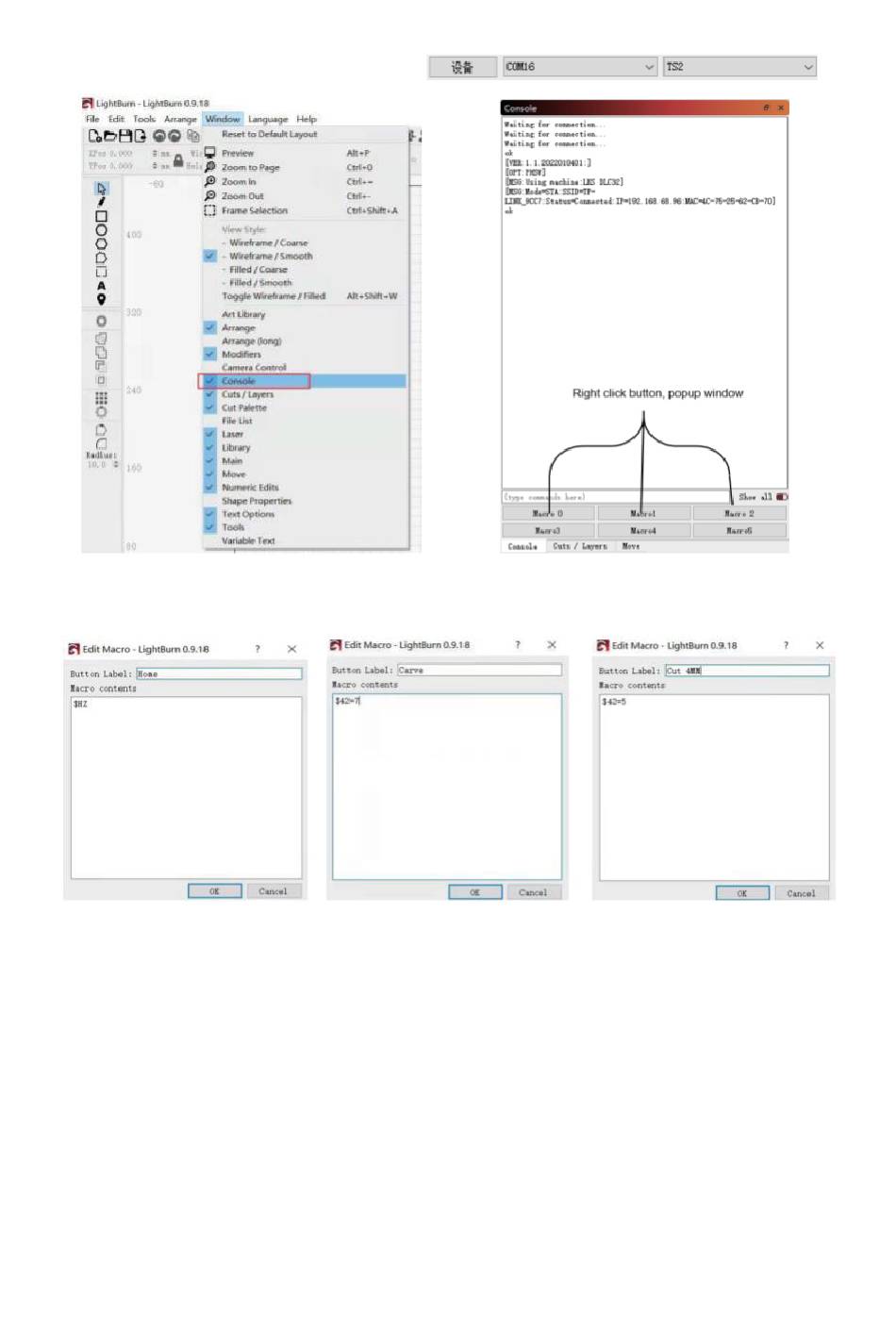

Device connection software to set up
1) Open the software and open the
console in the window
Set the Z-axis back to zero
1) Upon finish the setting of
the three parameters, if you
want to do engraving jobs,
first of all, click the Carve
custom button to save the
parameters.
NOTES: The engraving height of 7MM is a fixed parameter, suppose the object to be
cutting is 4MM thickness, the focal length of the laser head needs to deduct half of the
thickness of the object, and the parameters for cutting has to be "7 (engraving height)-2
(center position of the object) = 5MM" input "$42=5", and so on, you can set more cutting
parameters for different thickness material.
2) Enter the console to set custom key
parameters
Set engraving, Z-axis rising
2) Then execute the
Home custom button,
the machine controls
the Z-axis to return to
"zero" and rising to the
setting height.
22
Set cutting, Z-axis rising
height
3) Complete the automatic
focusing operation.
