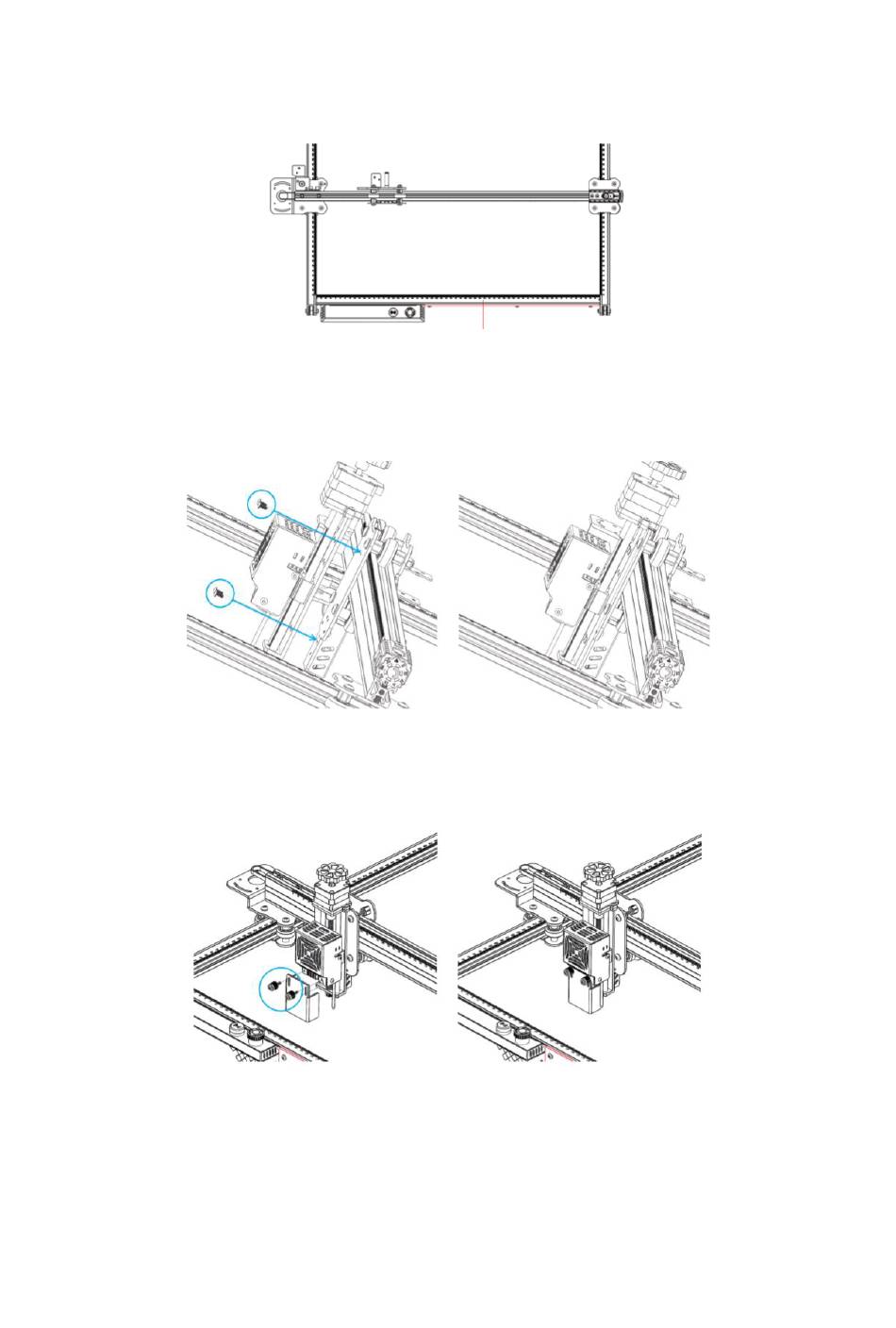

Attention: Please make sure the X-axis crossbeam is parallel to front crossbeam (check
ruler marks on both sides as reference) while installation, otherwise it would affect
movement of Y-axis and engraving affects.
Front beam profile
2.2 Installation of Laser Module
Laser Module x 1
M3*6 Screws x 4
2.3 Installation of Protective Cover
Laser Protective Cove x 1
M3*8 Screws x 2
3.1 Installation of X-axis drag chain
M3*6 Screws x 4
X-axis Cable Carriage Parts x 1
