Wiring instruction
1. Cable marking explanation
X-axis Endstop Switch Cable
X (4PIN) → X-axis Stepper Motor Cable
Y (3PIN) → Y-axis Endstop Switch Cable
Y (4PIN) → Y-axis Stepper Motor Cable
Z (2PIN) → Z-axis Endstop Switch Cable
Z (4PIN) → Z-axis Stepper Motor Cable
A (2PIN) → Laser Signal Cable
E (3PIN) → Flame Detector Signal Cable
1 (2PIN) → Laser Fan Line
NOTE: PIN refer to the quantity of cable connecting pins.

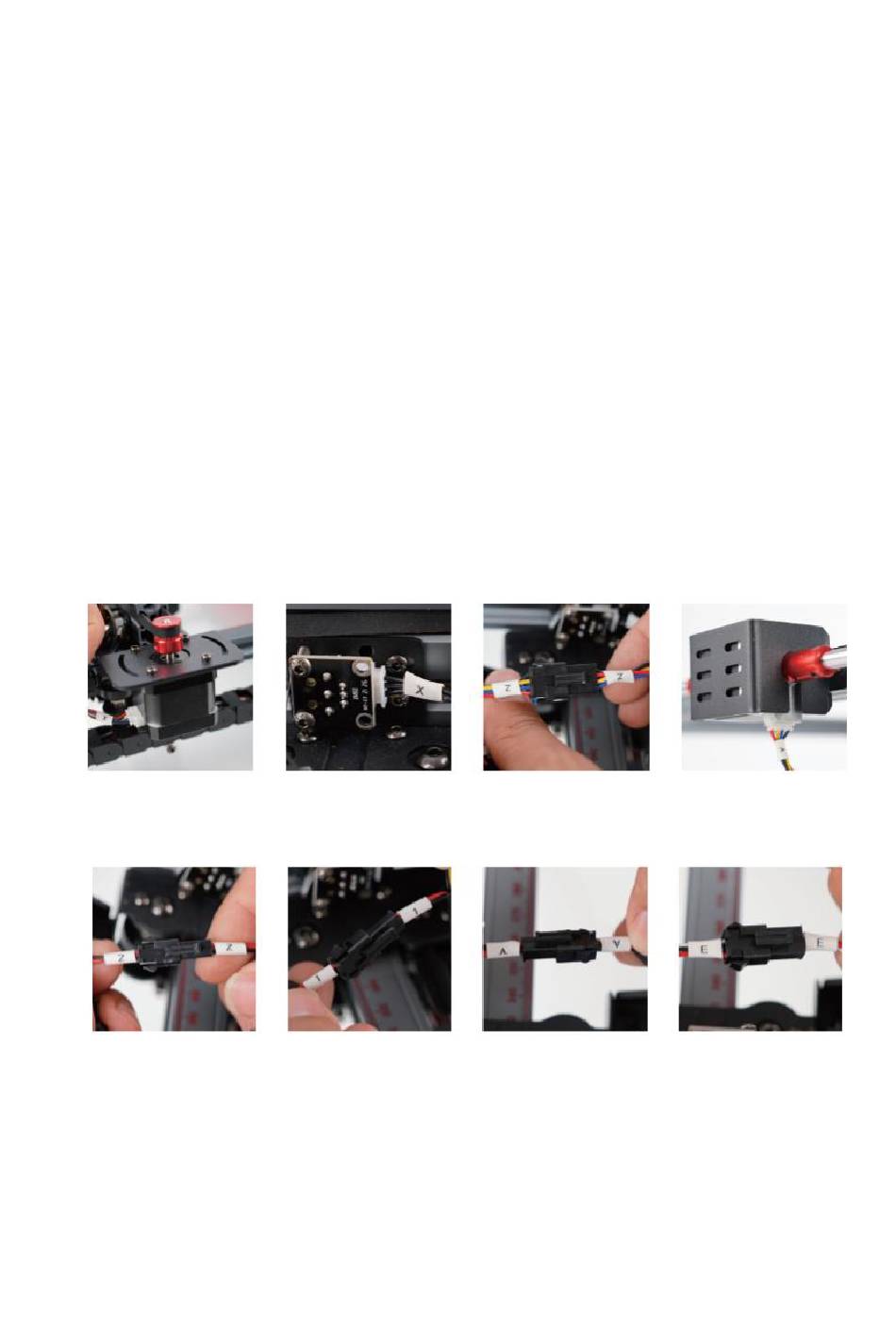

2. Wiring diagram
X (4PIN) → X-axis
Stepper Motor Cable
Z (2PIN) → Z-axis
Endstop Switch Cable
Attention: Please make sure all wiring corrects before turning on the machine.
X (3PIN) → X-axis
Endstop Switch Cable
1 (2PIN) → Laser
Fan Line
14
Z (4PIN) → Z-axis
Stepper Motor Cable
A (2PIN) → Laser
Signal Cable
Y (4PIN) → Y-axis
Stepper Motor Cable
E (3PIN) → Flame
Detector Signal Cable
