1.5 Installation of Y-axis Right Timing belt & Idler Pulley
Screw Bolt M4*16 x 2
NOTE: Please set the Timing belt into Pulley groove before installing the Idler Pulley
1.6 Adjustment of Y-axis Right Tensioner
Please tighten tensioner screw in clockwise direction with hex key or loosen the belt in
counterclockwise direction.
NOTE: If tensioner too tight, Pulley would stuck. And if too loose, it would also affect
engraving result.

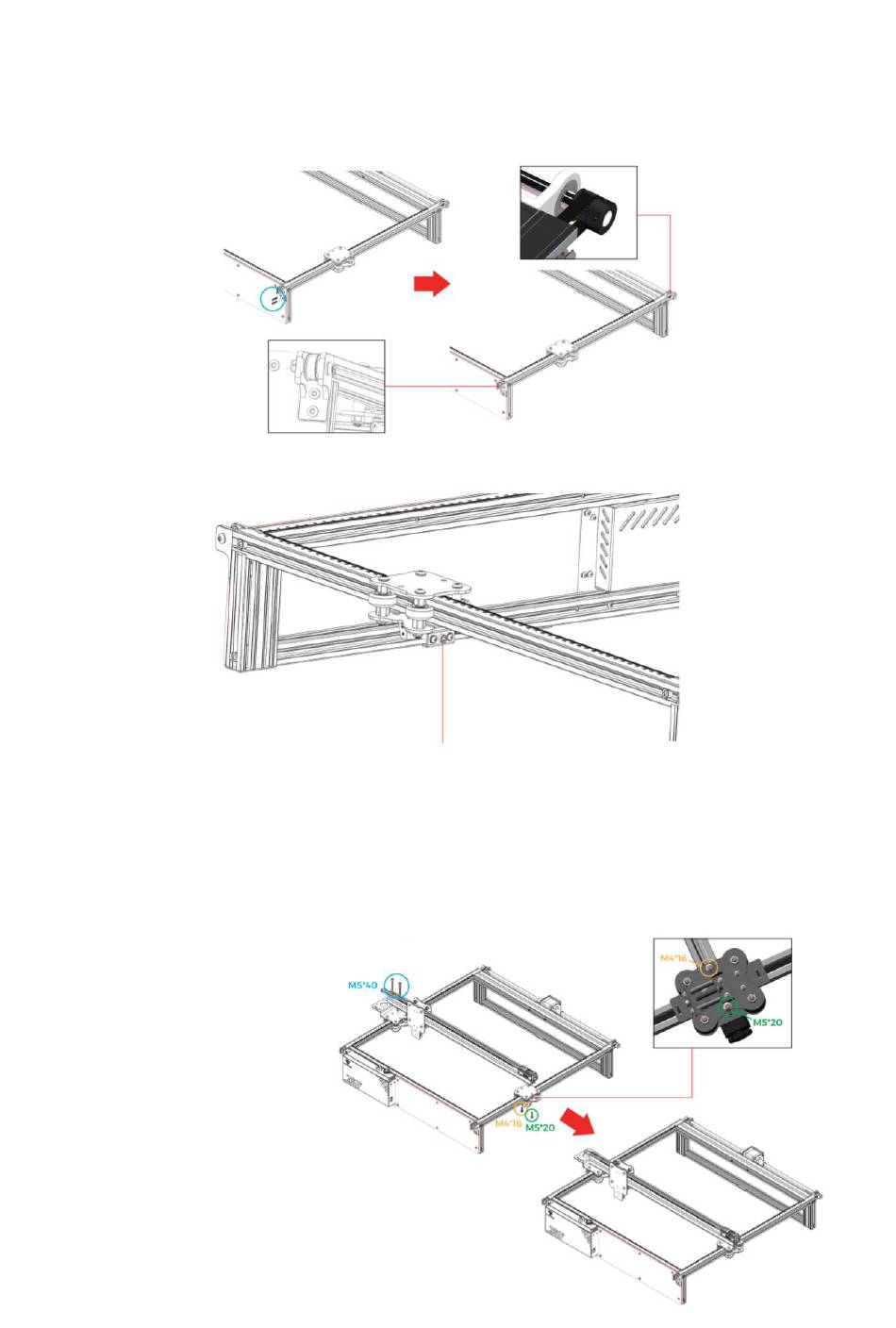

2.1 Installation of X-axis Crossbeam Parts
X-axis Crossbeam Parts x 1
M5*40 Screw x 2
M5*20 Screw x 1
M4*16 Screw x 1
