two trees TS2 Benutzerhandbuch Seite 21

Software: LaserGRBL
Select the correct serial number and baud rate (115 200) and connect.

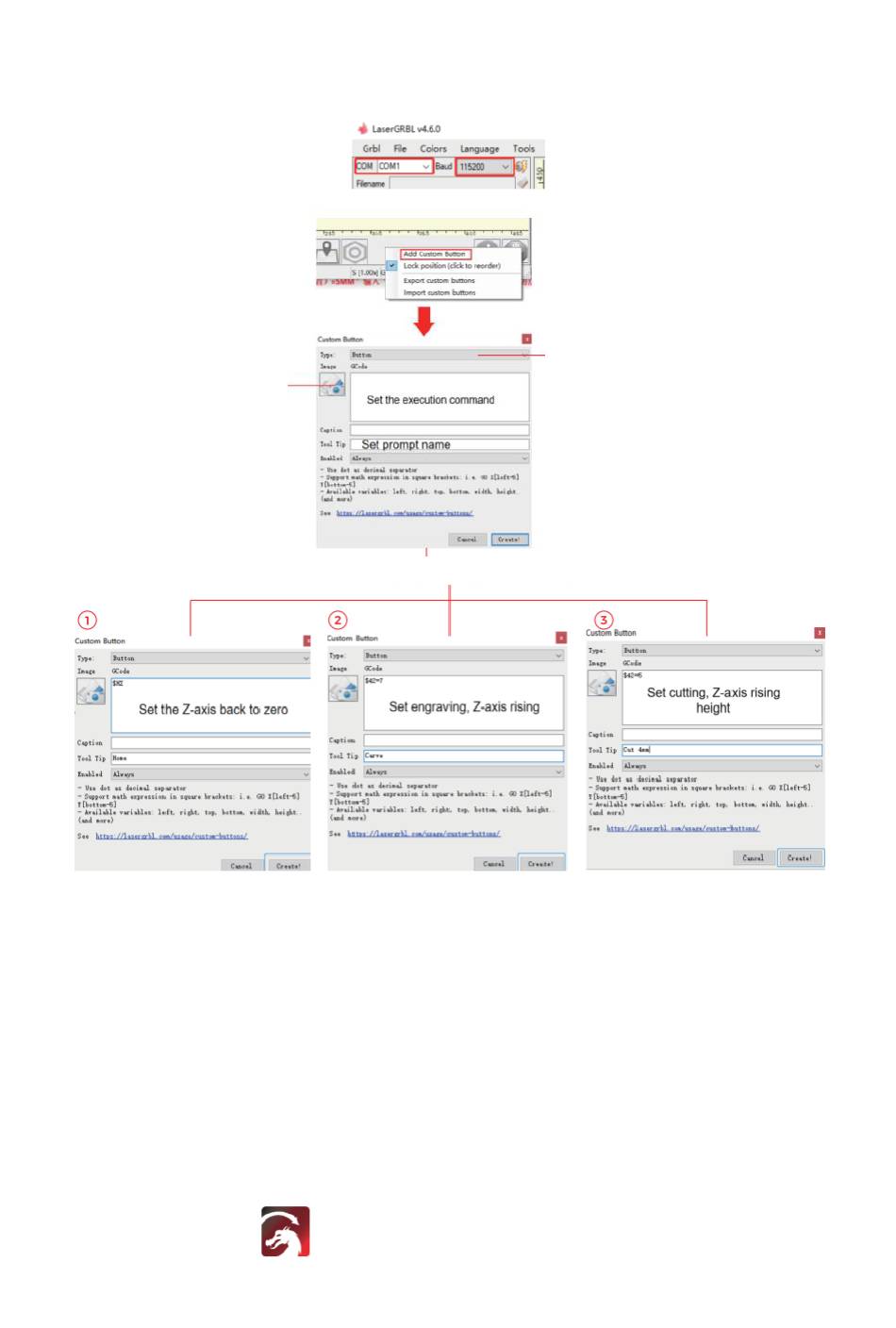

Settings icon
1) Upon finish the setting of
the three parameters, if you
want to do engraving jobs, first
of all, click the Carve custom
button to save the parameters.
NOTES: The engraving height of 7MM is a fixed parameter, suppose the object to be
cutting is 4MM thickness, the focal length of the laser head needs to deduct half of the
thickness of the object, and the parameters for cutting has to be "7 (engraving height)-2
(center position of the object) = 5MM" input "$42=5", and so on, you can set more cutting
parameters for different thickness material.
Software: Lightburn
2) Then execute the Home
custom button, the machine
controls the Z-axis to return
to „zero" and rising to the
setting height.
21
Set type (Default button)
3) Complete the automatic
focusing operation.
