two trees TS2 Benutzerhandbuch Seite 17

3) Choice of engraving energy. Choose it according to different materials.
4) Finally, set the size and click the "Create" button to complete the setting of
all engraving parameters.
Save GCODE file
Click "File" in the menu at the top of the software interface, enter the drop-down menu,
and select "Save". Copy the saved .nc file to the TF card and insert the TF card into the
engraver to use the file to engrave your work.
Use the "MKSLaserTool" software in TF to add preview codes to GCODE files.
Connect PC
1. Connect the machine with the computer installed with LaserGRBL software
with USB data cable.
2. Plug in the power.
3. Open LaserGRBL on the computer.
4. Select the specific port number and baud rate – 115 200 (Figure A.10).
5. Click the lightning sign. When the lightning sign changes to the red "X" and the
direction sign is lit, it indicated that the connection is successful (Figure A.11).
Generally, the COM port does not need to be selected manually, unless multiple serial
port devices are connected to the computer, you can find the port of the machine in the
device manager of the windows system (as shown in Figure A.09). A simpler way is to try
the displayed port number one by one.

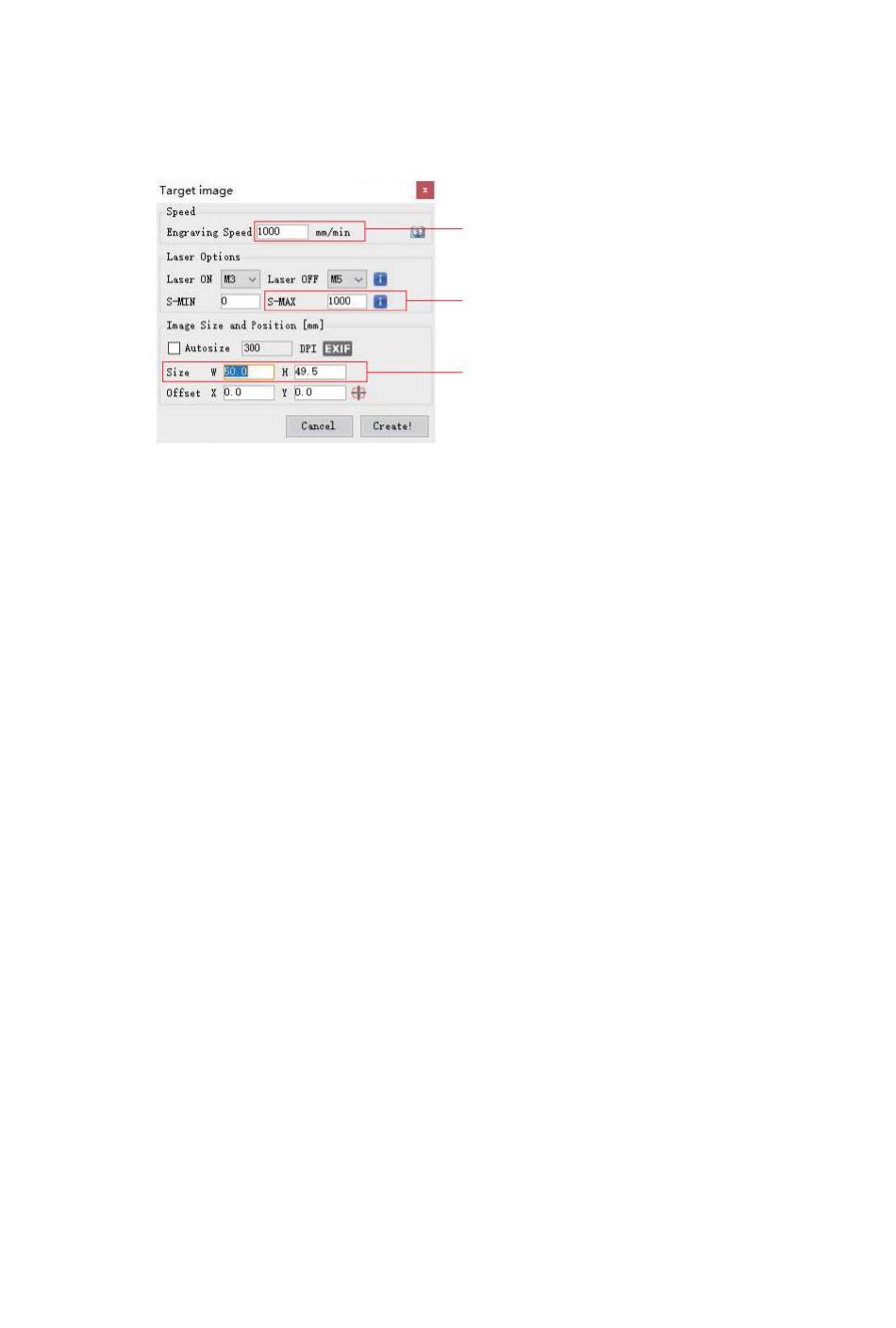

The default engraving speed is 1000
and can be adjusted as required
Set the energy value. Improper energy
will affect the engraving effect
Enter the size of the graph you
want to engrave
17
