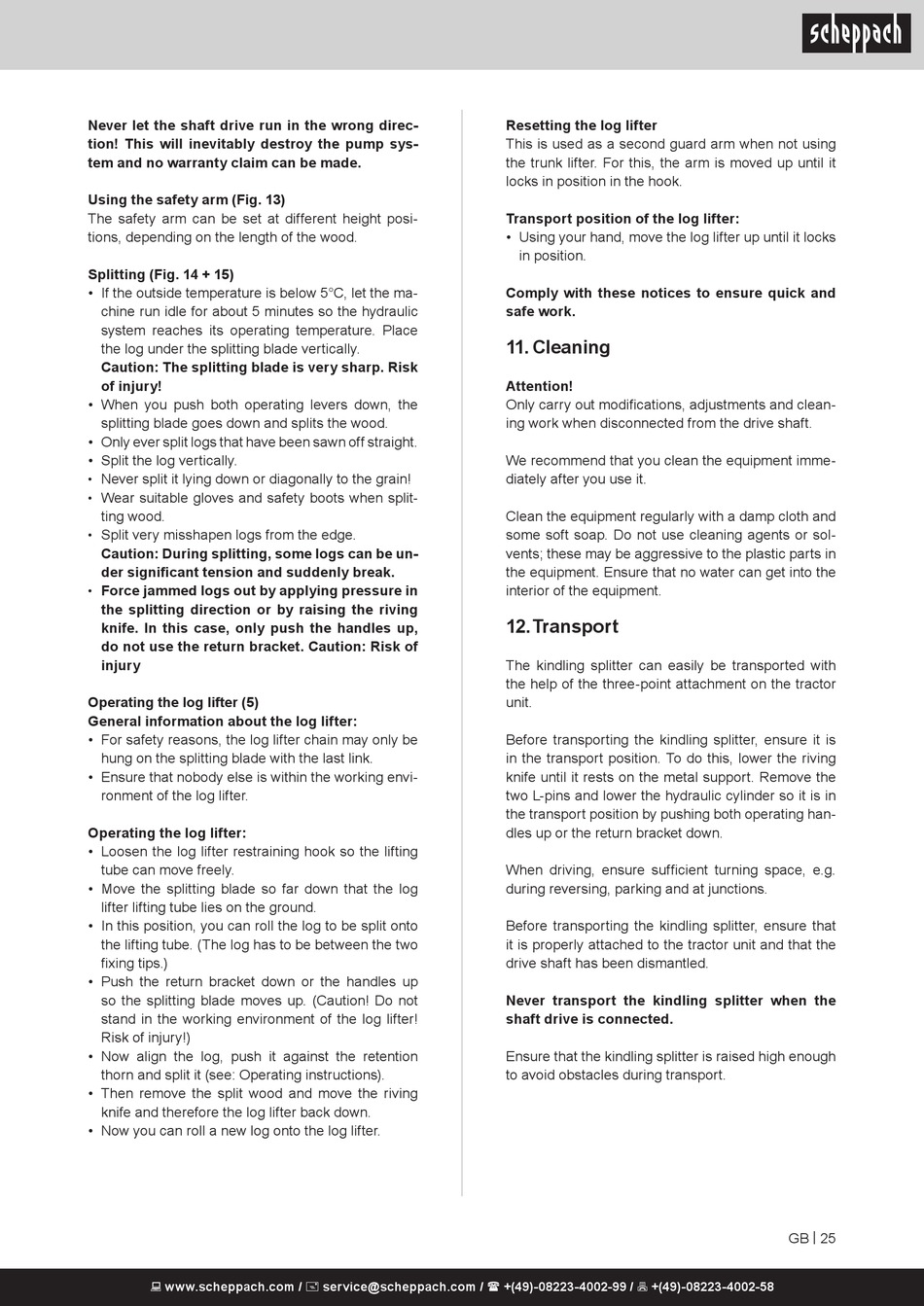

Never let the shaft drive run in the wrong direc-
tion! This will inevitably destroy the pump sys-
tem and no warranty claim can be made.
Using the safety arm (Fig. 13)
The safety arm can be set at different height posi-
tions, depending on the length of the wood.
Splitting (Fig. 14 + 15)
• If the outside temperature is below 5°C, let the ma-
chine run idle for about 5 minutes so the hydraulic
system reaches its operating temperature. Place
the log under the splitting blade vertically.
Caution: The splitting blade is very sharp. Risk
of injury!
• When you push both operating levers down, the
splitting blade goes down and splits the wood.
• Only ever split logs that have been sawn off straight.
• Split the log vertically.
Never split it lying down or diagonally to the grain!
•
Wear suitable gloves and safety boots when split-
•
ting wood.
Split very misshapen logs from the edge.
•
Caution: During splitting, some logs can be un-
der significant tension and suddenly break.
Force jammed logs out by applying pressure in
•
the splitting direction or by raising the riving
knife. In this case, only push the handles up,
do not use the return bracket. Caution: Risk of
injury
Operating the log lifter (5)
General information about the log lifter:
• For safety reasons, the log lifter chain may only be
hung on the splitting blade with the last link.
• Ensure that nobody else is within the working envi-
ronment of the log lifter.
Operating the log lifter:
• Loosen the log lifter restraining hook so the lifting
tube can move freely.
• Move the splitting blade so far down that the log
lifter lifting tube lies on the ground.
• In this position, you can roll the log to be split onto
the lifting tube. (The log has to be between the two
fixing tips.)
• Push the return bracket down or the handles up
so the splitting blade moves up. (Caution! Do not
stand in the working environment of the log lifter!
Risk of injury!)
• Now align the log, push it against the retention
thorn and split it (see: Operating instructions).
• Then remove the split wood and move the riving
knife and therefore the log lifter back down.
• Now you can roll a new log onto the log lifter.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Resetting the log lifter
This is used as a second guard arm when not using
the trunk lifter. For this, the arm is moved up until it
locks in position in the hook.
Transport position of the log lifter:
• Using your hand, move the log lifter up until it locks
in position.
Comply with these notices to ensure quick and
safe work.

11. Cleaning

Attention!
Only carry out modifications, adjustments and clean-
ing work when disconnected from the drive shaft.
We recommend that you clean the equipment imme-
diately after you use it.
Clean the equipment regularly with a damp cloth and
some soft soap. Do not use cleaning agents or sol-
vents; these may be aggressive to the plastic parts in
the equipment. Ensure that no water can get into the
interior of the equipment.

12. Transport

The kindling splitter can easily be transported with
the help of the three-point attachment on the tractor
unit.
Before transporting the kindling splitter, ensure it is
in the transport position. To do this, lower the riving
knife until it rests on the metal support. Remove the
two L-pins and lower the hydraulic cylinder so it is in
the transport position by pushing both operating han-
dles up or the return bracket down.
When driving, ensure sufficient turning space, e.g.
during reversing, parking and at junctions.
Before transporting the kindling splitter, ensure that
it is properly attached to the tractor unit and that the
drive shaft has been dismantled.
Never transport the kindling splitter when the
shaft drive is connected.
Ensure that the kindling splitter is raised high enough
to avoid obstacles during transport.
GB | 25
