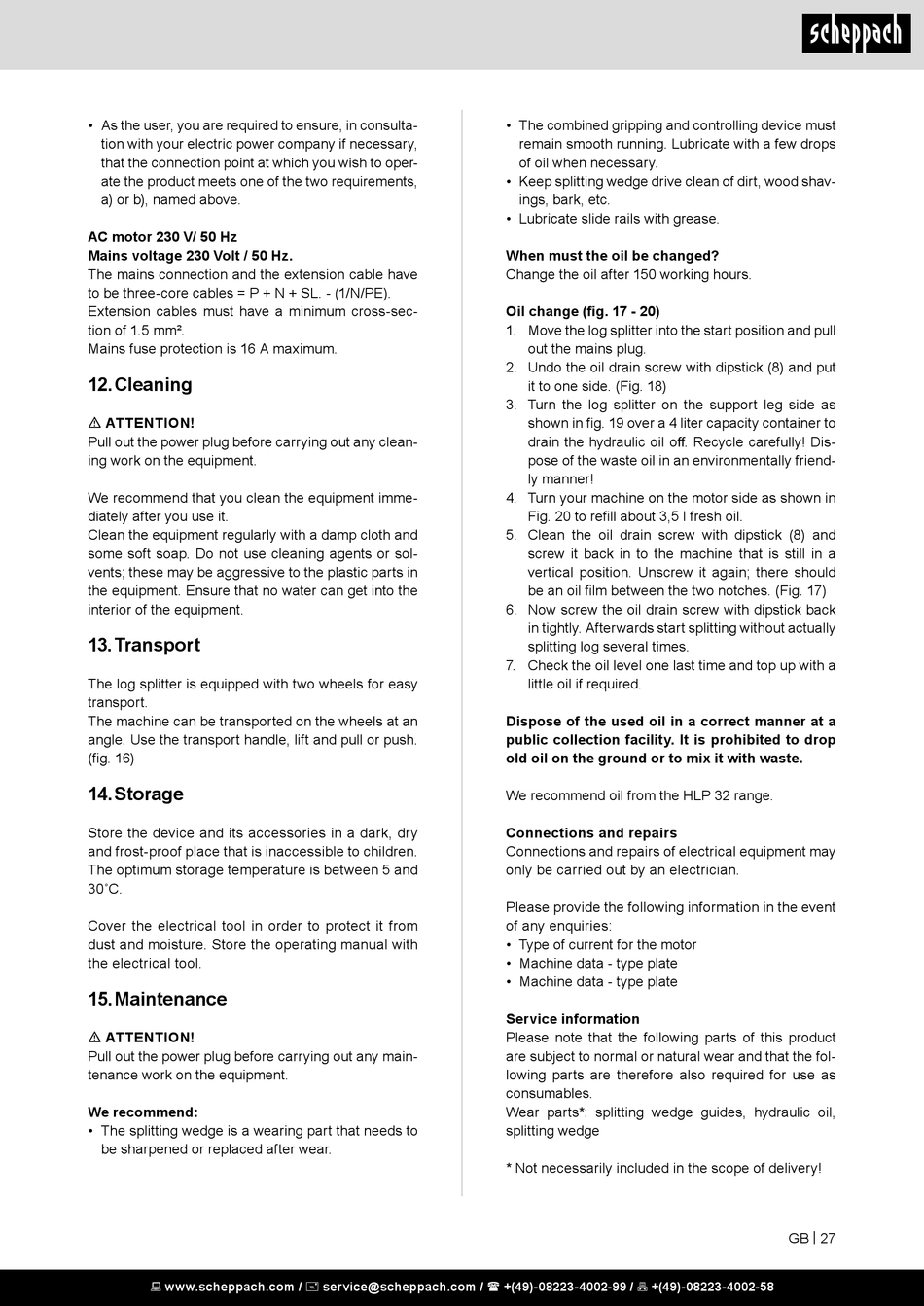

• As the user, you are required to ensure, in consulta-
tion with your electric power company if necessary,
that the connection point at which you wish to oper-
ate the product meets one of the two requirements,
a) or b), named above.
AC motor 230 V/ 50 Hz
Mains voltage 230 Volt / 50 Hz.
The mains connection and the extension cable have
to be three-core cables = P + N + SL. - (1/N/PE).
Extension cables must have a minimum cross-sec-
tion of 1.5 mm².
Mains fuse protection is 16 A maximum.

12. Cleaning

m ATTENTION!
Pull out the power plug before carrying out any clean-
ing work on the equipment.
We recommend that you clean the equipment imme-
diately after you use it.
Clean the equipment regularly with a damp cloth and
some soft soap. Do not use cleaning agents or sol-
vents; these may be aggressive to the plastic parts in
the equipment. Ensure that no water can get into the
interior of the equipment.

13. Transport

The log splitter is equipped with two wheels for easy
transport.
The machine can be transported on the wheels at an
angle. Use the transport handle, lift and pull or push.
(fig. 16)

14. Storage

Store the device and its accessories in a dark, dry
and frost-proof place that is inaccessible to children.
The optimum storage temperature is between 5 and
30˚C.
Cover the electrical tool in order to protect it from
dust and moisture. Store the operating manual with
the electrical tool.

15. Maintenance

m ATTENTION!
Pull out the power plug before carrying out any main-
tenance work on the equipment.
We recommend:
• The splitting wedge is a wearing part that needs to
be sharpened or replaced after wear.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• The combined gripping and controlling device must
remain smooth running. Lubricate with a few drops
of oil when necessary.
• Keep splitting wedge drive clean of dirt, wood shav-
ings, bark, etc.
• Lubricate slide rails with grease.
When must the oil be changed?
Change the oil after 150 working hours.
Oil change (fig. 17 - 20)
1. Move the log splitter into the start position and pull
out the mains plug.
2. Undo the oil drain screw with dipstick (8) and put
it to one side. (Fig. 18)
3. Turn the log splitter on the support leg side as
shown in fig. 19 over a 4 liter capacity container to
drain the hydraulic oil off. Recycle carefully! Dis-
pose of the waste oil in an environmentally friend-
ly manner!
4. Turn your machine on the motor side as shown in
Fig. 20 to refill about 3,5 l fresh oil.
5. Clean the oil drain screw with dipstick (8) and
screw it back in to the machine that is still in a
vertical position. Unscrew it again; there should
be an oil film between the two notches. (Fig. 17)
6. Now screw the oil drain screw with dipstick back
in tightly. Afterwards start splitting without actually
splitting log several times.
7. Check the oil level one last time and top up with a
little oil if required.
Dispose of the used oil in a correct manner at a
public collection facility. It is prohibited to drop
old oil on the ground or to mix it with waste.
We recommend oil from the HLP 32 range.
Connections and repairs
Connections and repairs of electrical equipment may
only be carried out by an electrician.
Please provide the following information in the event
of any enquiries:
• Type of current for the motor
• Machine data - type plate
• Machine data - type plate
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts*: splitting wedge guides, hydraulic oil,
splitting wedge
* Not necessarily included in the scope of delivery!
