Mounting

The devices can be mounted onto a top hat rail (EN 60715) or they can be
screwed onto mounting plates.
Mounting and installation must be done according to the valid regulations. The
user is responsible for regulation compliance.
All installations must be EMC-compatible.
CAUTION
Please pay attention to the installation situation
Possible damage to device caused by incorrect installation
➤ Please ensure sufficient heat dissipation.
➤
➤ Please adequately protect the device from dust, dirt, moisture, and
➤
other environmental influences.
➤ Adequately protect the device against high-energy radiation.
➤
➤ Protect the device against mechanical damages, unauthorized modifica-
➤
tions, and accidental contact.
110
89
Figure 3:
6

electrical connection

The cable is connected via reverse polarity protected terminal blocks with un-
detachable screws for the connection widths ≤ 1 × 2.5 mm², 2 × 1.5 mm² or
2 × 1 mm² with wire end sleeve.
more@turck.com • www.turck.com • 2012/12
110
27

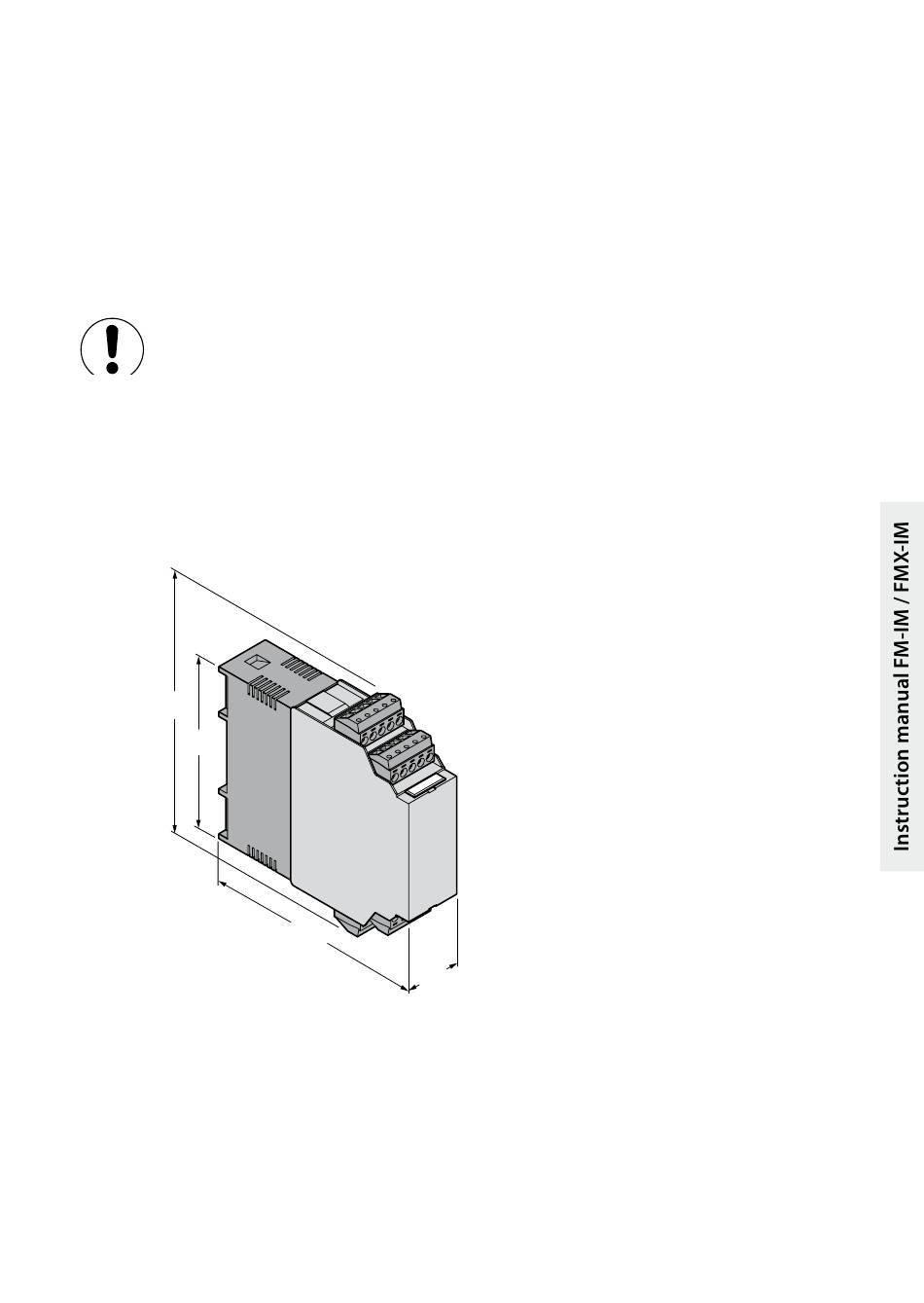

Housing dimensions
Mounting
21
