turck FM-IM Serie Betriebsanleitung Seite 63

Error
Temperature of
medium above
display range
✗
Wire breakage/
short circuit to
current source
✓
Short circuit transis-
tor output Out 2
(only FM(X)-IM-
3UP63X and FM(X)-
IM-2UPLi63X)
✓
No burden con-
nected; burden is
too high or current
source is defective
(only FM(X)-IM-
2UPLi63X)
✓
Table 3:
¹ ✓ – Signaling via Out 3 (Fault)
✗ – No signaling via Out 3 (Fault)
more@turck.com • www.turck.com • 2012/12
Display
Pwr Flow Temp Fault
Pwr Flow Temp Fault
Pwr Flow Temp Fault
Pwr Flow Temp Fault

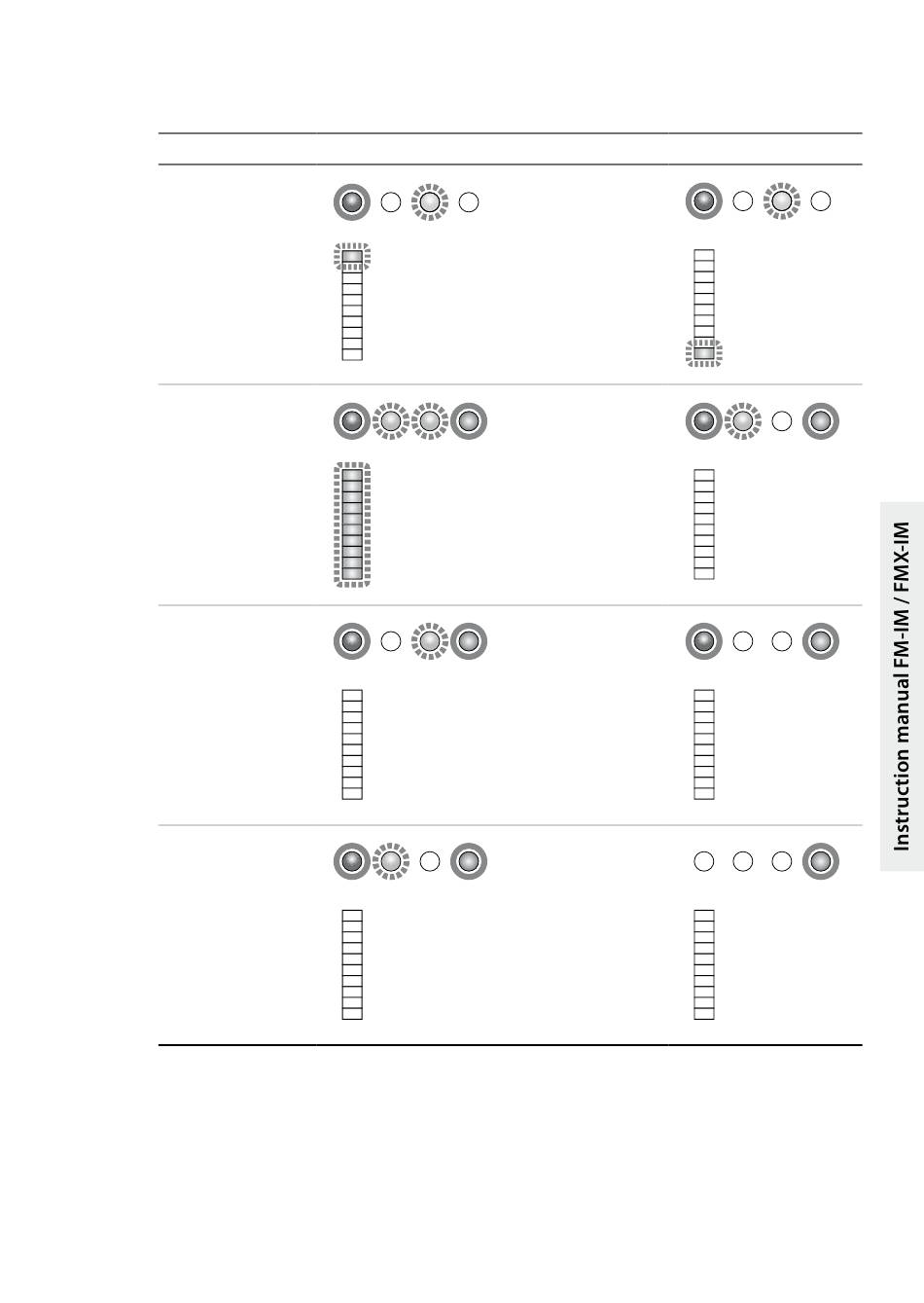

Error signaling via LED-display
Display and operating elements
Error
Temperature of
medium below
display range
✗
Short circuit transis-
tor output Out 1
(only FM(X)-IM-
3UP63X)
✓
Short circuit transis-
tor output Out 3
(only FM(X)-IM-
3UP63X and FM(X)-
IM-2UPLi63X)
✓
general error
(Disconnection of
all outputs; manual
reset needed))
✓
Display
Pwr Flow Temp Fault
Pwr Flow Temp Fault
Pwr Flow Temp Fault
Pwr Flow Temp Fault
19
