7

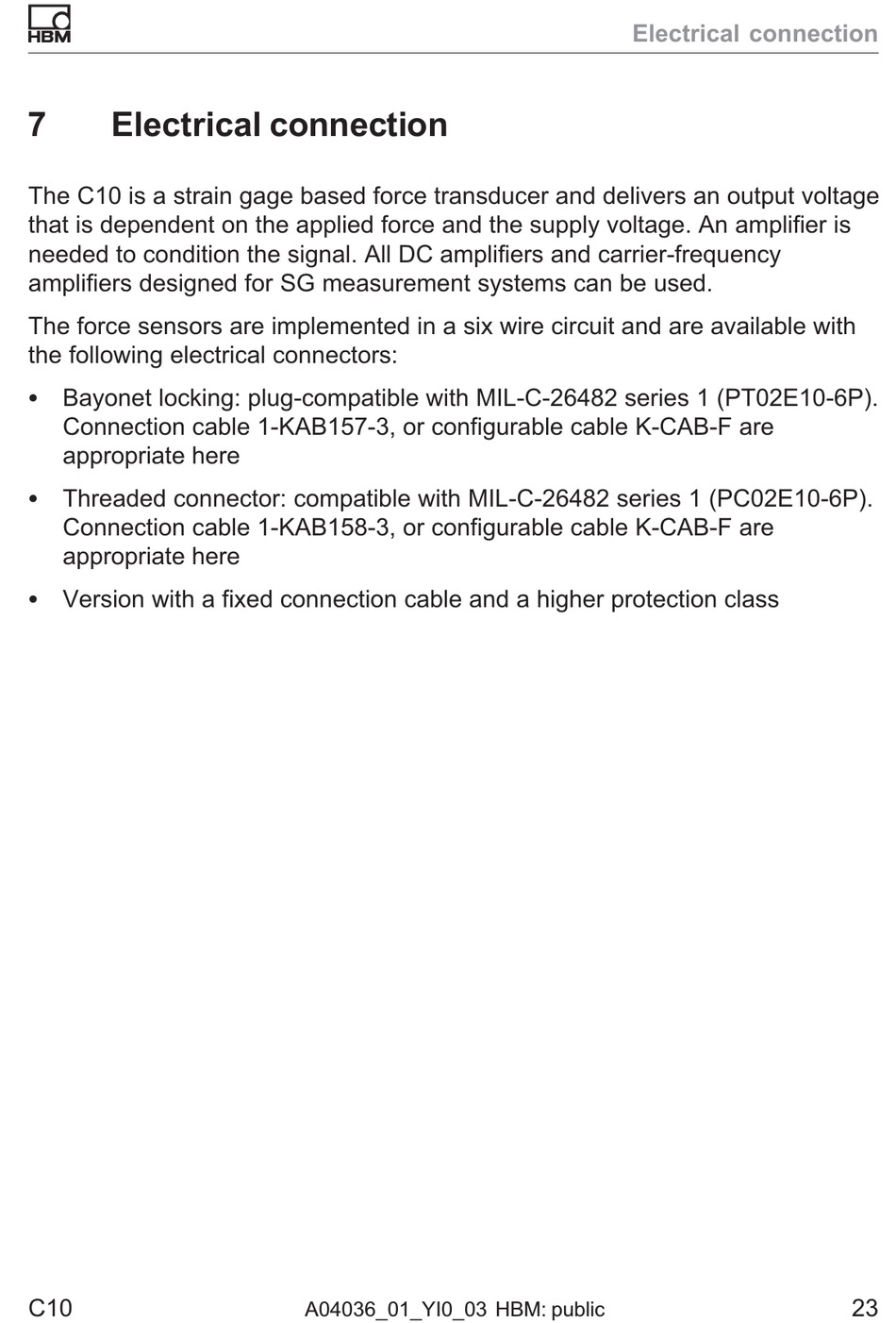

Electrical connection

The C10 is a strain gage based force transducer and delivers an output voltage
that is dependent on the applied force and the supply voltage. An amplifier is
needed to condition the signal. All DC amplifiers and carrier-frequency
amplifiers designed for SG measurement systems can be used.
The force sensors are implemented in a six wire circuit and are available with
the following electrical connectors:
S Bayonet locking: plug-compatible with MIL­C­26482 series 1 (PT02E10­6P).
Connection cable 1­KAB157­3, or configurable cable K­CAB­F are
appropriate here
S Threaded connector: compatible with MIL­C­26482 series 1 (PC02E10­6P).
Connection cable 1­KAB158­3, or configurable cable K­CAB­F are
appropriate here
S Version with a fixed connection cable and a higher protection class
