5

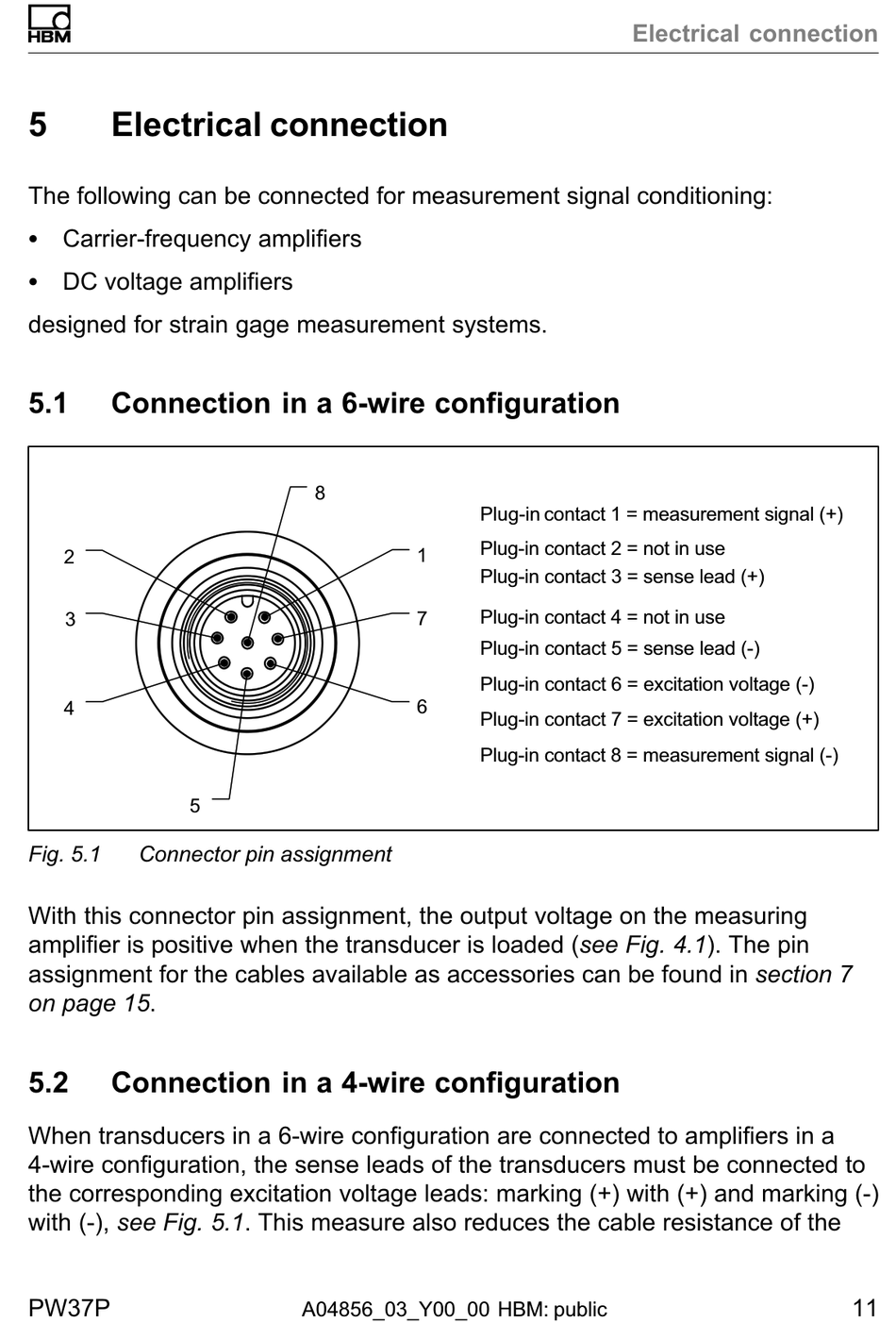

Electrical connection

The following can be connected for measurement signal conditioning:
S Carrier-frequency amplifiers
S DC voltage amplifiers
designed for strain gage measurement systems.
5.1

Connection in a 6-wire configuration

2
3
4
5
Fig. 5.1 Connector pin assignment
With this connector pin assignment, the output voltage on the measuring
amplifier is positive when the transducer is loaded (see Fig. 4.1). The pin
assignment for the cables available as accessories can be found in section 7
on page 15.
5.2

Connection in a 4-wire configuration

When transducers in a 6-wire configuration are connected to amplifiers in a
4-wire configuration, the sense leads of the transducers must be connected to
the corresponding excitation voltage leads: marking (+) with (+) and marking (-)
with (-), see Fig. 5.1. This measure also reduces the cable resistance of the
PW37P
8
1
7
6
A04856_03_Y00_00 HBM: public
Electrical connection
Plug-in contact 1 = measurement signal (+)
Plug-in contact 2 = not in use
Plug-in contact 3 = sense lead (+)
Plug-in contact 4 = not in use
Plug-in contact 5 = sense lead (-)
Plug-in contact 6 = excitation voltage (-)
Plug-in contact 7 = excitation voltage (+)
Plug-in contact 8 = measurement signal (-)
