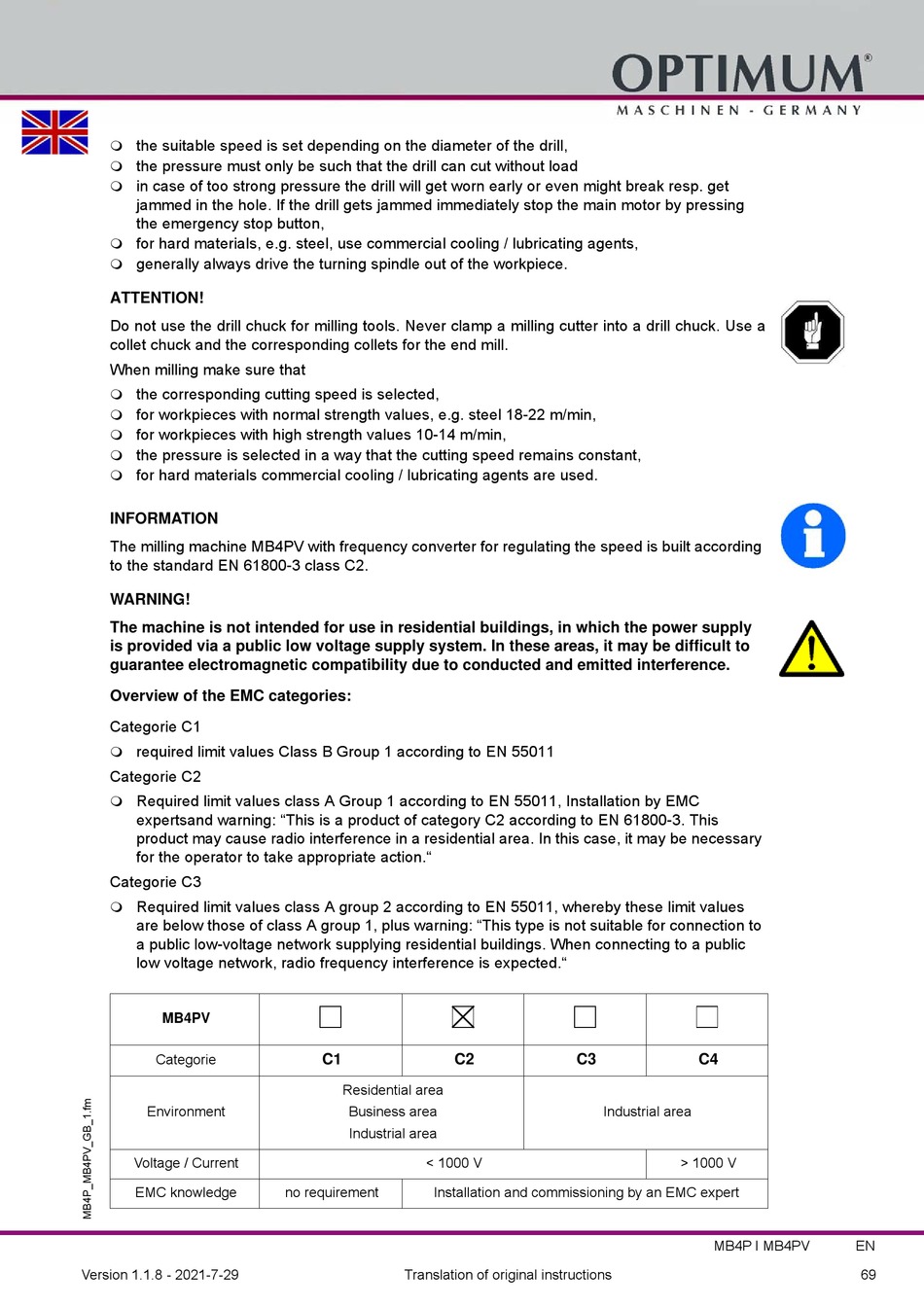

Optimum Opti mill MB 4P Betriebsanleitung Seite 69

the suitable speed is set depending on the diameter of the drill,

the pressure must only be such that the drill can cut without load

in case of too strong pressure the drill will get worn early or even might break resp. get

jammed in the hole. If the drill gets jammed immediately stop the main motor by pressing
the emergency stop button,
for hard materials, e.g. steel, use commercial cooling / lubricating agents,

generally always drive the turning spindle out of the workpiece.

ATTENTION!
Do not use the drill chuck for milling tools. Never clamp a milling cutter into a drill chuck. Use a
collet chuck and the corresponding collets for the end mill.
When milling make sure that
the corresponding cutting speed is selected,

for workpieces with normal strength values, e.g. steel 18-22 m/min,

for workpieces with high strength values 10-14 m/min,

the pressure is selected in a way that the cutting speed remains constant,

for hard materials commercial cooling / lubricating agents are used.

INFORMATION
The milling machine MB4PV with frequency converter for regulating the speed is built according
to the standard EN 61800-3 class C2.
WARNING!
The machine is not intended for use in residential buildings, in which the power supply
is provided via a public low voltage supply system. In these areas, it may be difficult to
guarantee electromagnetic compatibility due to conducted and emitted interference.
Overview of the EMC categories:
Categorie C1
required limit values Class B Group 1 according to EN 55011

Categorie C2
Required limit values class A Group 1 according to EN 55011, Installation by EMC

expertsand warning: "This is a product of category C2 according to EN 61800-3. This
product may cause radio interference in a residential area. In this case, it may be necessary
for the operator to take appropriate action."
Categorie C3
Required limit values class A group 2 according to EN 55011, whereby these limit values

are below those of class A group 1, plus warning: "This type is not suitable for connection to
a public low-voltage network supplying residential buildings. When connecting to a public
low voltage network, radio frequency interference is expected."
MB4PV
Categorie
Environment
Voltage / Current
EMC knowledge
Version 1.1.8 - 2021-7-29
C1 C2
Residential area
Business area
Industrial area
< 1000 V
no requirement Installation and commissioning by an EMC expert
Translation of original instructions
C3 C4
Industrial area
> 1000 V
