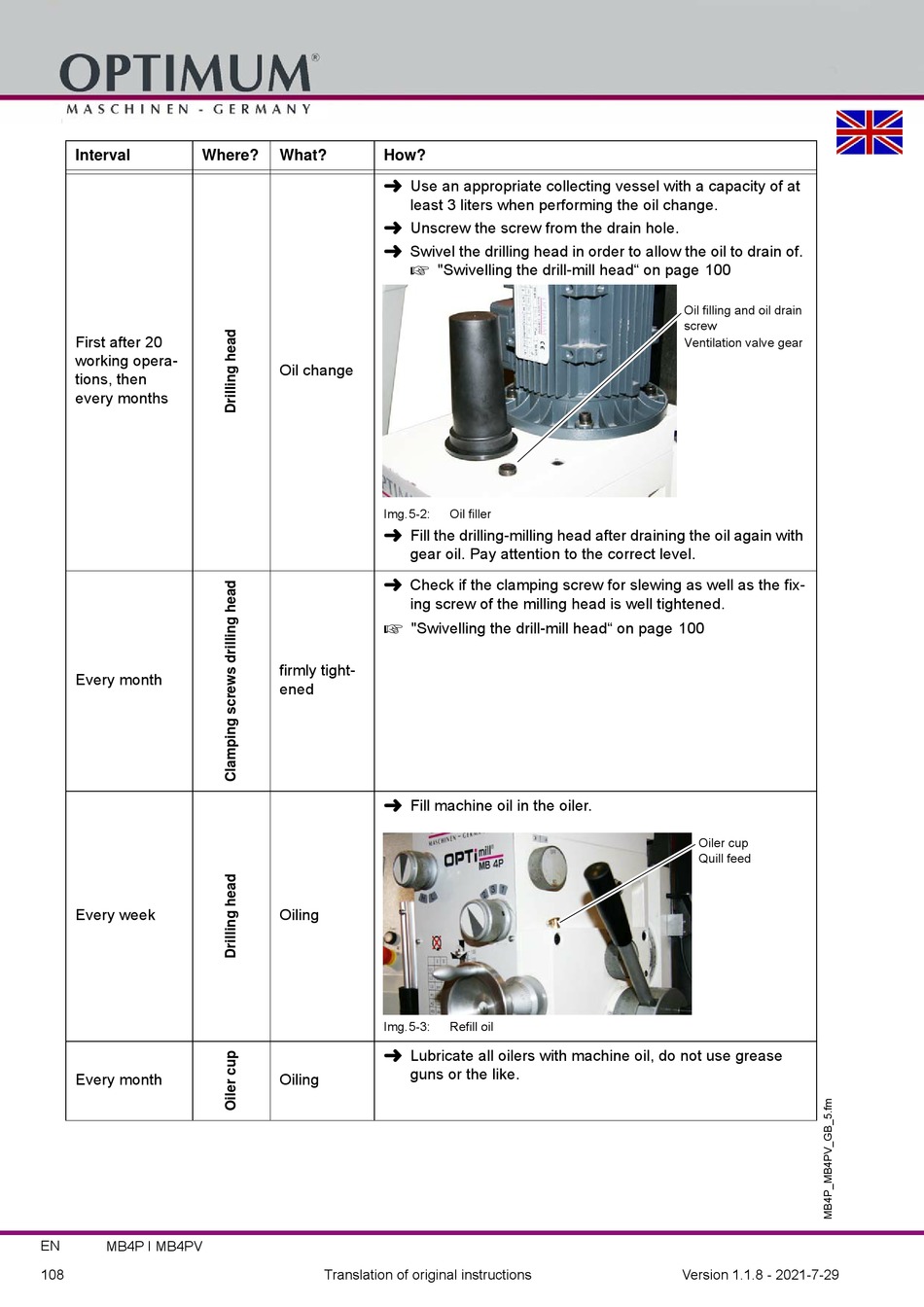

Interval
Where?
First after 20
working opera-
tions, then
every months
Every month
Every week
Every month
EN
MB4P ǀ MB4PV
108
What?
How?
Use an appropriate collecting vessel with a capacity of at
least 3 liters when performing the oil change.
Unscrew the screw from the drain hole.
Swivel the drilling head in order to allow the oil to drain of.
"Swivelling the drill-mill head" on page 100
Oil change
Img.5-2:
Oil filler
Fill the drilling-milling head after draining the oil again with
gear oil. Pay attention to the correct level.
Check if the clamping screw for slewing as well as the fix-
ing screw of the milling head is well tightened.
"Swivelling the drill-mill head" on page 100
firmly tight-
ened
Fill machine oil in the oiler.
Oiling
Img.5-3:
Refill oil
Lubricate all oilers with machine oil, do not use grease
guns or the like.
Oiling
Translation of original instructions
Oil filling and oil drain
screw
Ventilation valve gear
Oiler cup
Quill feed
Version 1.1.8 - 2021-7-29
