c) Checking rudder deflections and motor function
After adjusting the centre position for all rudders, you can check and adjust rudder deflections.
Neutral position
In the neutral position, all the rudders must be in the middle position if the respective joysticks are also in the middle
position. When checking rudder deflections, the motor speed joystick must be in the lowest position to prevent inad-
vertent start-up of the motor (see Figs. 20 - 22).
Aileron control
When pushing the aileron and elevator joystick to the left, the left aileron should deflect upwards and the right aileron
should deflect downwards (see light arrows in Figure 21). In this case, the model raises the right wing and lowers the
left wing.
When pushing the aileron and elevator joystick to the right, the left aileron should deflect downwards and the right
aileron should deflect upwards (see dark arrows in Figure 21). In this case, the model lowers the right wing and raises
the left wing.

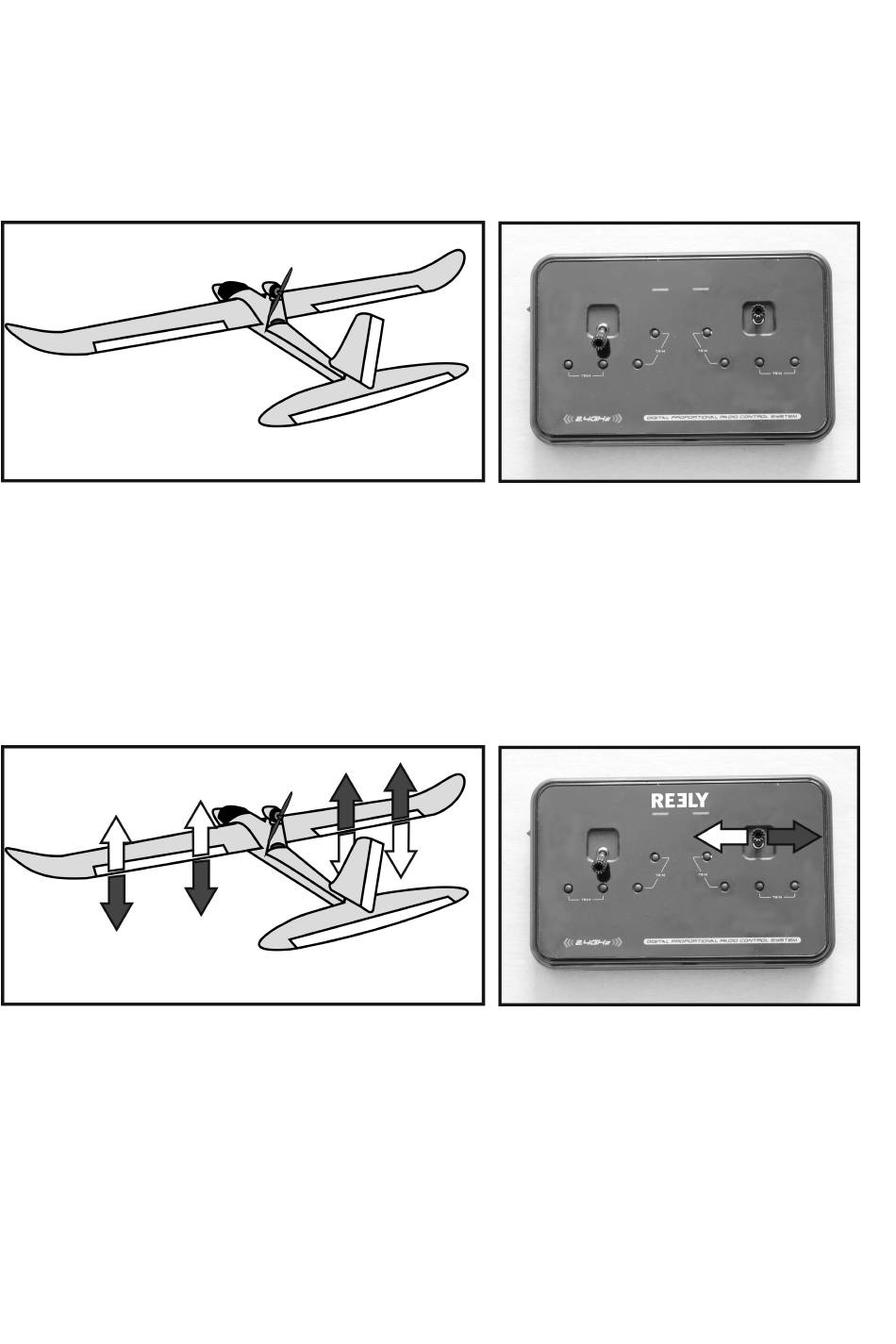

Figure 20
Figure 21
