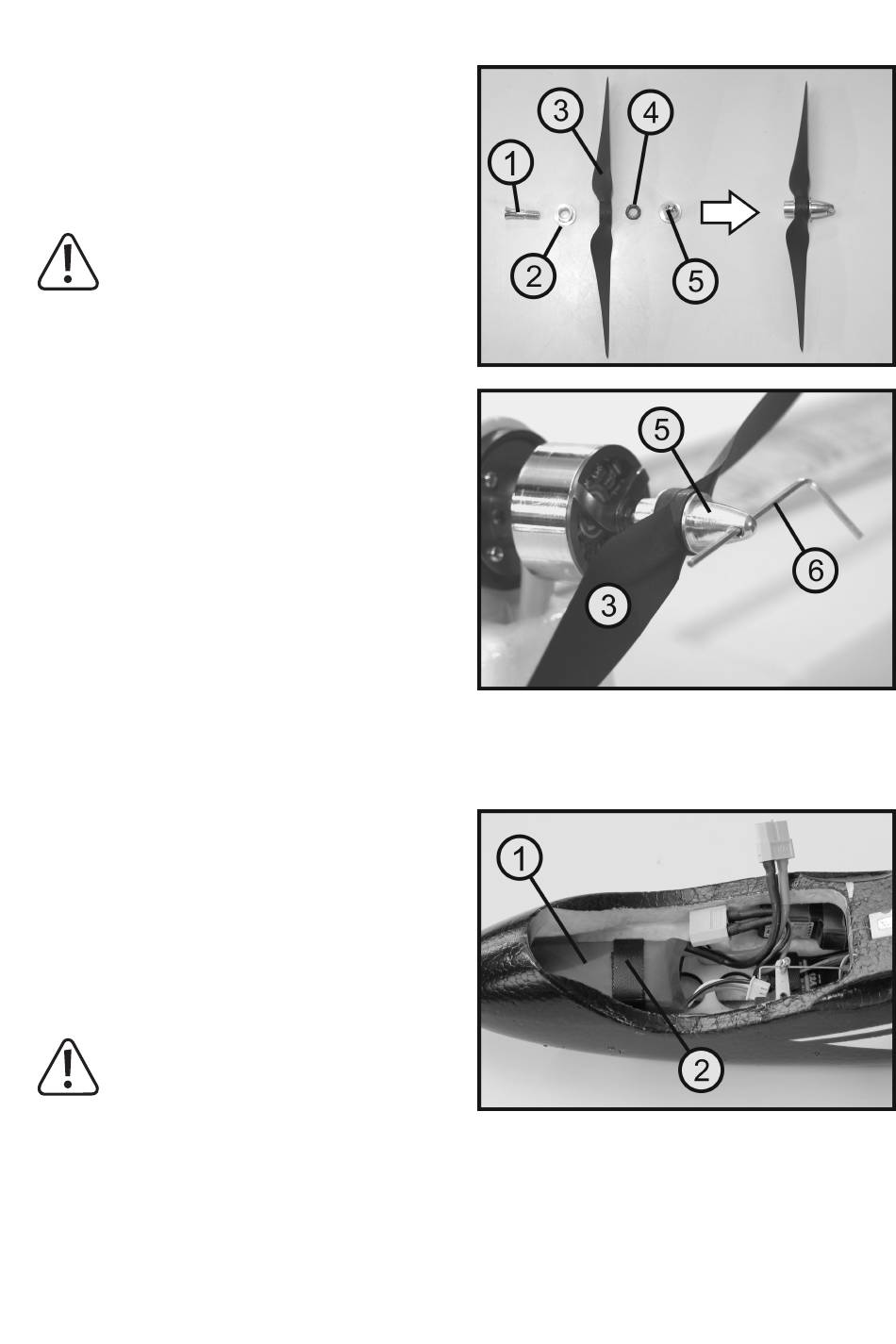

g) Installation of the propeller
The propeller driver must be disassembled before install-
ing the propeller. Use the clamping pin (1) and the clamp-
ing ring (2) to clamp the motor shaft.
To centre the propeller (3), insert an adapter ring (4) with
an inner diameter of 5 mm and an outer diameter of 8 mm
into it. Initially, screw the spinner cap (5) loosely.
Caution, important!
Make sure that the propeller is correctly
aligned! The more curved edges of the propel-
ler blades must point forwards in the direction
of flight, i.e. towards the clamping ring (see il-
lustration of the fully assembled propeller/driver
unit).
Then put the propeller/driver unit onto the motor shaft and
carefully tighten the unit using the hex key (6).
h) Inserting the flight battery
Attach the fleece part of the hook and loop fastener to the
flight battery to prevent it from slipping during operation.
The hook part of the hook and loop fastener must be at-
tached to the battery board.
Then attach the battery with the fleece part to the hook
part and secure it with the hook and loop fastener.
The exact position of the battery is specified in the follow-
ing section.
Important!
Always ensure that the flight battery is correctly
attached. Shifting of the battery in flight can
change the model's centre of gravity.
This can in turn worsen the flight characteristics
to the extent that will render the model uncon-
trollable in the air.
60
Figure 12
Figure 13
