8. Charging the flight battery

The numbers used in these instructions refer to the illustration alongside the text or the illustrations within
the respective section. Therefore, e.g. number 1 or 2 can identify different components depending on the
figure.
Any cross-references to other figures are indicated with the figure number and the corresponding number.
The 2-cell lithium polymer flight battery is charged using the included charger via the balancer connector. It is essential
that you also observe section 7 of these operating instructions.
Important:
The flight battery must not be connected to the model aircraft's flight controller while it is charging. This can
damage the flight controller and interrupt the charging process!

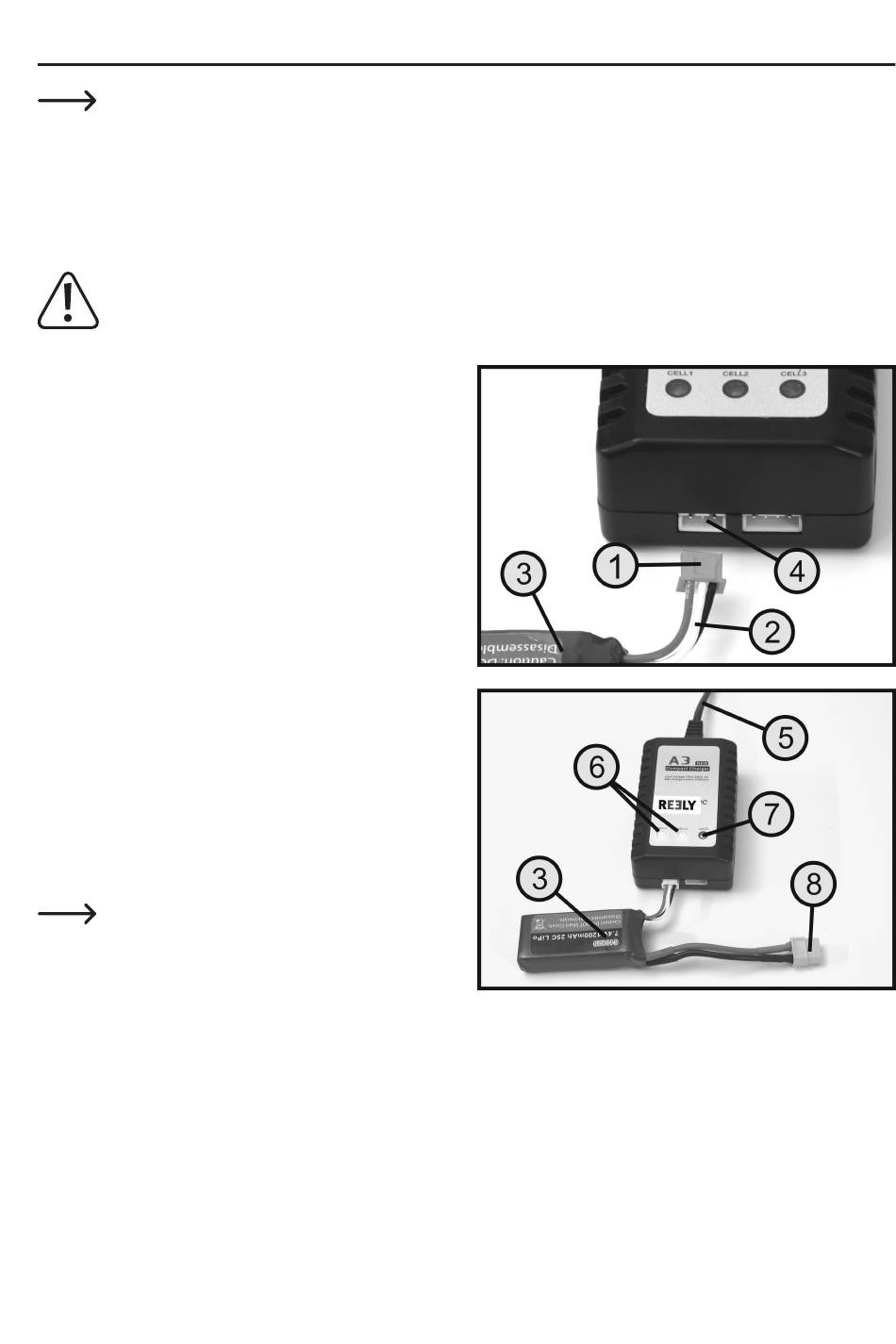

The charging process takes place by connecting the XH
plug (1) of the balancer connection cable (2) of the flight
battery (3) to the left charging socket of the charger (4).
The two locking lugs of the XH plug must point upwards.
Connect the power cord (5) to the charger and insert the
Euro plug of the power cord into a proper mains socket of
the public supply grid.
The two charge control LEDs (6) marked CELL1 and
CELL2 light up red and show the charge status of each of
the two cells during the charging process.
The third LED (7) marked CELL3 glows green steadily, as
the flight battery only has two cells and is connected to the
charging socket for two-cell rechargeable batteries.
As soon as the battery cell is fully charged, the LED of the
charged cell changes from red to green.
When the charge control LEDs of cells 1 and 2 light up
green, this means that the flight battery is fully charged.
Then disconnect the rechargeable battery from the charg-
er and unplug the charger from the mains socket.
It can take up to 2 hours to charge the flight
battery depending on its charge status.
During the flight, the model is powered via the two-pole
cable with the XT60 connector (see Figure 2, no. 8).
52
Figure 2
