e) Checking the tail unit alignment
With the wings in place, you can easily check the orientation of the tail units. To do this, look at your model from behind
from a little distance. The tailplane and tail fin must be aligned at a 90° angle to each other. In addition, the tailplane

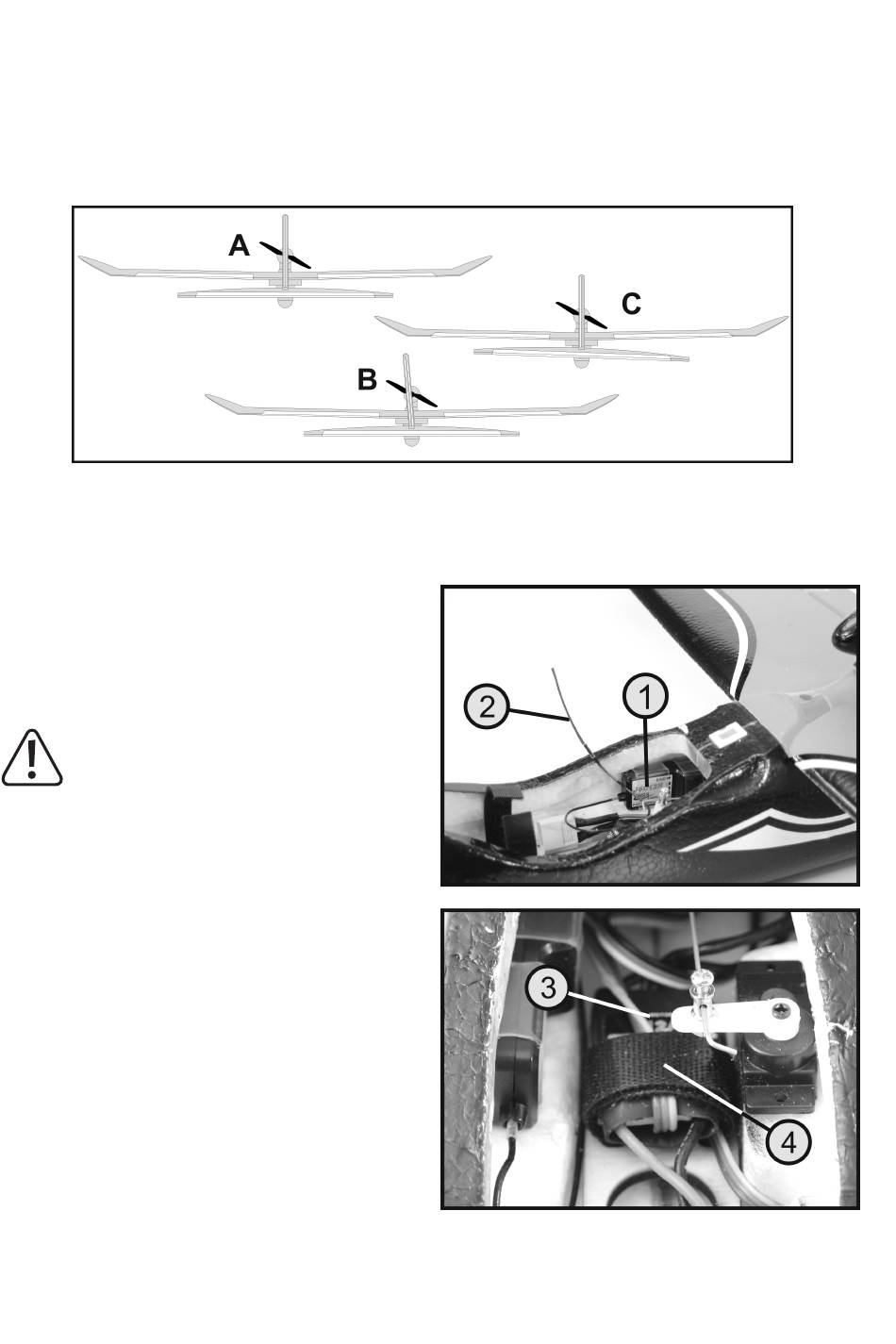

must run parallel to the wing (see Figure 10, sketch A).
An inclined position of the tail fin (see Figure 10, sketch B) or the tailplane (see Figure 10, sketch C) can be corrected
by inserting or underlaying thin cardboard strips.
f) Mounting the receiver and the flight controller
It is recommended that the double-sided adhesive tape be
used to attach the receiver (1) to the inside of the fuselage
side wall.
The antenna (2) is guided to the outside through a small
opening made with the help of a thin wire.
Important!
Do not guide the antenna in the fuselage. The
current-carrying wires can cause radio shad-
ows and thus disturb signal transmission.
The flight controller (3) is attached to the battery board
with the double-sided adhesive tape and additionally se-
cured with the hook and loop fastener (4).
