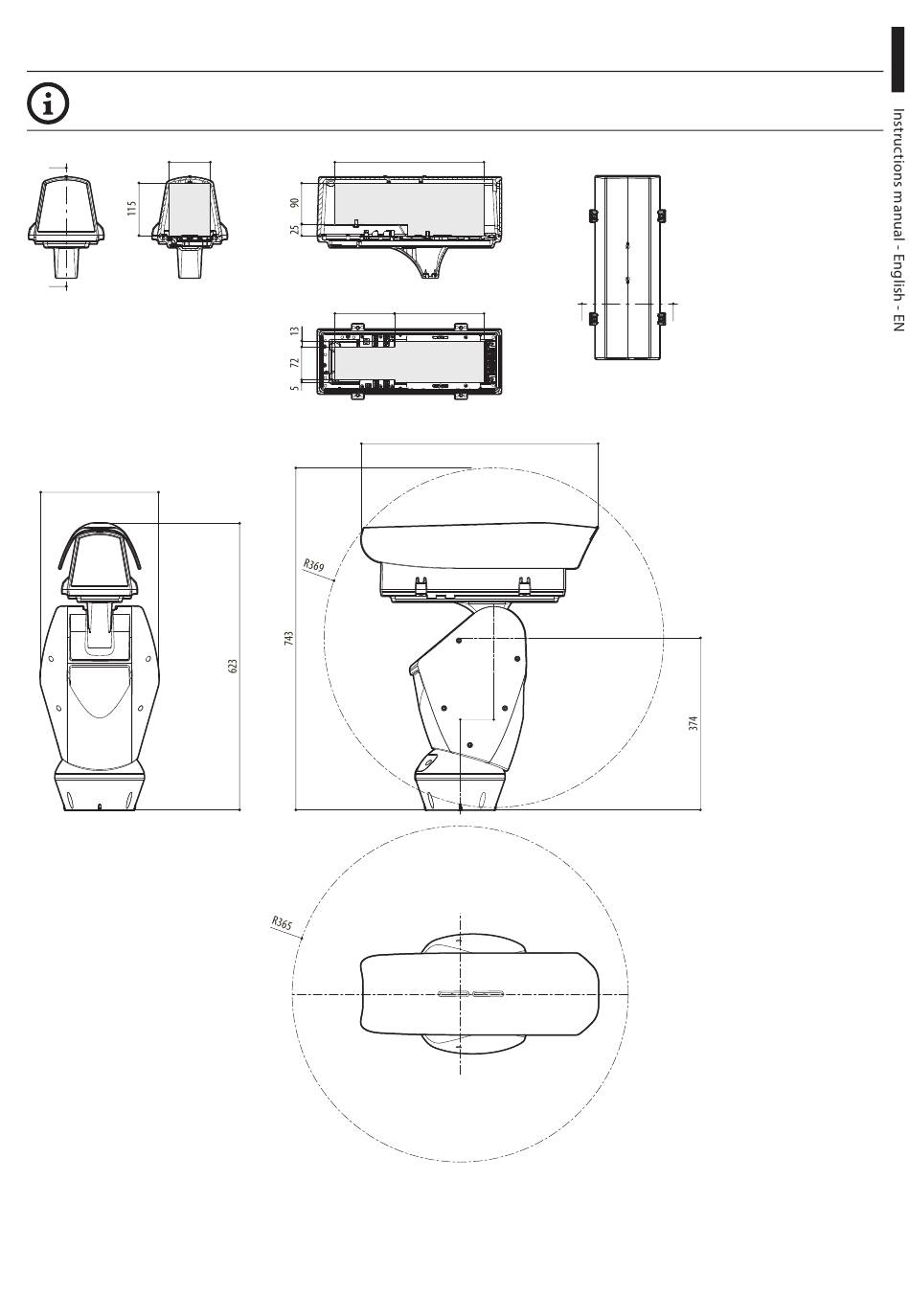

18 Technical drawings

The dimensions of the drawings are in millimetres.
90
B
USABLE
AREA
A - A
B
258
Fig. 86 ULISSE PLUS NETCAM.
MNVCUPTPLUS3_1511_EN
325
USABLE AREA
B - B
130 195
USABLE AREA
514
73
A A
47
