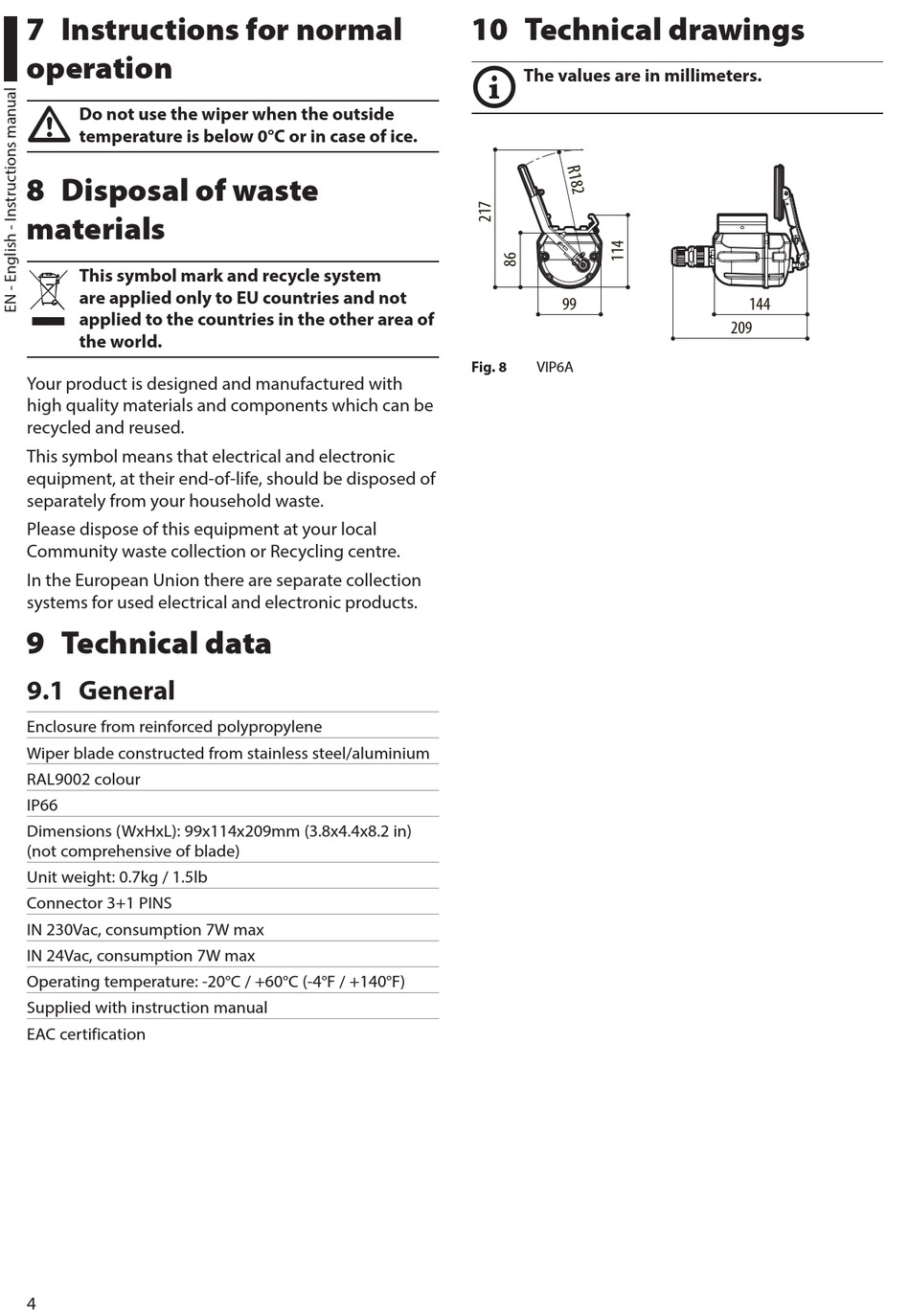

7 Instructions for normal
operation
Do not use the wiper when the outside
h
temperature is below 0°C or in case of ice.
8 Disposal of waste
materials
This symbol mark and recycle system
n
are applied only to EU countries and not
applied to the countries in the other area of
the world.
Your product is designed and manufactured with
high quality materials and components which can be
recycled and reused.
This symbol means that electrical and electronic
equipment, at their end-of-life, should be disposed of
separately from your household waste.
Please dispose of this equipment at your local
Community waste collection or Recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic products.

9 Technical data

9.1 General
Enclosure from reinforced polypropylene
Wiper blade constructed from stainless steel/aluminium
RAL9002 colour
IP66
Dimensions (WxHxL): 99x114x209mm (3.8x4.4x8.2 in)
(not comprehensive of blade)
Unit weight: 0.7kg / 1.5lb
Connector 3+1 PINS
IN 230Vac, consumption 7W max
IN 24Vac, consumption 7W max
Operating temperature: -20°C / +60°C (-4°F / +140°F)
Supplied with instruction manual
EAC certification
4

10 Technical drawings

The values are in millimeters.
j
99
Fig. 8
VIP6A
144
209
