Beispiel 2:
N10 T1 M6
N20 G17 G0 X15 Y-30 Z100 S2500 M3
N30 G81(IX=Z,SL2,DT-2.5,DW1,RL10) F300 ; Zyklusdefinition + Vorschub
N40 G114(MSP15,SSP-30,MHD22,SHD14,NH5) ; Zyklusdefinition
N50 G80 Z100 M5
5.6
G115 Lochmuster Matrix

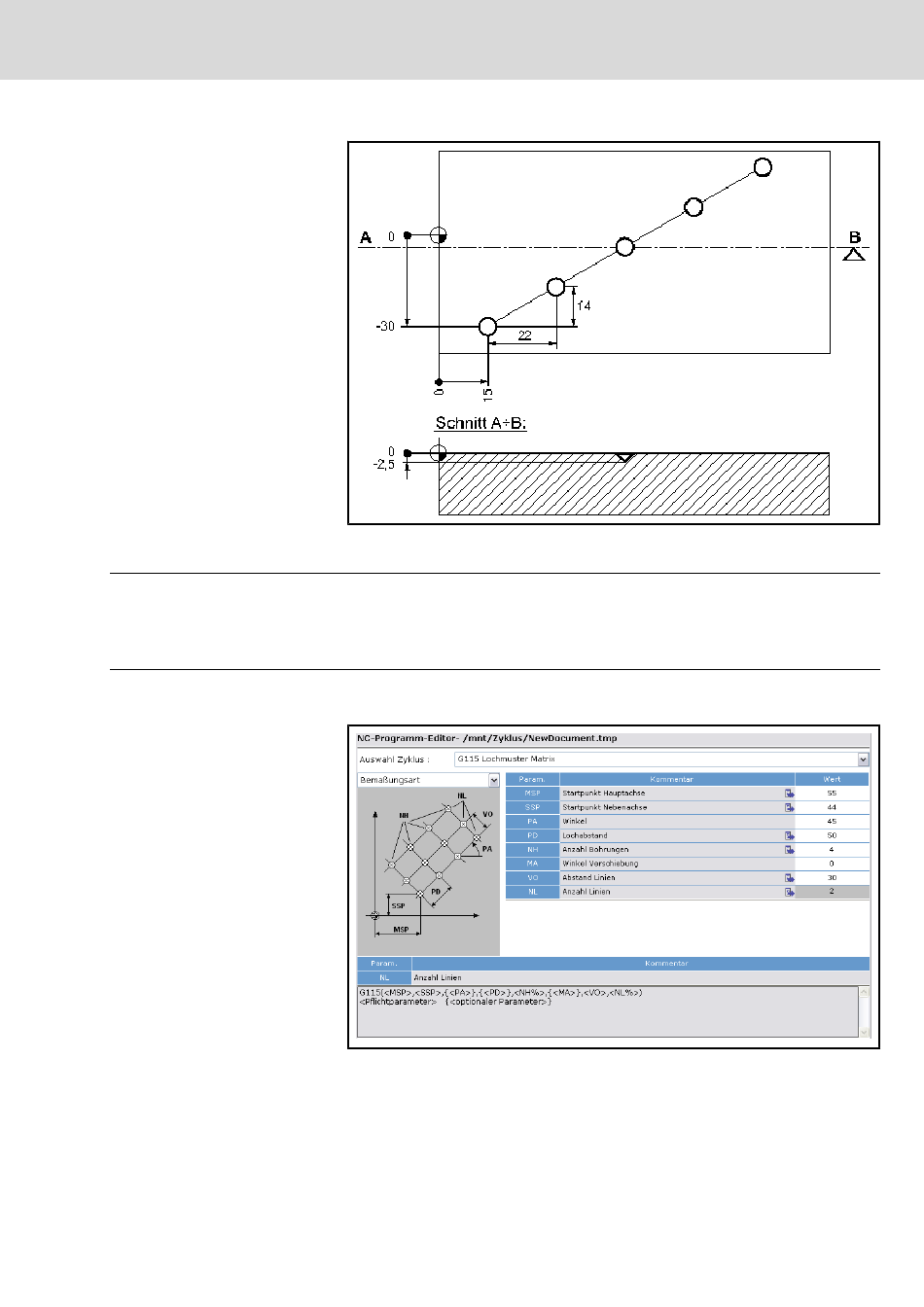

Abb.5-12:
Beispiel G114 Lochmuster Linie ("DIS")
Programm:
; Werkzeugwechsel
; Vorpositionieren
; Wegfahren Modalaufruf löschen
Abb.5-13:
G115 Lochmuster Matrix
