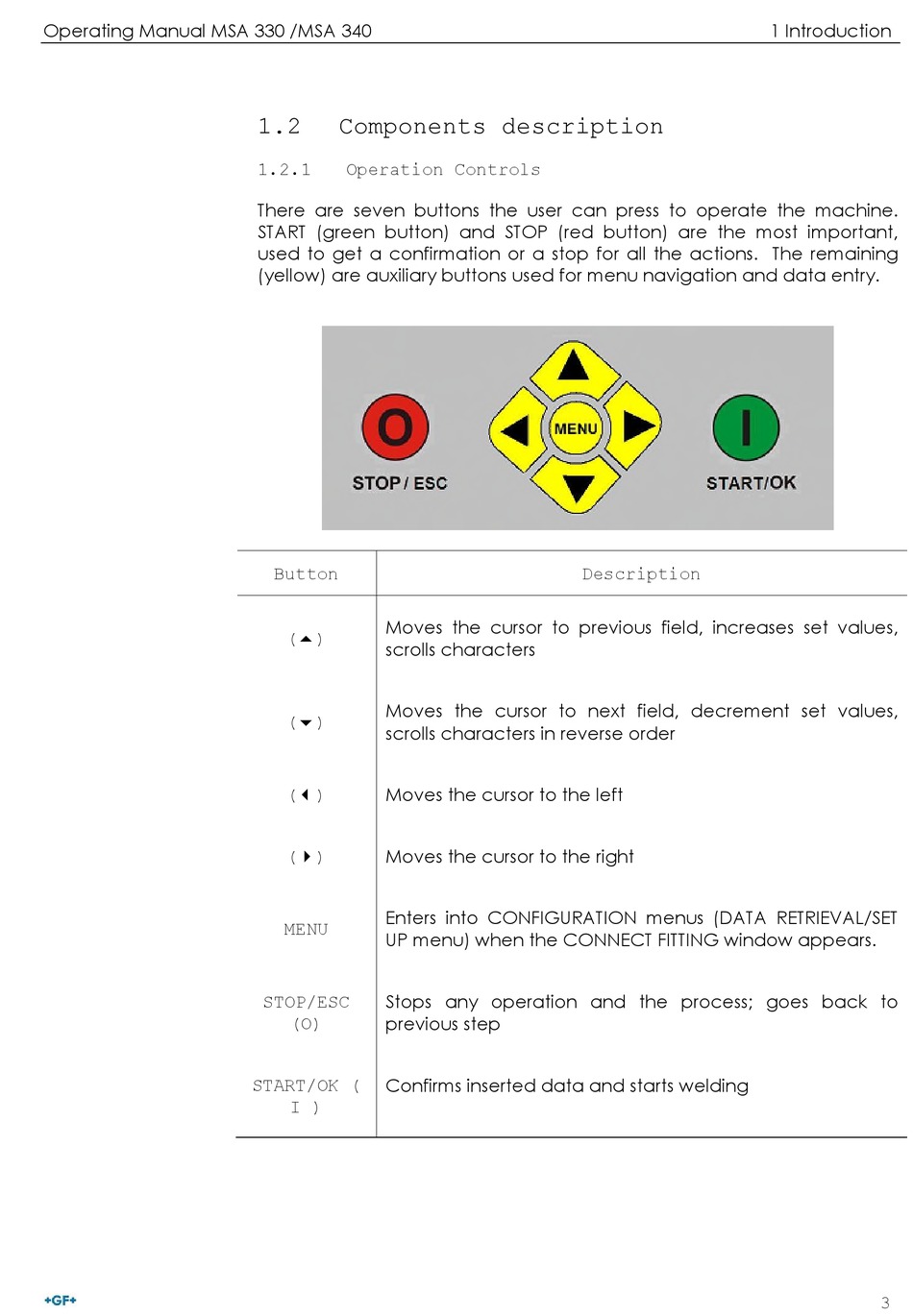

Operating Manual MSA 330 /MSA 340
1.2

Components description

1.2.1

Operation Controls

There are seven buttons the user can press to operate the machine.
START (green button) and STOP (red button) are the most important,
used to get a confirmation or a stop for all the actions. The remaining
(yellow) are auxiliary buttons used for menu navigation and data entry.
Button
Moves the cursor to previous field, increases set values,
()
scrolls characters
Moves the cursor to next field, decrement set values,
()
scrolls characters in reverse order
Moves the cursor to the left
()
Moves the cursor to the right
()
Enters into CONFIGURATION menus (DATA RETRIEVAL/SET
MENU
UP menu) when the CONNECT FITTING window appears.
Stops any operation and the process; goes back to
STOP/ESC
previous step
(O)
Confirms inserted data and starts welding
START/OK (
I )
Description
1 Introduction
3
