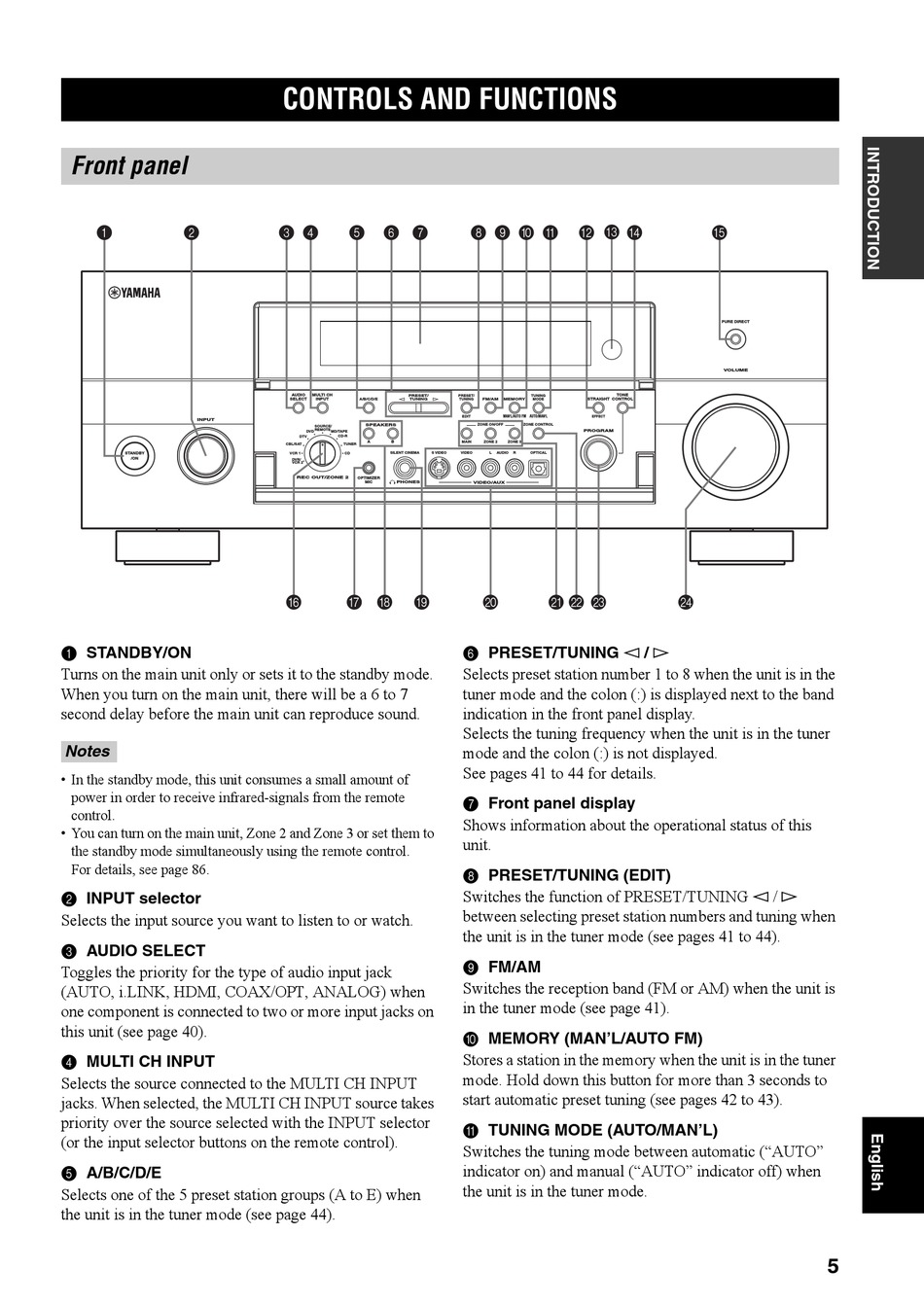

Front panel

1 2
INPUT
STANDBY
/ON
1 STANDBY/ON
Turns on the main unit only or sets it to the standby mode.
When you turn on the main unit, there will be a 6 to 7
second delay before the main unit can reproduce sound.
Notes
• In the standby mode, this unit consumes a small amount of
power in order to receive infrared-signals from the remote
control.
• You can turn on the main unit, Zone 2 and Zone 3 or set them to
the standby mode simultaneously using the remote control.
For details, see page 86.
2 INPUT selector
Selects the input source you want to listen to or watch.
3 AUDIO SELECT
Toggles the priority for the type of audio input jack
(AUTO, i.LINK, HDMI, COAX/OPT, ANALOG) when
one component is connected to two or more input jacks on
this unit (see page 40).
4 MULTI CH INPUT
Selects the source connected to the MULTI CH INPUT
jacks. When selected, the MULTI CH INPUT source takes
priority over the source selected with the INPUT selector
(or the input selector buttons on the remote control).
5 A/B/C/D/E
Selects one of the 5 preset station groups (A to E) when
the unit is in the tuner mode (see page 44).

CONTROLS AND FUNCTIONS

3 4 5 6 7
AUDIO MULTI CH
PRESET/
SELECT INPUT
A/B/C/D/E TUNING
SPEAKERS
SOURCE/
REMOTE
DVD MD/TAPE
DTV CD-R
A B
CBL/SAT TUNER
VCR 1 CD SILENT CINEMA S VIDEO
DVR/
VCR 2
REC OUT/ZONE 2
OPTIMIZER
MIC PHONES
F G H I
C
8 9 0 A B D
TONE
PRESET/ TUNING
STRAIGHT CONTROL
TUNING FM/AM MEMORY MODE
EDIT MAN'L/AUTO FM AUTO/MAN'L EFFECT
ZONE ON/OFF ZONE CONTROL
PROGRAM
MAIN ZONE 2 ZONE 3
VIDEO L AUDIO R OPTICAL
VIDEO/AUX
J K L M
6 PRESET/TUNING l / h
Selects preset station number 1 to 8 when the unit is in the
tuner mode and the colon (:) is displayed next to the band
indication in the front panel display.
Selects the tuning frequency when the unit is in the tuner
mode and the colon (:) is not displayed.
See pages 41 to 44 for details.
7 Front panel display
Shows information about the operational status of this
unit.
8 PRESET/TUNING (EDIT)
Switches the function of PRESET/TUNING l / h
between selecting preset station numbers and tuning when
the unit is in the tuner mode (see pages 41 to 44).
9 FM/AM
Switches the reception band (FM or AM) when the unit is
in the tuner mode (see page 41).
0 MEMORY (MAN'L/AUTO FM)
Stores a station in the memory when the unit is in the tuner
mode. Hold down this button for more than 3 seconds to
start automatic preset tuning (see pages 42 to 43).
A TUNING MODE (AUTO/MAN'L)
Switches the tuning mode between automatic ("AUTO"
indicator on) and manual ("AUTO" indicator off) when
the unit is in the tuner mode.
CONTROLS AND FUNCTIONS
E
