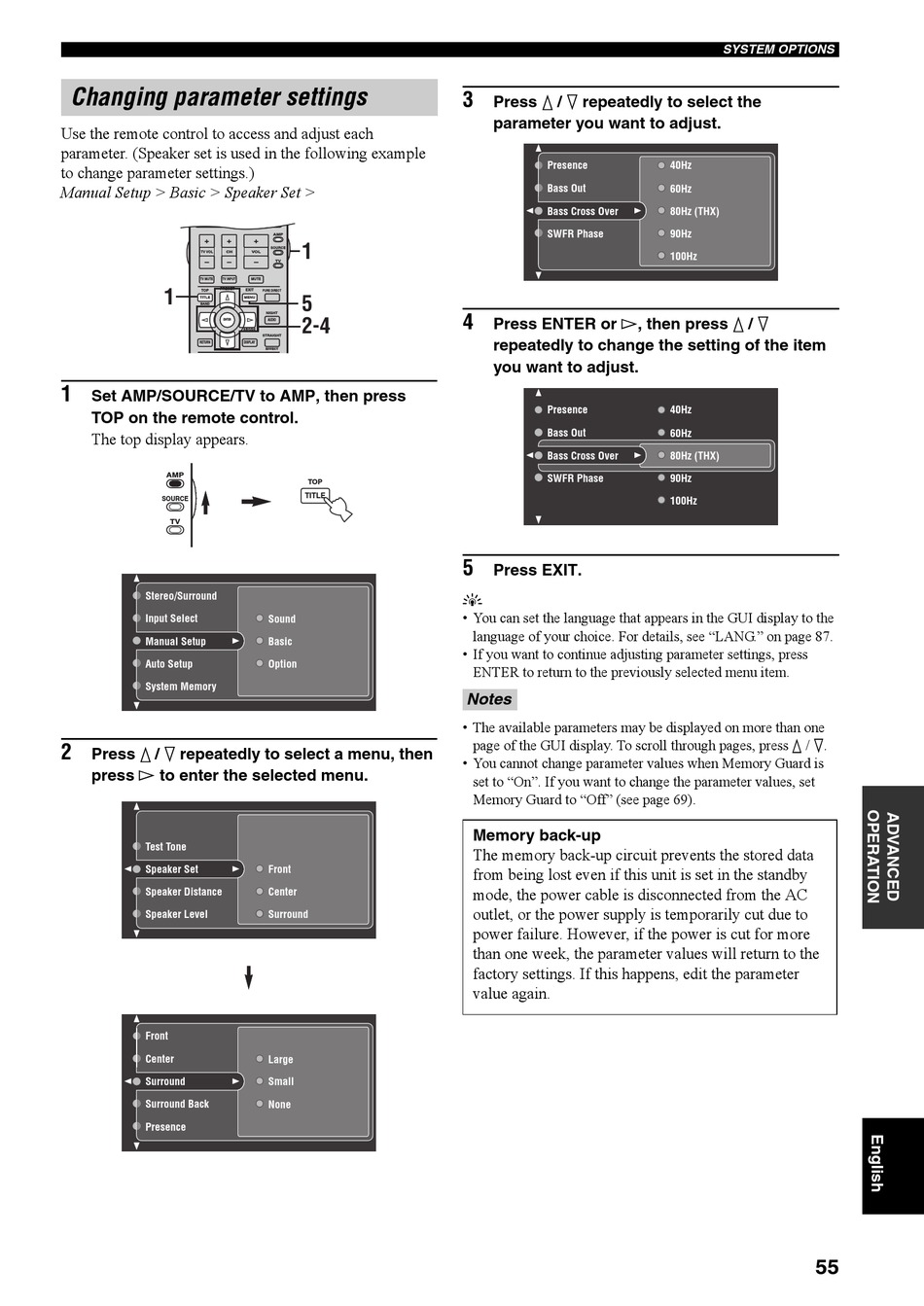

Changing Parameter Settings; Memory Back-Up - Yamaha RX-V4600 Bedienungsanleitung

Changing parameter settings

Use the remote control to access and adjust each
parameter. (Speaker set is used in the following example
to change parameter settings.)
Manual Setup > Basic > Speaker Set >
+ +
TV VOL CH
– –
TV MUTE TV INPUT
1 PRESET
TOP
TITLE
BAND
ENTER
RETURN
1
Set AMP/SOURCE/TV to AMP, then press
TOP on the remote control.
The top display appears.
AMP
SOURCE
TV
Stereo/Surround
Input Select
Manual Setup
Auto Setup
System Memory
2
Press k / n repeatedly to select a menu, then
press h to enter the selected menu.
Test Tone
Speaker Set
Speaker Distance
Speaker Level
Front
Center
Surround
Surround Back
Presence
AMP
+
1
SOURCE
VOL
–
TV
MUTE
EXIT PURE DIRECT
MENU 5
PRG SELECT
NIGHT
2-4
AUDIO
A/B/C/D/E
STRAIGHT
DISPLAY
EFFECT
TOP
TITLE
Sound
Basic
Option
Front
Center
Surround
Large
Small
None
3
Press k / n repeatedly to select the
parameter you want to adjust.
Presence
Bass Out
Bass Cross Over
SWFR Phase
4
Press ENTER or h, then press k / n
repeatedly to change the setting of the item
you want to adjust.
Presence
Bass Out
Bass Cross Over
SWFR Phase
5
Press EXIT.
y
• You can set the language that appears in the GUI display to the
language of your choice. For details, see "LANG." on page 87.
• If you want to continue adjusting parameter settings, press
ENTER to return to the previously selected menu item.
Notes
• The available parameters may be displayed on more than one
page of the GUI display. To scroll through pages, press k / n.
• You cannot change parameter values when Memory Guard is
set to "On". If you want to change the parameter values, set
Memory Guard to "Off" (see page 69).

Memory back-up

The memory back-up circuit prevents the stored data
from being lost even if this unit is set in the standby
mode, the power cable is disconnected from the AC
outlet, or the power supply is temporarily cut due to
power failure. However, if the power is cut for more
than one week, the parameter values will return to the
factory settings. If this happens, edit the parameter
value again.
SYSTEM OPTIONS
40Hz
60Hz
80Hz (THX)
90Hz
100Hz
40Hz
60Hz
80Hz (THX)
90Hz
100Hz
55
