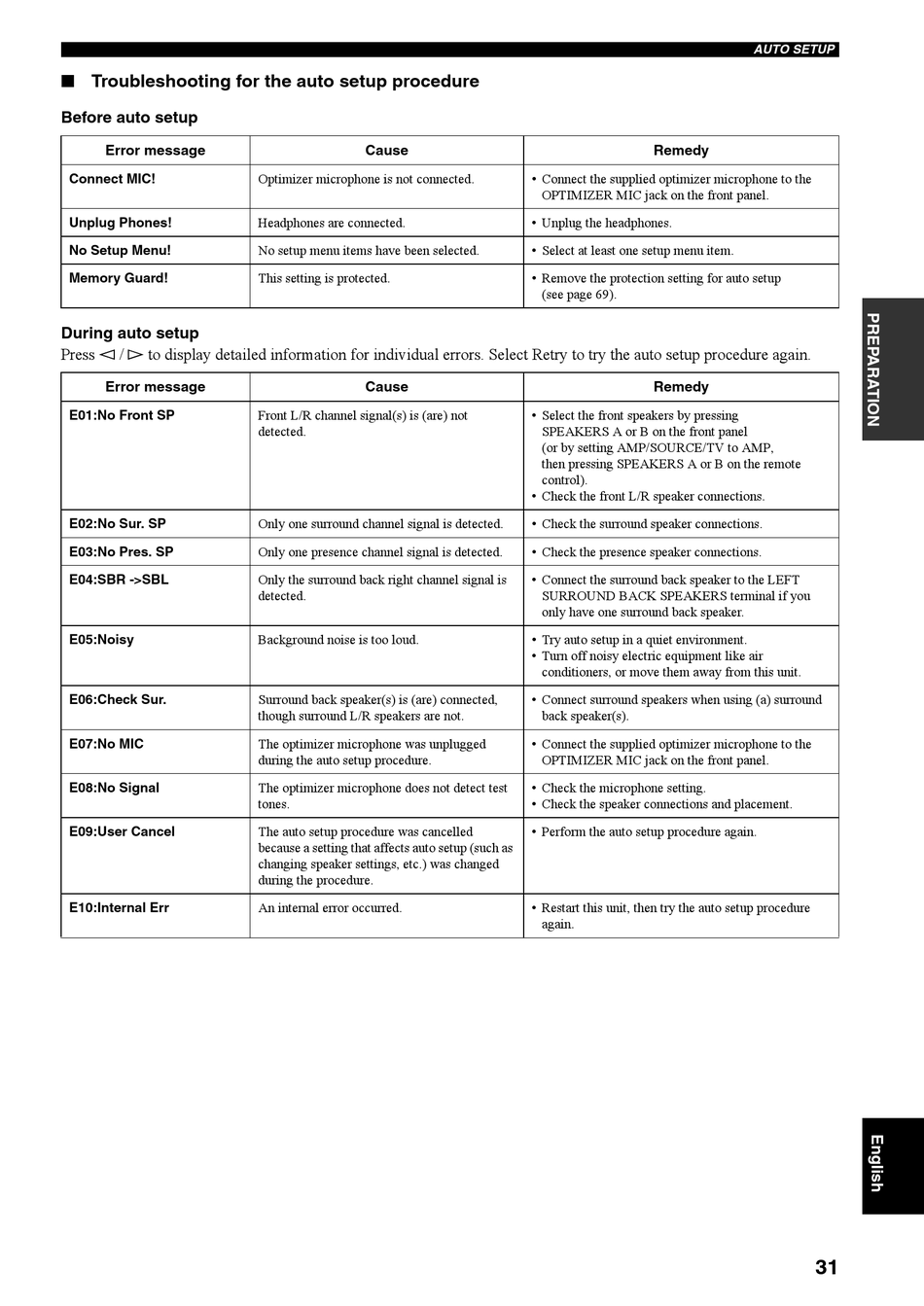

■ Troubleshooting for the auto setup procedure
Before auto setup
Error message
Connect MIC!
Unplug Phones!
No Setup Menu!
Memory Guard!
During auto setup
Press l / h to display detailed information for individual errors. Select Retry to try the auto setup procedure again.
Error message
E01:No Front SP
E02:No Sur. SP
E03:No Pres. SP
E04:SBR ->SBL
E05:Noisy
E06:Check Sur.
E07:No MIC
E08:No Signal
E09:User Cancel
E10:Internal Err
Cause
Optimizer microphone is not connected.
Headphones are connected.
No setup menu items have been selected.
This setting is protected.
Cause
Front L/R channel signal(s) is (are) not
detected.
Only one surround channel signal is detected.
Only one presence channel signal is detected.
Only the surround back right channel signal is
detected.
Background noise is too loud.
Surround back speaker(s) is (are) connected,
though surround L/R speakers are not.
The optimizer microphone was unplugged
during the auto setup procedure.
The optimizer microphone does not detect test
tones.
The auto setup procedure was cancelled
because a setting that affects auto setup (such as
changing speaker settings, etc.) was changed
during the procedure.
An internal error occurred.
Remedy
• Connect the supplied optimizer microphone to the
OPTIMIZER MIC jack on the front panel.
• Unplug the headphones.
• Select at least one setup menu item.
• Remove the protection setting for auto setup
(see page 69).
Remedy
• Select the front speakers by pressing
SPEAKERS A or B on the front panel
(or by setting AMP/SOURCE/TV to AMP,
then pressing SPEAKERS A or B on the remote
control).
• Check the front L/R speaker connections.
• Check the surround speaker connections.
• Check the presence speaker connections.
• Connect the surround back speaker to the LEFT
SURROUND BACK SPEAKERS terminal if you
only have one surround back speaker.
• Try auto setup in a quiet environment.
• Turn off noisy electric equipment like air
conditioners, or move them away from this unit.
• Connect surround speakers when using (a) surround
back speaker(s).
• Connect the supplied optimizer microphone to the
OPTIMIZER MIC jack on the front panel.
• Check the microphone setting.
• Check the speaker connections and placement.
• Perform the auto setup procedure again.
• Restart this unit, then try the auto setup procedure
again.
AUTO SETUP
31
