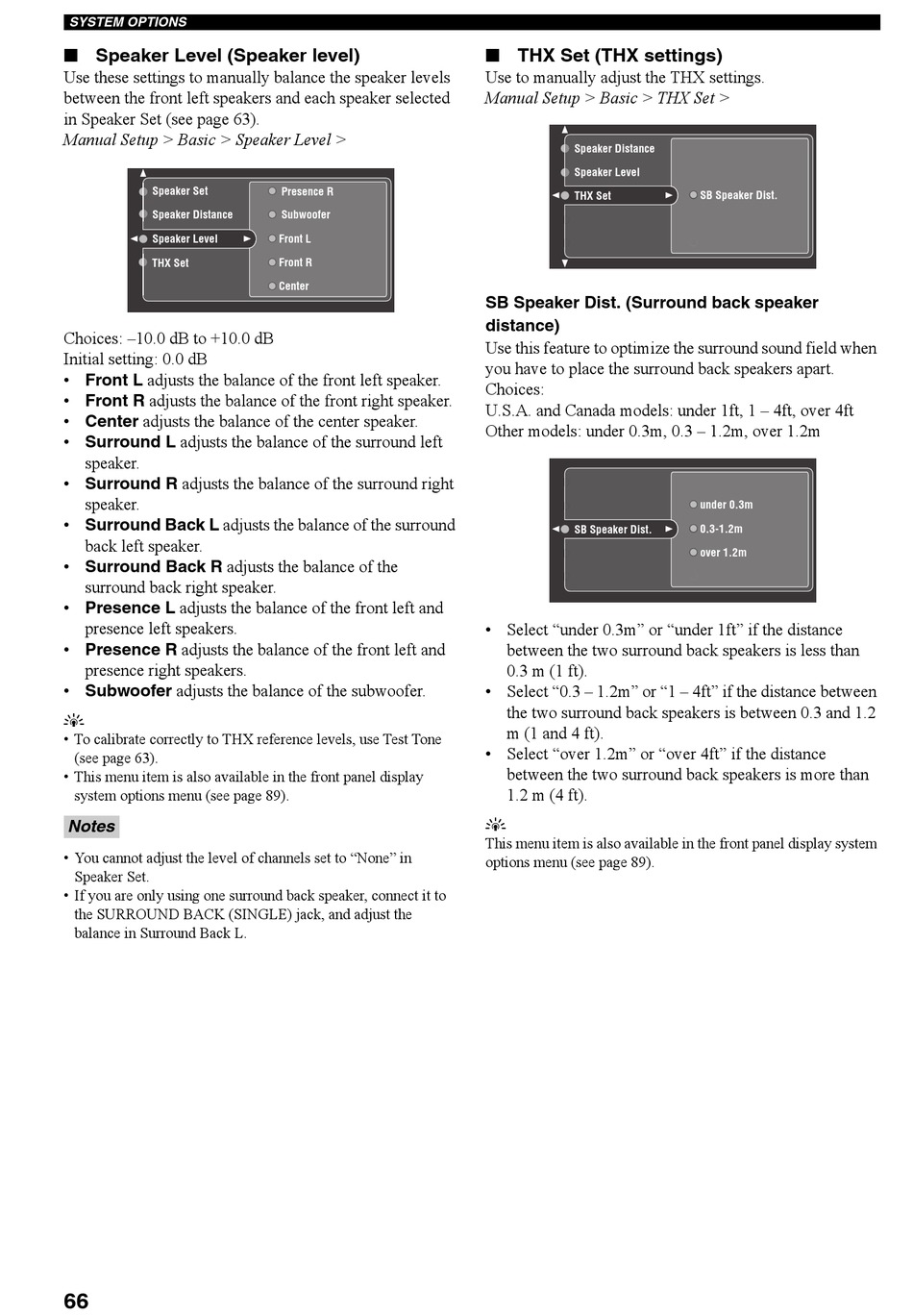

SYSTEM OPTIONS
■ Speaker Level (Speaker level)
Use these settings to manually balance the speaker levels
between the front left speakers and each speaker selected
in Speaker Set (see page 63).
Manual Setup > Basic > Speaker Level >
Speaker Set
Speaker Distance
Speaker Level
THX Set
Choices: –10.0 dB to +10.0 dB
Initial setting: 0.0 dB
• Front L adjusts the balance of the front left speaker.
• Front R adjusts the balance of the front right speaker.
• Center adjusts the balance of the center speaker.
• Surround L adjusts the balance of the surround left
speaker.
• Surround R adjusts the balance of the surround right
speaker.
• Surround Back L adjusts the balance of the surround
back left speaker.
• Surround Back R adjusts the balance of the
surround back right speaker.
• Presence L adjusts the balance of the front left and
presence left speakers.
• Presence R adjusts the balance of the front left and
presence right speakers.
• Subwoofer adjusts the balance of the subwoofer.
y
• To calibrate correctly to THX reference levels, use Test Tone
(see page 63).
• This menu item is also available in the front panel display
system options menu (see page 89).
Notes
• You cannot adjust the level of channels set to "None" in
Speaker Set.
• If you are only using one surround back speaker, connect it to
the SURROUND BACK (SINGLE) jack, and adjust the
balance in Surround Back L.
66
Presence R
Subwoofer
Front L
Front R
Center
■ THX Set (THX settings)
Use to manually adjust the THX settings.
Manual Setup > Basic > THX Set >
Speaker Distance
Speaker Level
THX Set
Information
Input Mode
SB Speaker Dist. (Surround back speaker
distance)
Use this feature to optimize the surround sound field when
you have to place the surround back speakers apart.
Choices:
U.S.A. and Canada models: under 1ft, 1 – 4ft, over 4ft
Other models: under 0.3m, 0.3 – 1.2m, over 1.2m
Input Assign
Support Audio
SB Speaker Dist.
Information
Input Mode
• Select "under 0.3m" or "under 1ft" if the distance
between the two surround back speakers is less than
0.3 m (1 ft).
• Select "0.3 – 1.2m" or "1 – 4ft" if the distance between
the two surround back speakers is between 0.3 and 1.2
m (1 and 4 ft).
• Select "over 1.2m" or "over 4ft" if the distance
between the two surround back speakers is more than
1.2 m (4 ft).
y
This menu item is also available in the front panel display system
options menu (see page 89).
Dimmer Dimmer
Speaker B Speaker B
SB Speaker Dist.
Output
Zone 3 Volume
Dimmer Dimmer
under 0.3m
0.3-1.2m
over 1.2m
Zone 3 Volume
