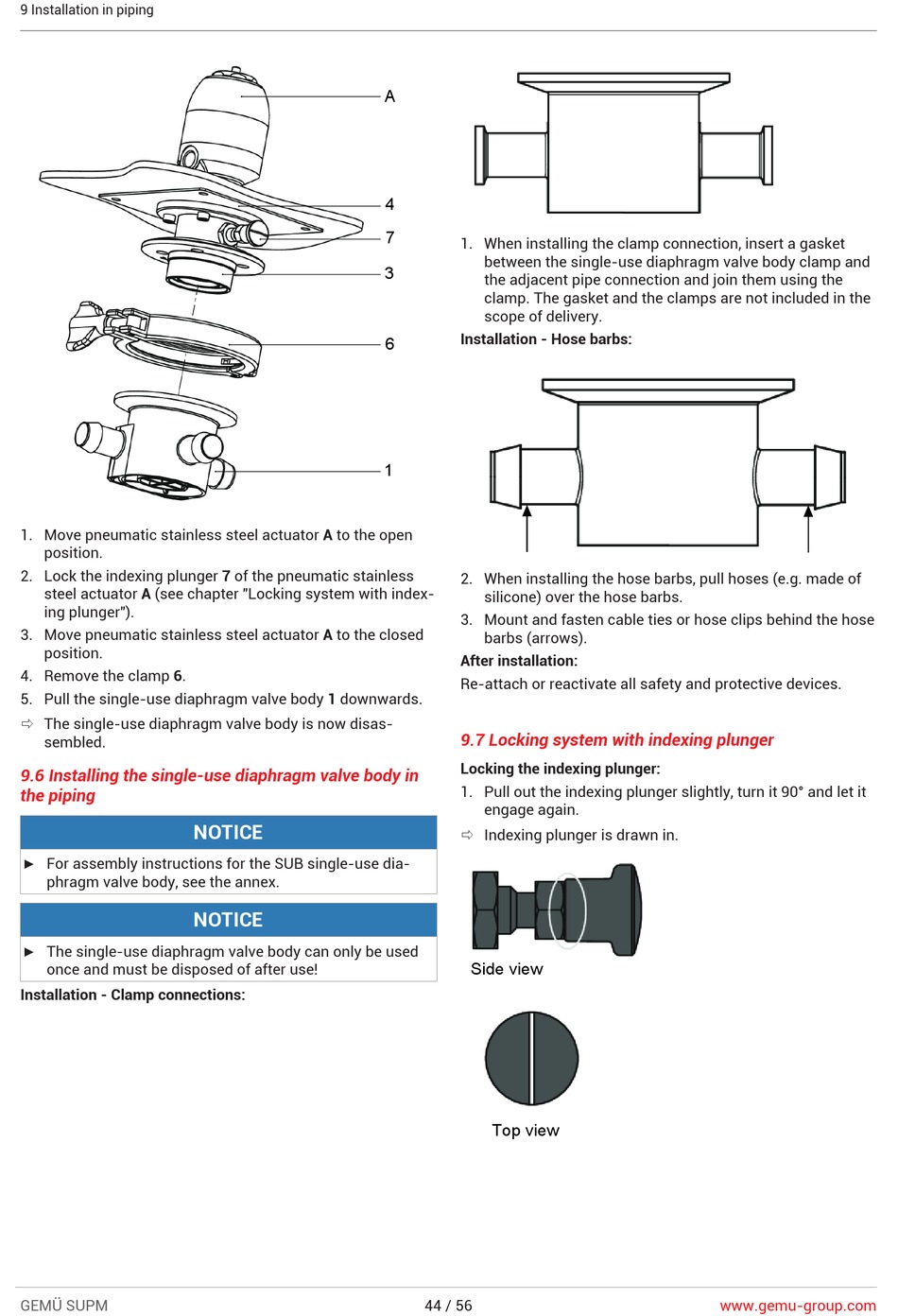

9 Installation in piping
1. Move pneumatic stainless steel actuator A to the open
position.
2. Lock the indexing plunger 7 of the pneumatic stainless
steel actuator A (see chapter "Locking system with index-
ing plunger").
3. Move pneumatic stainless steel actuator A to the closed
position.
4. Remove the clamp 6.
5. Pull the single-use diaphragm valve body 1 downwards.
ð The single-use diaphragm valve body is now disas-
sembled.
9.6 Installing the single-use diaphragm valve body in
the piping
▶ For assembly instructions for the SUB single-use dia-
phragm valve body, see the annex.
▶ The single-use diaphragm valve body can only be used
once and must be disposed of after use!
Installation - Clamp connections:
GEMÜ SUPM
NOTICE
NOTICE
A
4
7
1. When installing the clamp connection, insert a gasket
between the single-use diaphragm valve body clamp and
3
the adjacent pipe connection and join them using the
clamp. The gasket and the clamps are not included in the
scope of delivery.
Installation - Hose barbs:
6
1
2. When installing the hose barbs, pull hoses (e.g. made of
silicone) over the hose barbs.
3. Mount and fasten cable ties or hose clips behind the hose
barbs (arrows).
After installation:
Re-attach or reactivate all safety and protective devices.
9.7 Locking system with indexing plunger
Locking the indexing plunger:
1. Pull out the indexing plunger slightly, turn it 90° and let it
engage again.
ð Indexing plunger is drawn in.

Side view

Top view
