9 Installation in piping

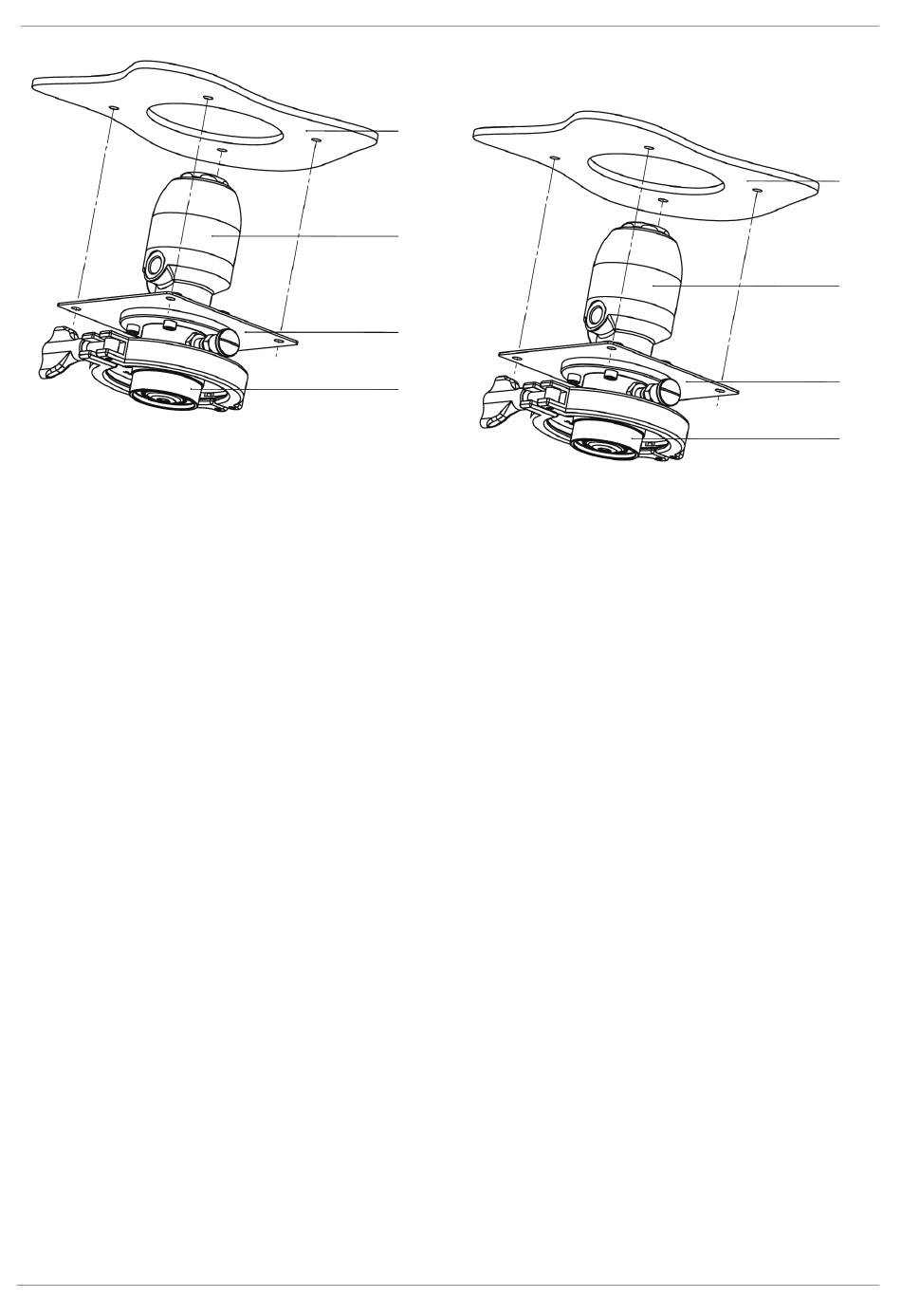

Fig. 2: Assembling the pneumatic stainless steel actuator in
the housing
3. Guide the stainless steel actuator A through the recess of
the housing 5 from below. The mounting plate 4 of the
pneumatic stainless steel actuator A must lie flush on the
housing 5.
4. Connect the mounting plate 4 and housing 5 using suit-
able bolts and washers (not included in the scope of de-
livery).
5. Connect the control medium line and, if necessary, attach
accessories to the pneumatic stainless steel actuator A.
GEMÜ SUPM
9.3 Disassembling the pneumatic stainless steel
actuator – housing
5
A
4
3
Fig. 3: Disassembling the pneumatic stainless steel actuator
– housing
1. Depressurize the pneumatic stainless steel actuator A.
2. Remove the single-use diaphragm valve body 1.
3. Disconnect the control medium line and remove any ac-
cessories fitted from the pneumatic stainless steel actu-
ator A.
4. Undo the bolts between the mounting plate 4 and the
housing 5.
5. Pull the pneumatic stainless steel actuator A downwards
through the recess of the housing 5.
42 / 56
5
A
4
3
