7 Dimensions

7.2 Body dimensions

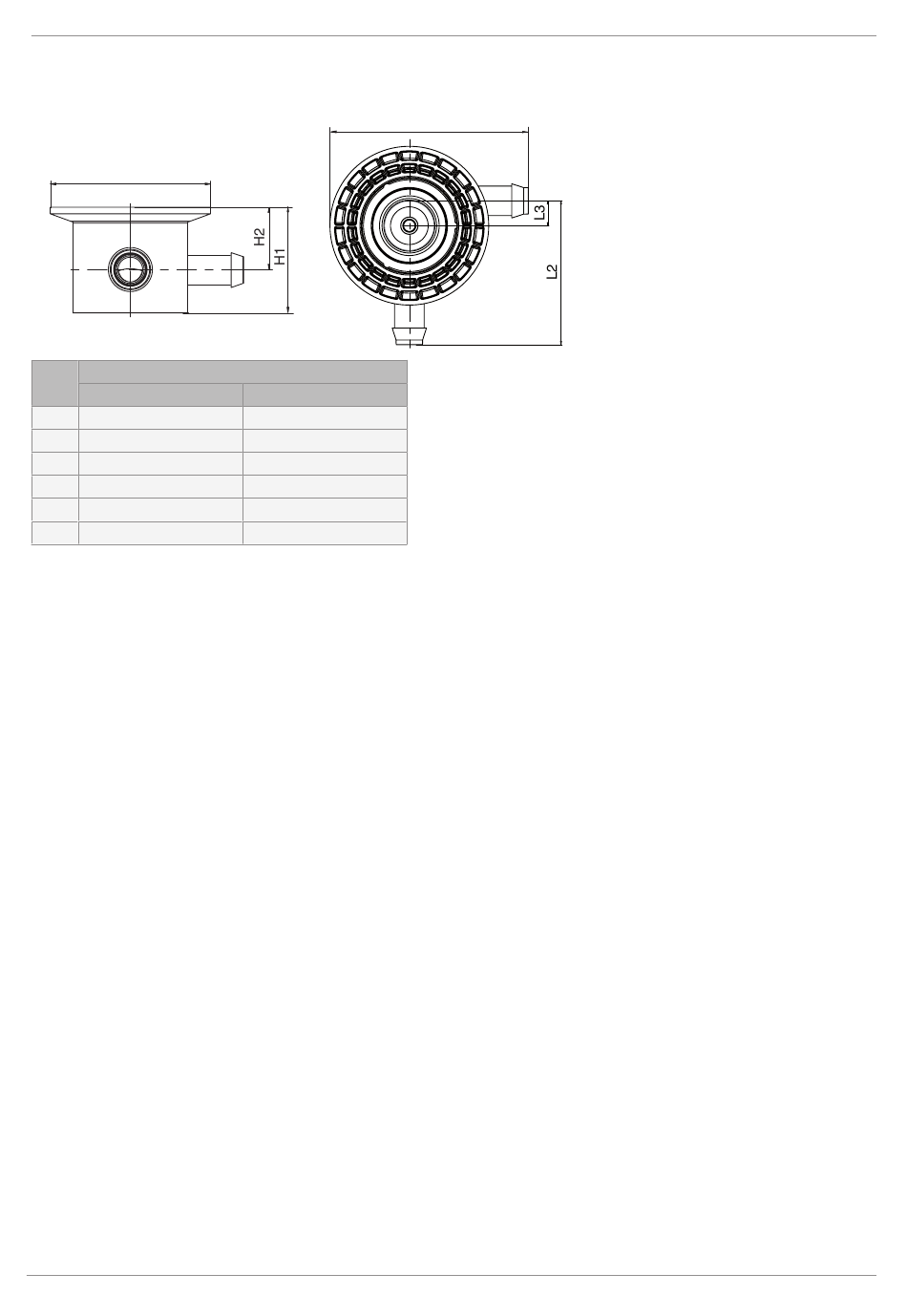

7.2.1 Angle valve body, right (code R)
ØD
3/8" (DN 10)
L1 48
L2 58
L3 10
H1 33.3
H2 22.3
øD 64
Dimensions in mm, MG = diaphragm size
GEMÜ SUPM
MG B
1/2" (DN 15)
55.8
66.8
10
33.3
22.3
64
L1
36 / 56
