2 Safety information

The safety information in this document refers only to an in-
dividual product. Potentially dangerous conditions can arise
in combination with other plant components, which need to
be considered on the basis of a risk analysis. The operator is
responsible for the production of the risk analysis and for
compliance with the resulting precautionary measures and
regional safety regulations.
The document contains fundamental safety information that
must be observed during commissioning, operation and ser-
vicing. Non-compliance with these instructions may cause:
Personal hazard due to electrical, mechanical and
chemical effects.
Hazard to nearby equipment.
Failure of important functions.
Hazard to the environment due to the leakage of dan-
gerous materials.
The safety information does not take into account:
Unexpected incidents and events, which may occur
during installation, operation and servicing.
Local safety regulations which must be adhered to by
the operator and by any additional installation person-
nel.
Prior to commissioning:
1. Transport and store the product correctly.
2. Do not paint the bolts and plastic parts of the product.
3. Carry out installation and commissioning using trained
personnel.
4. Provide adequate training for installation and operating
personnel.
5. Ensure that the contents of the installation, operating and
maintenance instructions have been fully understood by
the responsible personnel.
6. Define the areas of responsibility.
7. Observe the safety data sheets.
8. Observe the safety regulations for the media used.
During operation:
9. Keep this document available at the place of use.
10. Observe the safety information.
11. Operate the product in accordance with this document.
12. Operate the product in accordance with the specifica-
tions.
13. Maintain the product correctly.
14. Do not carry out any servicing work and repairs not de-
scribed in this document without consulting the manu-
facturer first.
In cases of uncertainty:
15. Consult the nearest GEMÜ sales office.
www.gemu-group.com

3 Product description

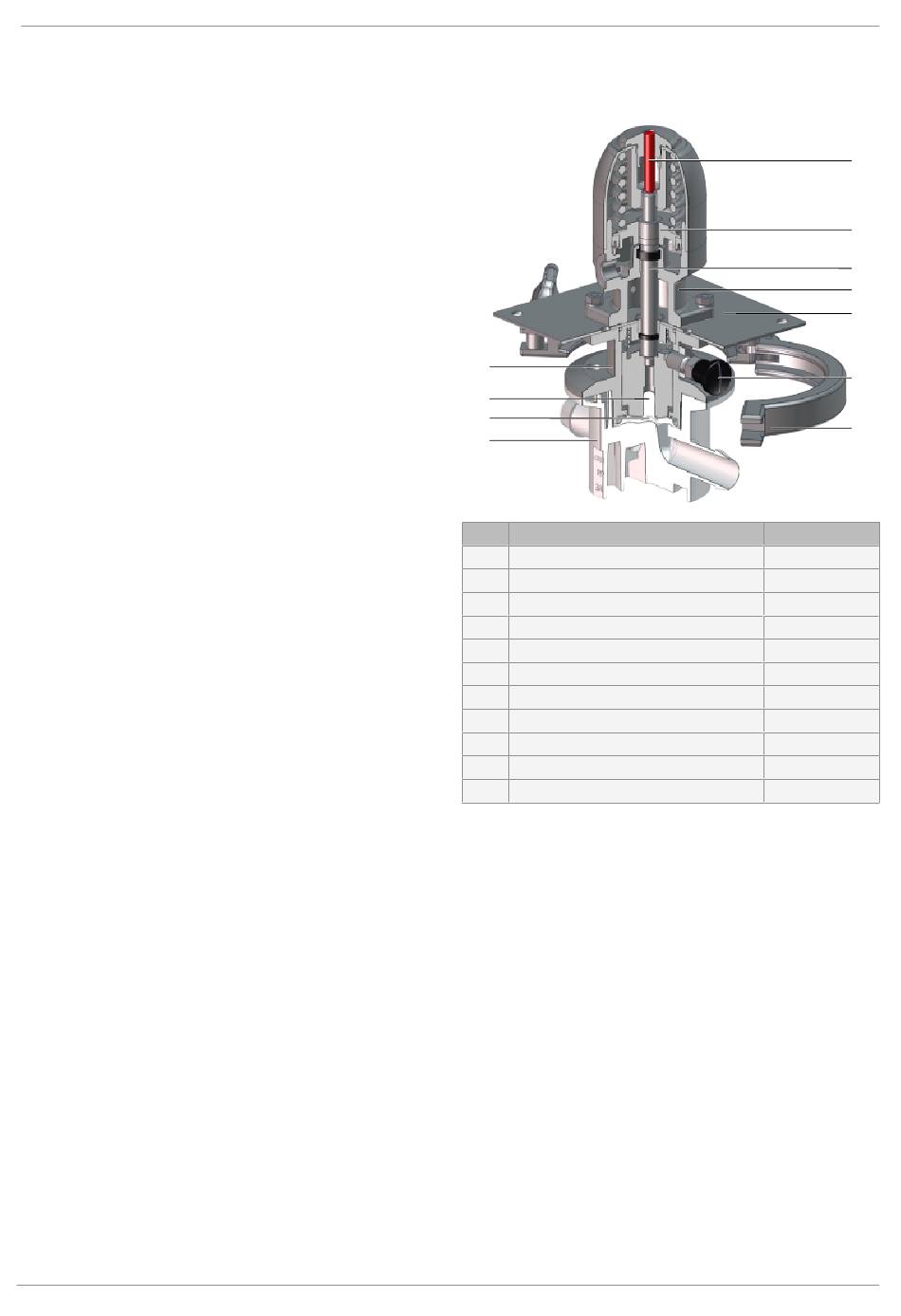

3.1 Construction

11
10
9
8
Item
1
Optical position indicator
2
Piston
3
Valve spindle
4
Actuator
5
Mounting plate
6
Indexing plunger
7
Tri-clamp
8
Valve body
9
Diaphragm
10
Diaphragm pin
11
Distance piece

3.2 Description

The single-use diaphragm valve body of the GEMÜ
SUMONDO single-use diaphragm valve has a hermetic seal-
ing through an internally welded diaphragm. During assembly
the single-use diaphragm valve body is fixed to the pneu-
matic stainless steel actuator and locked via an indexing
plunger. After use the single-use diaphragm valve body with
its diaphragm can be removed from the pneumatic stainless
steel actuator and disposed. The pneumatic stainless steel
actuator remains as a stable component for multiple body
use.

3.3 Function

The GEMÜ single-use diaphragm valve, consisting of the SUB
single-use diaphragm valve body and the SUPM pneumatic
stainless steel actuator, is designed for installation in single-
use systems in plastic pipe and hose lines. It controls a flow-
ing medium by being closed or opened by a control medium.
29 / 56
3 Product description
Name
1.4305
1.4571
1.4571
1.4408
1.4404
PA6
1.4401
PP-R
TPE
PP-R
1.4435
1
2
3
4
5
6
7
Materials
GEMÜ SUPM
