4.8 MX2 Back: Angle & Depth Adjustments
IMPORTANT! Please note that Angle and Depth adjustments on the
MX2 back are also made simultaneously. These two adjustments are more
easily completed by first loosening the adjustment hardware on both clamp
assemblies. (Note: For a standard installation, the depth & angle adjustments
should be made symmetrically on both mounting plates).
1 MX2 Angle Adjustment: If necessary, the MX2 back angle can be
adjusted via the two depth/angle adjustment screws (A) on each mounting
clamp assembly (B) (refer to Fig. 9a).
2 Loosen the depth/angle adjustment screws (x2) on each clamp assembly,
and rotate the mounting plate (C) forward or backward to achieve the
desired back angle (angle adjustment range = ± 15˚, refer to Fig. 9b)

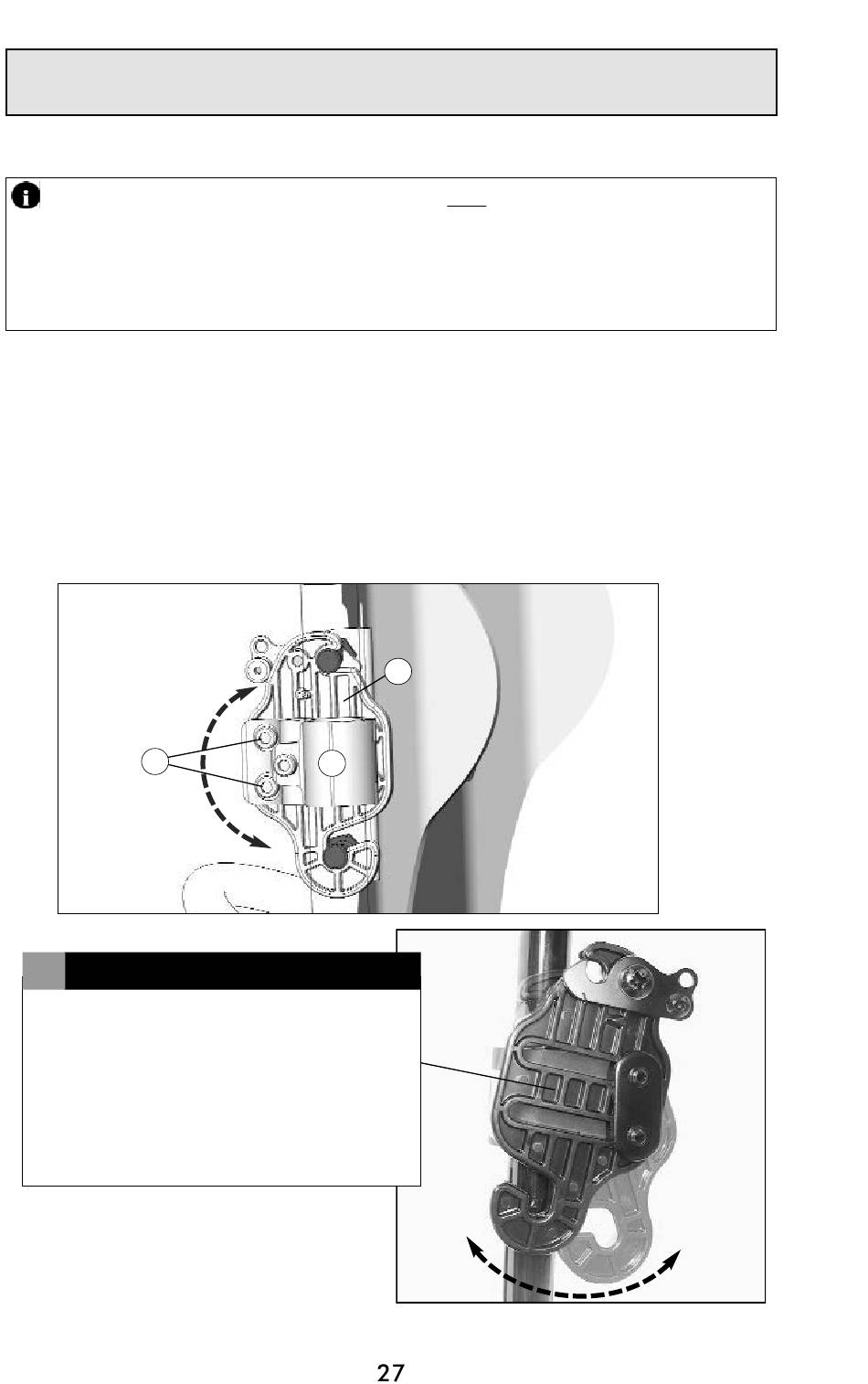

MX2 Installation: Back Angle Adjustment
Fig.9a
A
!
P L E A S E N O T E
The moulded vertical lines on the
mounting plates are designed as a point
of reference to assist with symmetrical
adjustments. When adjusting the MX2
back angle, the vertical lines may be used
to help set the same angle adjustment
on both mounting plates.
- R R
ACK EMOVABLE
B
M
OUNT
C
Angle Adjustment (± 15˚)
I
NSTALLATION
Fig. 9b
