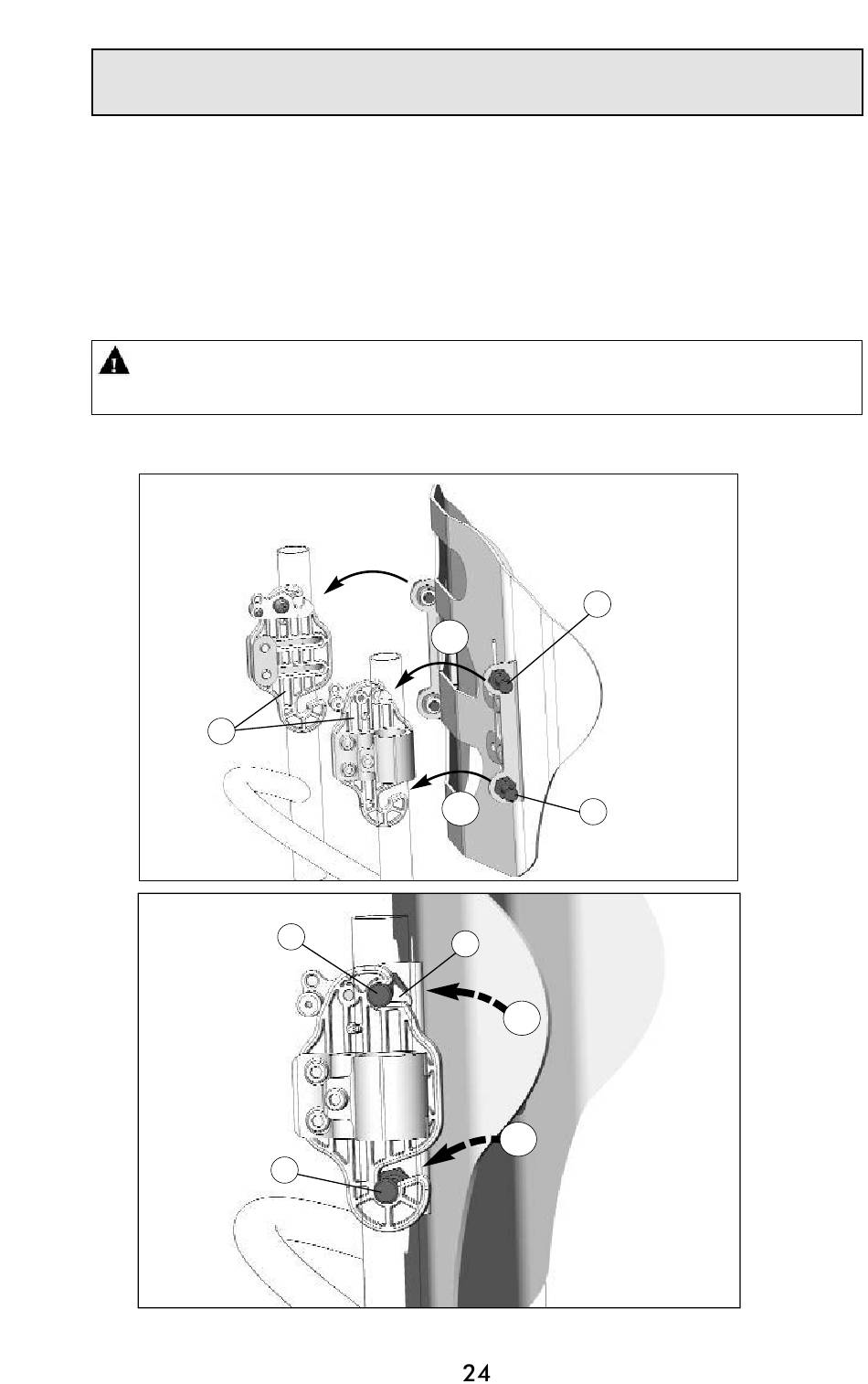

2 Install the MX2 back onto the mounting plates (A) as follows: (Refer to Fig.
6a and 6b)
i. Align and insert the lower mounting pins (B) into the hooked slots at
the bottom of each mounting plate (1).
ii. With the lower pins in place, lock/snap the upper mounting pins (C) into
the latch mechanism (D) at the top of each mounting plate (2).
WARNING! When installing the MX2 Back, always ensure both latch
mechanisms (D) are fully engaged around the upper mounting pins.
MX2 Back Installation onto Mounting Plates
A
- R R
ACK EMOVABLE
C
B
M
OUNT
C
2
1
B
D
2
1
I
NSTALLATION
Fig. 6a
Fig. 6b
