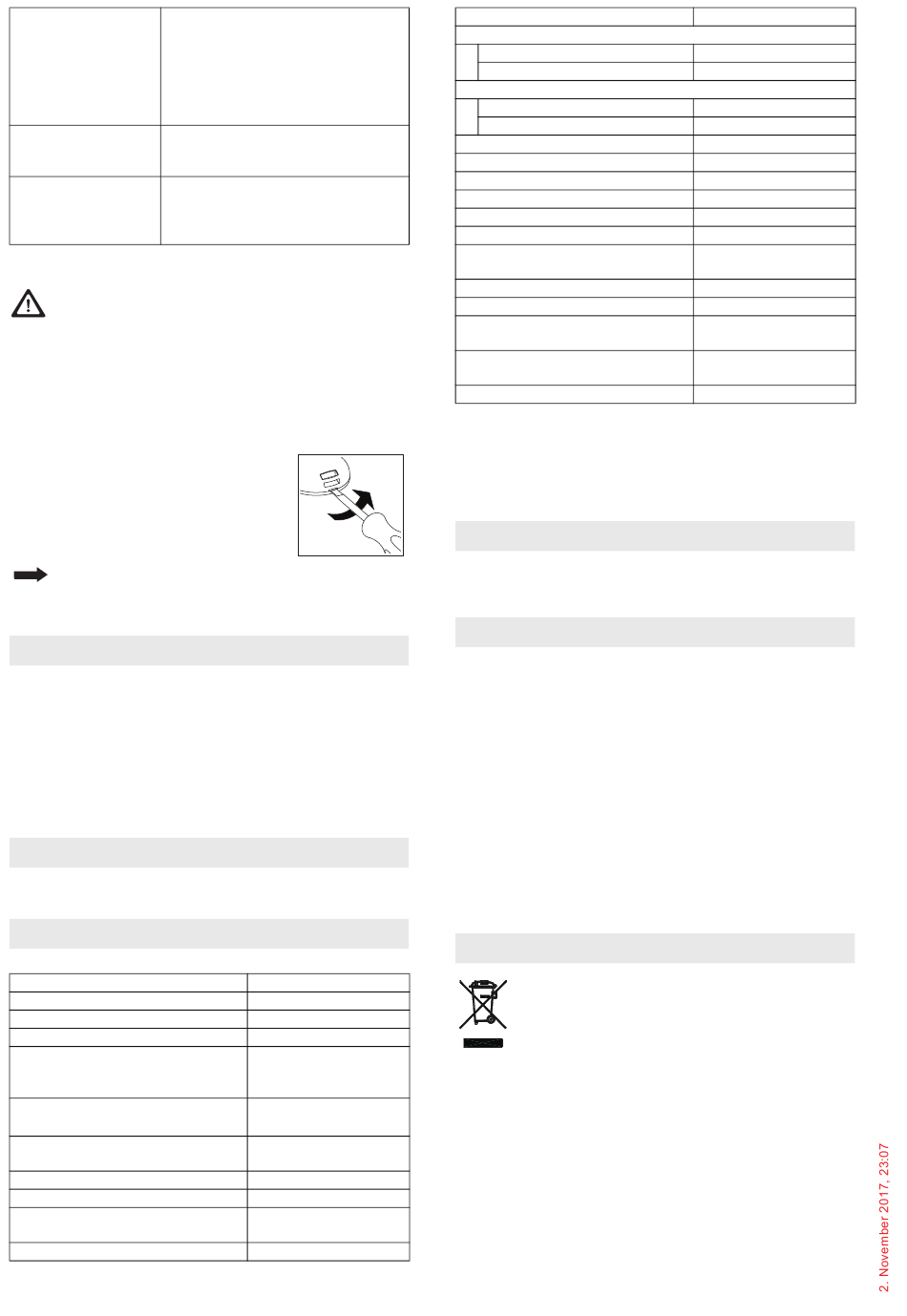

Remote transmitter is If the function message assigned to
not working the transmission pulse is not
displayed whilst the transmitter is
actuated (see Chapter 16): Teach in
remote transmitter / Poor reception
(install optional antenna) energy-
saving lamps
The operator cannot Check the wall keypad and control
be used via the wall wire.
keypad (optional).
The operator cannot Radio level too weak. There are
be used via the interfering radio signals from other
remote transmitter transmission sources / Carry out
(optional). radio level check as described below
Changing the fuse
Pull out mains plug.
• Remove the operator hood, see page 206.
• Remove the faulty fuse (S1) from the fuse holder (S2) and
replace it. Make sure that the new fuse has the correct
value!
• Replace the operator hood.
Restore the mains connection.
Changing the battery of the
remote transmitter
Open the housing cover. Remove the
battery, fit a new one and replace the
housing cover.
Use only leak-proof batteries.
Make sure the polarity is correct. Dispose of used
batteries in an environmentally-friendly way.

23 Maintenance intervals

Monthly
• Load switch-off (entrapment protection device)
• Emergency lock release
• Additional safety devices (if fitted)
Every 6 months
• Mounting of door operator on the ceiling and on the wall

24 Declaration of incorporation

Declaration of incorporation see page 176.

25 Technical data

Mains connection
Device fuse
Power consumption at rated load
Closed current
Degree of protection
Wireless remote control
Programmable hand transmitter
commands
Remote transmitter range 1)
Remote transmitter batteries
Idle speed
Traction
18 / 206
230 V~, 50/60 Hz
1.6 A, T (slow-blow)
140 W
< 2 W
For dry rooms
only, IP 20
Protection class 1
868.35 MHz AM,
AES-128 Encrypted
50
15 - 50 m
CR 2032 (3 V)
~ OPEN >210 mm/s
~ CLOSE >140 mm/s
600 N
IP2285 11/2017
Rated load
Stroke length
Magic 600
Magic 600 long
Maximum door area
Magic 600
Magic 600 long
Maximum door weight
Total length 3)
Total length 2) 3)
Width
Width 2)
Installation height drive rail
Permissible
ambient temperatures
Storage
Lighting
Maximum number of duty cycles
per hour at rated load
Maximum number of duty cycles
without a break at rated load
Noise level at a distance of 2 m
1) The transmission range of the remote transmitter may be
reduced considerably by external interference.
2) Dimensions with turned operator head
3) plus stroke length

26 Replacement parts

See pages 204 and 205.

27 Accessories (optional)

Available from specialised dealer's:
• 4-command multi-use remote transmitter
• Wall keypad
• Key-operated control
• Keypad
• Wireless keypad
• External antenna
• Photo cell
• Accessory card for opto-sensor
• Accessory card for warning light
• Emergency lock release from outside or inside
• Safety edge 8.2 kohms
• Potential-free receiver, various frequencies

28 Removal, Disposal

Removing the door operator takes place in the
reverse sequence of the installation instructions
and must be carried out by qualified technicians.
Dispose of the device according to environmental
guidelines. Electrical parts must not be disposed of
as domestic waste. 2002/96/EG (WEEE)
150 N
2890 +/- 25 mm
3978 +/- 25 mm
8,9 m²
9,5 m²
116 Kg
615 mm
485 mm
285 mm
363 mm
40 mm
-20°C to 50 °C
-20°C to 80 °C
E14, max. 40 W
20
8
≤69 dB(A)
Magic 600-2
