20 Attaching additional safety devices

Photo cell

Function: When the safety input is activated (opening the
contact) the operator stops and reverses as far as the OPEN
end position.
If the "automatic closure" function is also activated, following
the third successive obstruction message, the operator will
move to the OPEN end position and shut down.
Connection: Pull out plug with yellow bridge on the external
junction 2 and store it. Plug on safety device.
Safety edge, opto-sensor
connected by extension modules.

EMERGENCY stop

Function: If the external safety device is operated when the
door is moving (Contact opened), the door stops immediately.
Once the EMERGENCY stop contact has closed, the door
operator can be moved again with the next pulse.
Connection: Pull out plug with green bridge on the external
junction 5 and store it. Plug on safety device.

21 Additional connections

Additional lighting

Connection must be performed only by qualified electricians.
In addition to the operator light (5 W LED lamp), optional
lighting of a maximum of 60 W (no tubular fluorescent lamps)
can be connected to terminals 1 and 2.
Note: Some energy-saving lamps can interfere with the radio
signal.

External pulse input

An external pulse signal (e.g. wall button) can be connected
to terminals 18 and 19. Fixed control devices like buttons or
similar should be installed at a height of at least 1,5 m and
within sight of the door but away from moving parts. Key
actuated switches can be installed at lower height.

Additional antenna

An external antenna can be connected to terminals 21 and 20
(GND). The internal antenna (terminal 21) must be
disconnected.
19
18
20
21

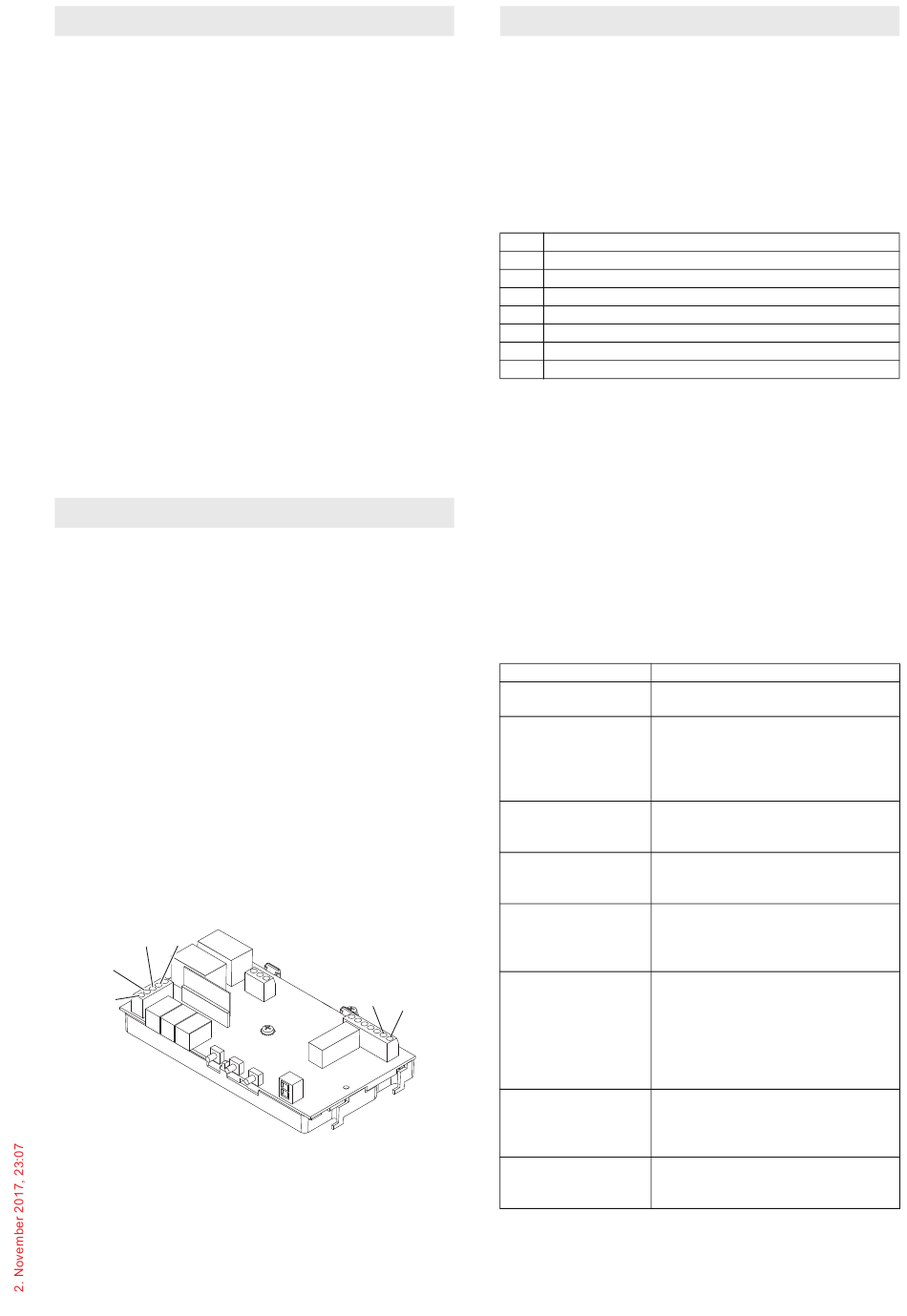

Figure: Control board See also page 206.
Magic 600-2
warning light
and are
2
1
IP2285 11/2017

22 Troubleshooting

Interference frequencies
The wireless signals of other 868 MHz transmitters can
interfere with the door operator.
Self-test
The system runs a self-test after initialisation, after each
motor operation and after every 2.25 hours in idle mode.
Error free = status message.
Error messages
2 EEprom data
3 Current measurement
4 Hardware Photo cell
5 Switch off thyristors
6 Switch off relay
7 Watchdog test
8 ROM test
9 RAM test
Troubleshooting: Reset (Chapter 19) and then perform work
step Teaching in the door operator (Chapter 15)
If the error occurs again, request customer service.
Note: If the same error occurs in two successive self-tests,
the control system will be disabled (commands are rejected).
After approximately one further minute, the system runs
another self-test. If no errors are detected, the control system
is enabled again. If the error persists, a reset will need to be
performed. This will delete all settings and the door operator
will have to be taught in again.

Causes of errors/Remedies

Description Possible cause/Remedy
Door operator light The door has hit an obstruction, do
flashes evenly function test
Door operator light Door operator is not taught in,
flashes at intervals of attention no protection by load
4 switch-off! Carry out door operator
Teaching in the door operator
(Chapter 15)
Entrapment Incorrect setting of door or
protection device not entrapment protection device /
working. Reset and teach in again
The operator is not None or wrong voltage supply / The
working at all. fuse of the motor control is defective
/ Check external terminals 7 and 8.
The operator is The slides are not snapped-in
defective. properly./The toothed belts are not
tensioned correctly./The door
thresholds are frozen.
Operator closes the Operator teaches in the travel
door slowly (soft automatically. After CLOSED end
start) whilst door position, moves automatically to
operator light flashes OPEN end position. If the door
operator light flashes in intervals of
4, carry outTeaching in the door
operator (Chapter 15)
The operator Check that the door is running
switches off during smoothly and that the entrapment
motion. protection device is working properly
/ Reset / Teach in the door operator
Remote transmitter is Replace the batteries
not working, LED not
alight
