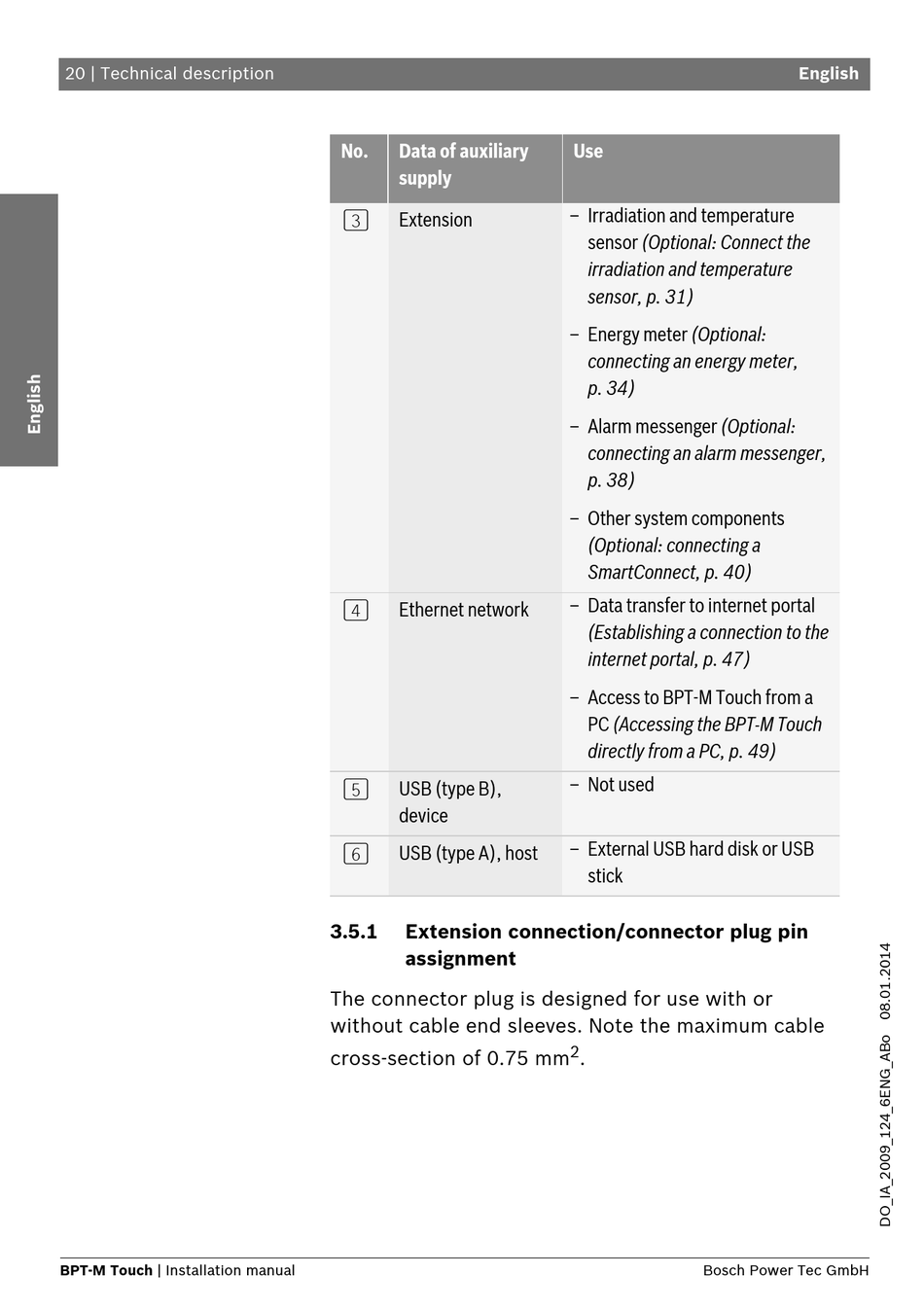

20 | Technical description
BPT-M Touch | Installation manual
No. Data of auxiliary
supply
(3)
Extension
(4)
Ethernet network
(5)
USB (type B),
device
(6)
USB (type A), host
3.5.1 Extension connection/connector plug pin
assignment
The connector plug is designed for use with or
without cable end sleeves. Note the maximum cable
cross-section of 0.75 mm
Use
– Irradiation and temperature
sensor (Optional: Connect the
irradiation and temperature
sensor, p. 31)
– Energy meter (Optional:
connecting an energy meter,
p. 34)
– Alarm messenger (Optional:
connecting an alarm messenger,
p. 38)
– Other system components
(Optional: connecting a
SmartConnect, p. 40)
– Data transfer to internet portal
(Establishing a connection to the
internet portal, p. 47)
– Access to BPT-M Touch from a
PC (Accessing the BPT-M Touch
directly from a PC, p. 49)
– Not used
– External USB hard disk or USB
stick
2
.
Bosch Power Tec GmbH
English
