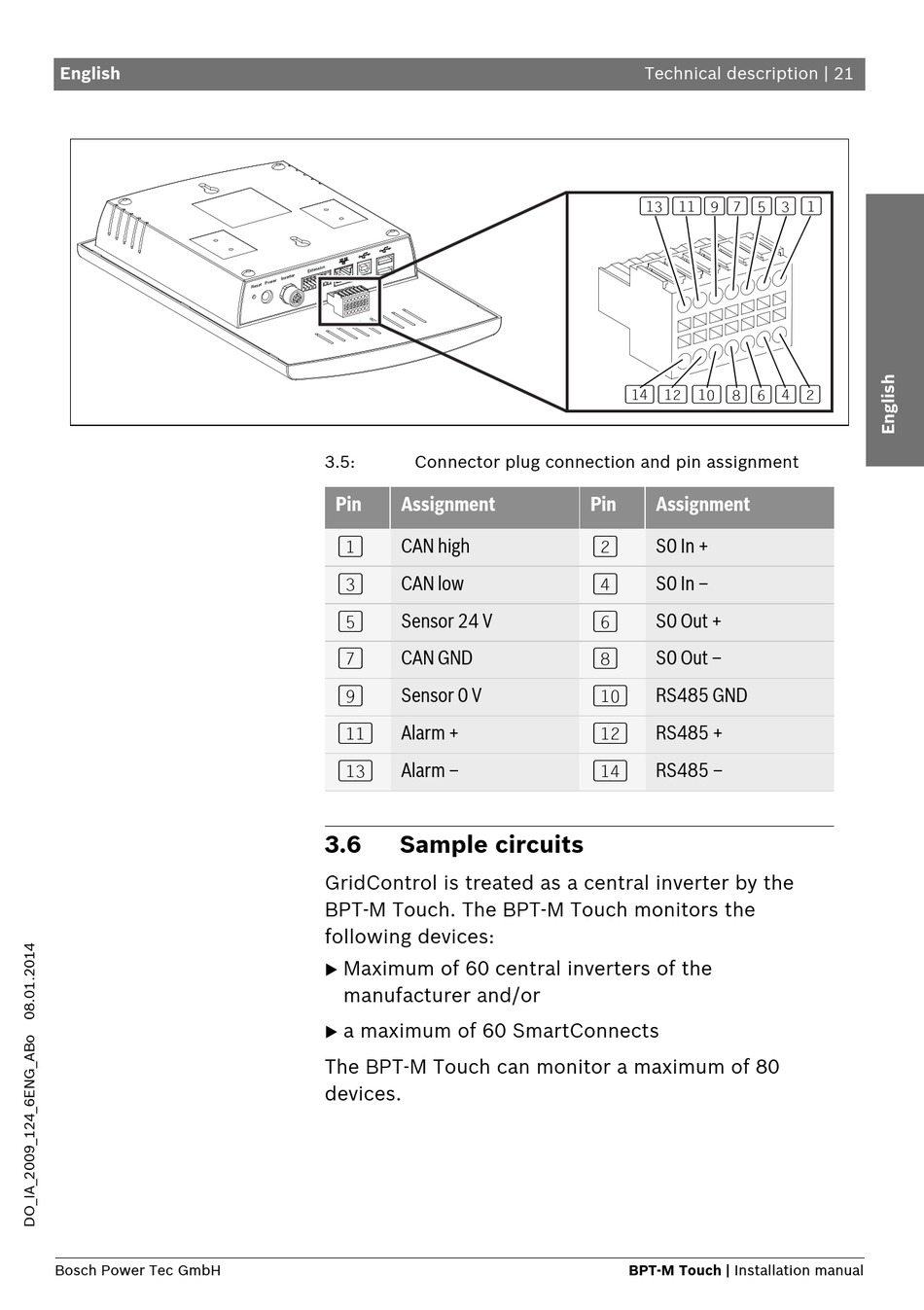

3.5: Connector plug connection and pin assignment
Pin Assignment
(1)
CAN high
(3)
CAN low
(5)
Sensor 24 V
(7)
CAN GND
(9)
Sensor 0 V
(11)
Alarm +
(13)
Alarm –
3.6

Sample circuits

GridControl is treated as a central inverter by the
BPT-M Touch. The BPT-M Touch monitors the
following devices:
Maximum of 60 central inverters of the

manufacturer and/or
a maximum of 60 SmartConnects

The BPT-M Touch can monitor a maximum of 80
devices.
Technical description | 21
(13) (11) (9) (7) (5)
(14) (12) (10) (8) (6)
Pin Assignment
(2)
S0 In +
(4)
S0 In –
(6)
S0 Out +
(8)
S0 Out –
(10)
RS485 GND
(12)
RS485 +
(14)
RS485 –
BPT-M Touch | Installation manual
(3) (1)
(4) (2)
