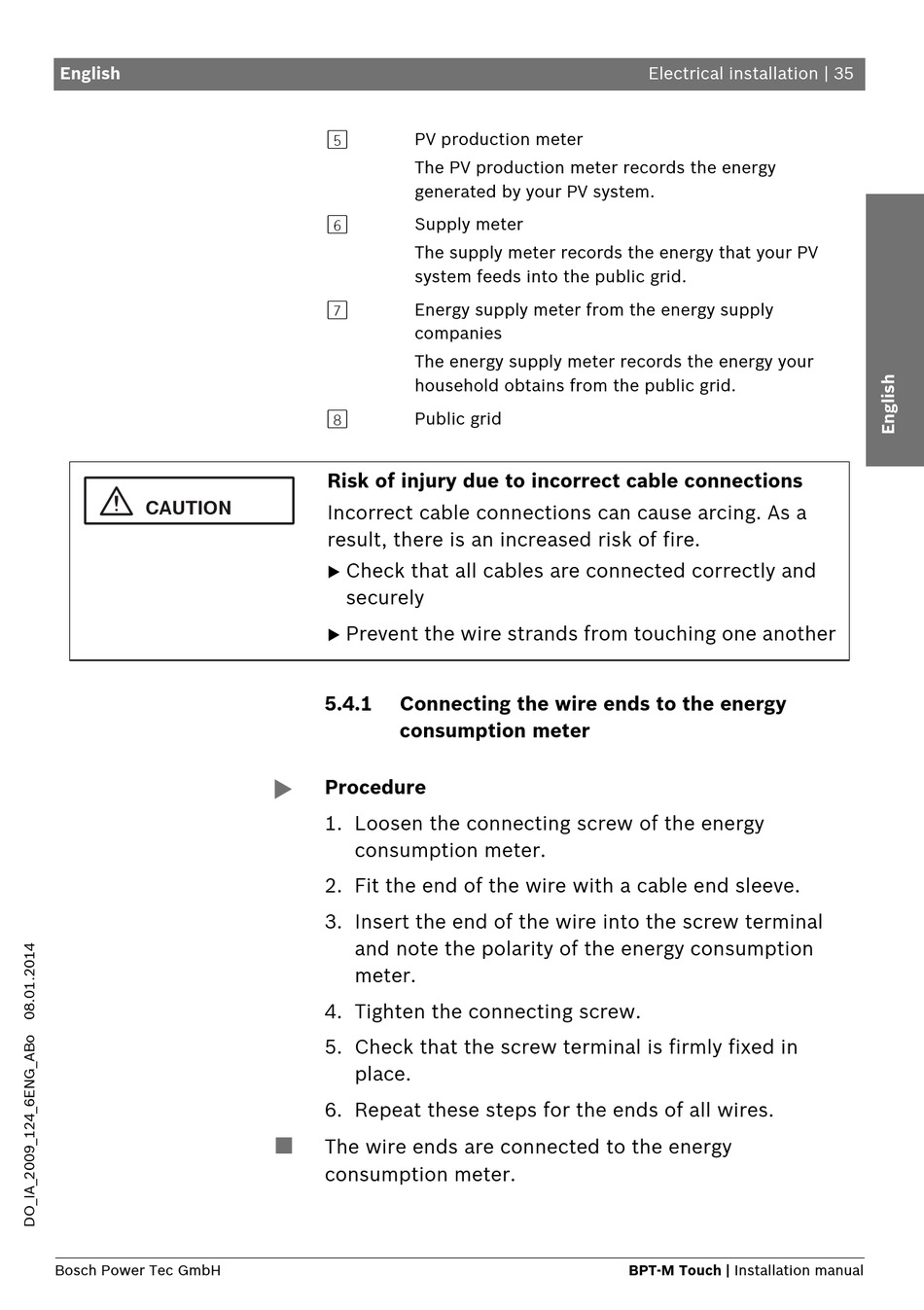

CAUTION
Bosch Power Tec GmbH
[5]
PV production meter
The PV production meter records the energy
generated by your PV system.
[6]
Supply meter
The supply meter records the energy that your PV
system feeds into the public grid.
[7]
Energy supply meter from the energy supply
companies
The energy supply meter records the energy your
household obtains from the public grid.
[8]
Public grid
Risk of injury due to incorrect cable connections
Incorrect cable connections can cause arcing. As a
result, there is an increased risk of fire.
Check that all cables are connected correctly and

securely
Prevent the wire strands from touching one another

5.4.1 Connecting the wire ends to the energy
consumption meter
▶
Procedure
1. Loosen the connecting screw of the energy
consumption meter.
2. Fit the end of the wire with a cable end sleeve.
3. Insert the end of the wire into the screw terminal
and note the polarity of the energy consumption
meter.
4. Tighten the connecting screw.
5. Check that the screw terminal is firmly fixed in
place.
6. Repeat these steps for the ends of all wires.
■
The wire ends are connected to the energy
consumption meter.
Electrical installation | 35
BPT-M Touch | Installation manual
