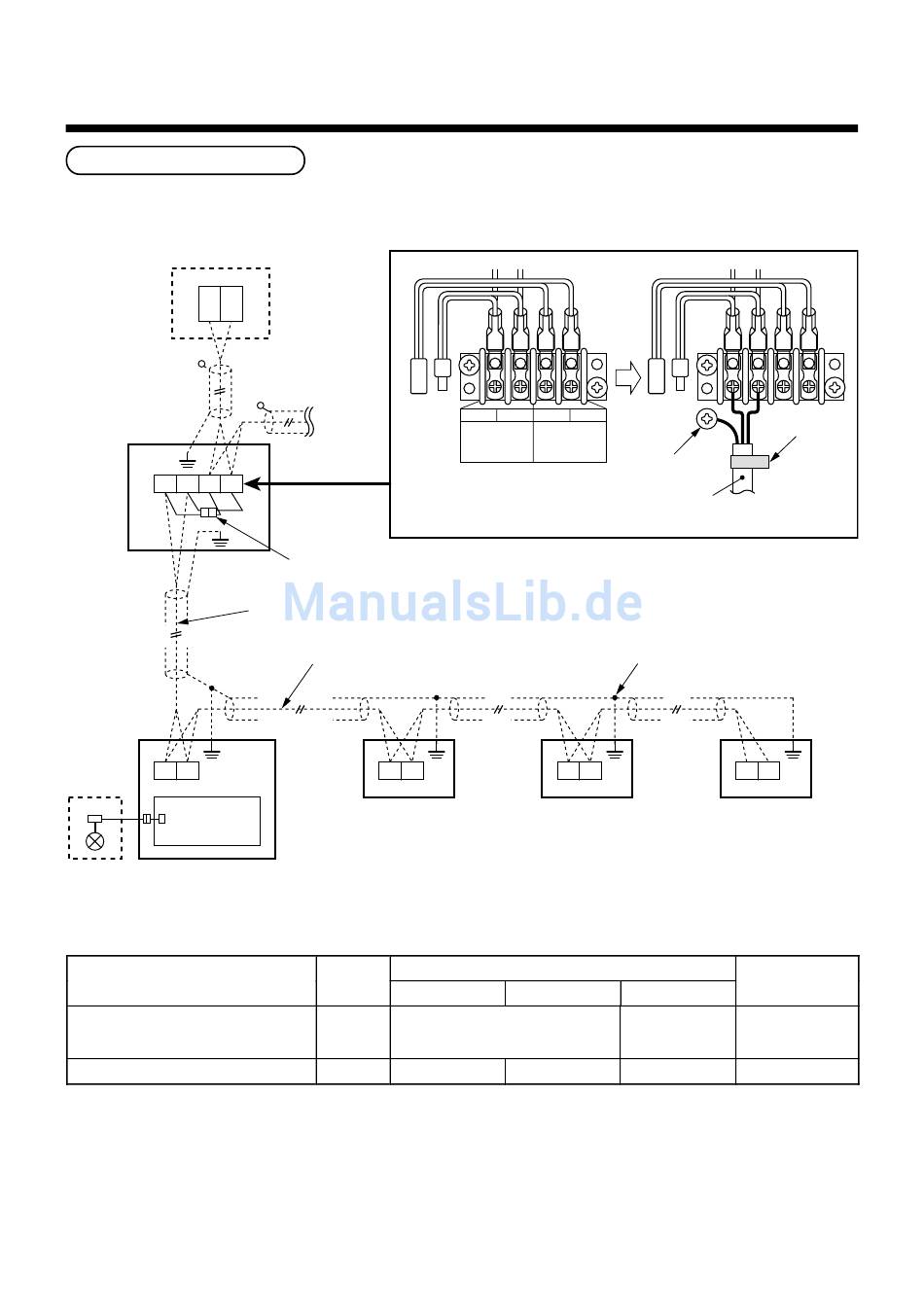

Design of control wiring
• Connect each wire for controlling as shown below.
Central remote controller (Option)
U1 U2
U3 U4
(Open)
[Outdoor unit]
U1 U2 U3 U4
[Indoor unit]
U1 U2
PMV Kit
(Option)
Indoor control
P.C. board
CN82
• Wire specification, quantity, size of crossover wiring and remote controller wiring
Name
Control wiring
(indoor-indoor / indoor-outdoor / outdoor-
indoor control wiring, central control wiring)
Remote controller wiring
1. The crossover wiring and central control wiring use 2-core non-polarity transmission wires. Use 2-core shield
wires to prevent noise trouble. In this case, close (connect) the end of shield wires, and perform the functional
grounding for the end of the shield wires which are connected to both indoor and outdoor units.
For the shield wires which are connected between the central remote controller and the
outdoor unit, perform the functional grounding at only one end of central control wiring.
2. Use 2-core and non-polarity wire for remote controller. (A, B terminals)
Use 2-core and non-polarity wire for wiring of group control. (A, B terminals)
