COMMUNICATION

p5 or pSeries with Logical Partitions Interface Overview

To connect the UPS to a p5 or pSeries with LPARs you need:
S
S
S
S
Follow the instructions included with the ConnectUPS-X Web/SNMP
Card Kit to install the card and set UPS monitoring functions. Installation
may include removal of an existing X-Slot card from the UPS.
Follow the software installation instructions contained on the Software
Suite CD to install the NetWatch software onto each LPAR.
Connect the Ethernet cable as shown in Figure 46.
48
EATON Powerware
An Eaton-supplied ConnectUPS-X Web/SNMP Card, located in the
FC 2934 carton labeled "ConnectUPS-X Web/SNMP Card Kit"
NetWatch software from the Software Suite CD, located in the P30
accessory kit
A customer-supplied Ethernet cable
An available Ethernet port on the server
IBM p5 Server
Ethernet Cable
(customer-supplied)
Ethernet Connectors
UPS

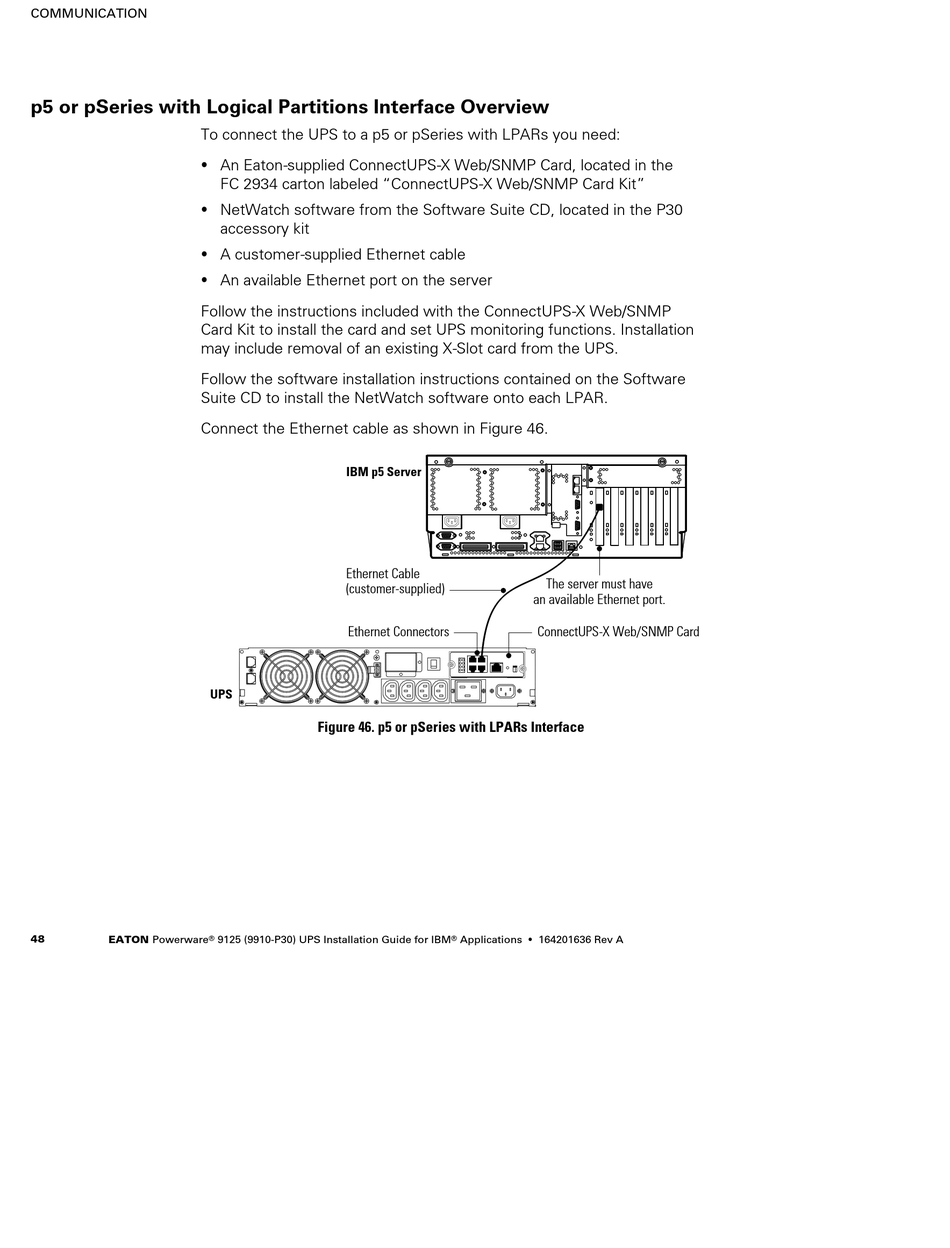

Figure 46. p5 or pSeries with LPARs Interface
®
9125 (9910-P30) UPS Installation Guide for IBM
The server must have
an available Ethernet port.
ConnectUPS-X Web/SNMP Card
® S
Applications 164201636 Rev A
