INSTALLATION

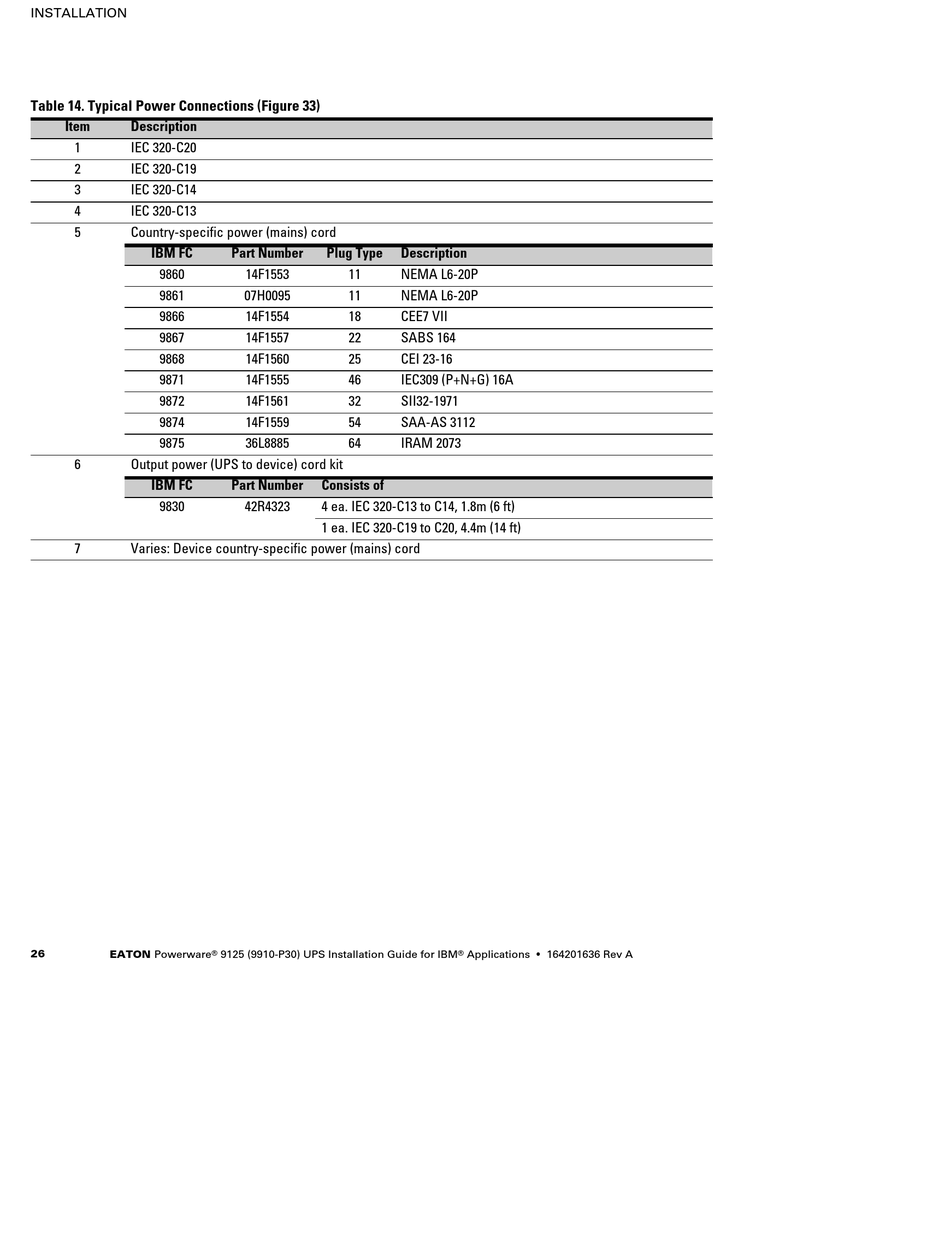

Table 14. Typical Power Connections (Figure 33)
Item Description
1 IEC 320-C20
2 IEC 320-C19
3 IEC 320-C14
4 IEC 320-C13
5 Country-specific power (mains) cord
IBM FC
9860
9861
9866
9867
9868
9871
9872
9874
9875
6 Output power (UPS to device) cord kit
IBM FC
9830
7 Varies: Device country-specific power (mains) cord
26
EATON Powerware
Part Number Plug Type
14F1553 11
07H0095 11
14F1554 18
14F1557 22
14F1560 25
14F1555 46
14F1561 32
14F1559 54
36L8885 64
Part Number Consists of
42R4323 4 ea. IEC 320-C13 to C14, 1.8m (6 ft)
1 ea. IEC 320-C19 to C20, 4.4m (14 ft)
®
9125 (9910-P30) UPS Installation Guide for IBM
Description
NEMA L6-20P
NEMA L6-20P
CEE7 VII
SABS 164
CEI 23-16
IEC309 (P+N+G) 16A
SII32-1971
SAA-AS 3112
IRAM 2073
