OPERATION

Normal Mode

During Normal mode, the
displays the percentage of UPS load capacity being used by the
protected equipment (see Figure 37). The UPS monitors and charges the
batteries as needed and provides power protection to your equipment.
When all of the bar graph indicators are illuminated and the
flashes, power requirements exceed UPS capacity; refer to
"Troubleshooting" in the Powerware 9125 Two-in-One UPS
(2500/3000 VA) User's Guide for more information.
34
EATON Powerware
μ

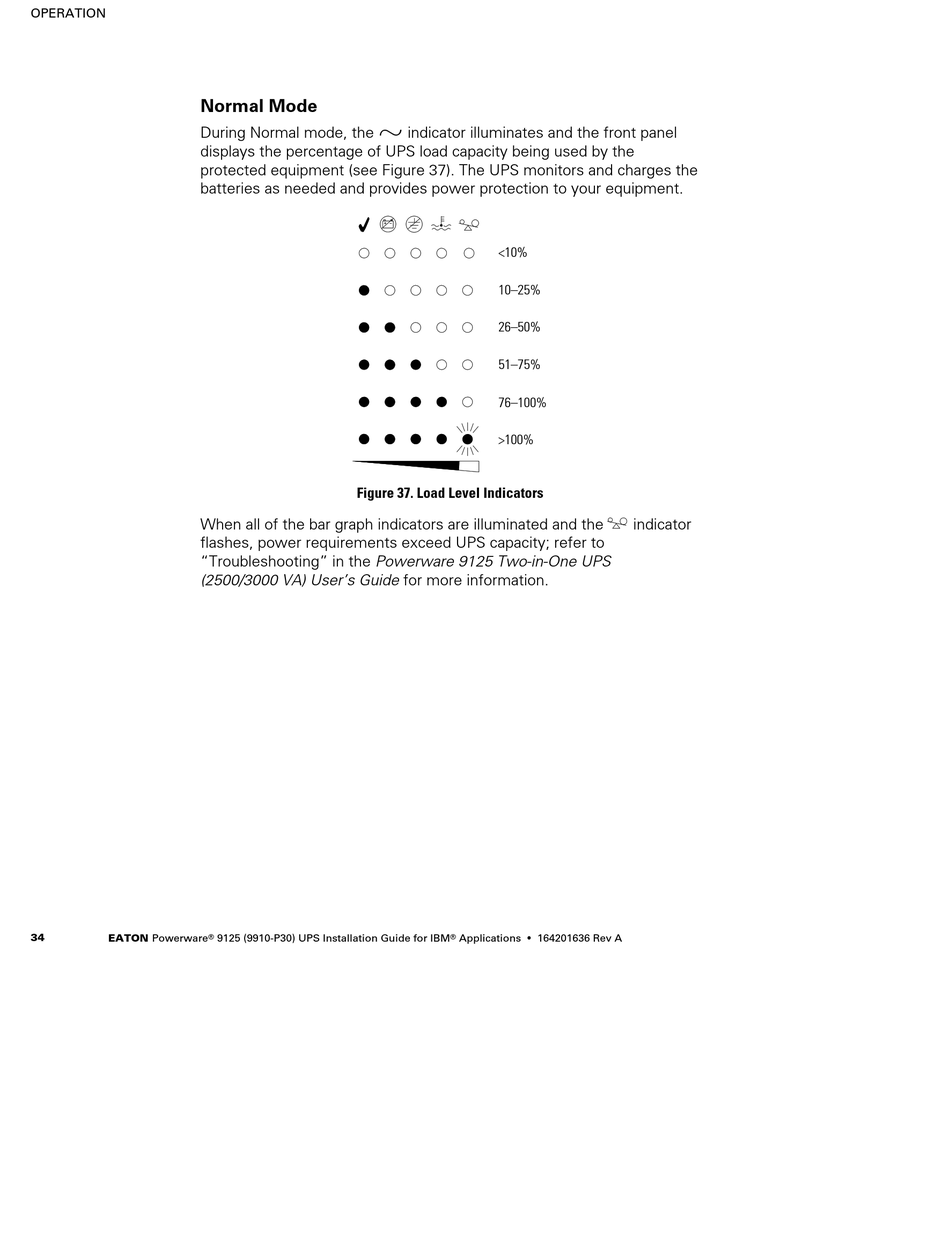

Figure 37. Load Level Indicators
®
9125 (9910-P30) UPS Installation Guide for IBM
indicator illuminates and the front panel
<10%
10–25%
26–50%
51–75%
76–100%
>100%
® S
Applications 164201636 Rev A
indicator
