Operating Modes

Powerware 9125's front panel indicates the UPS status through the UPS

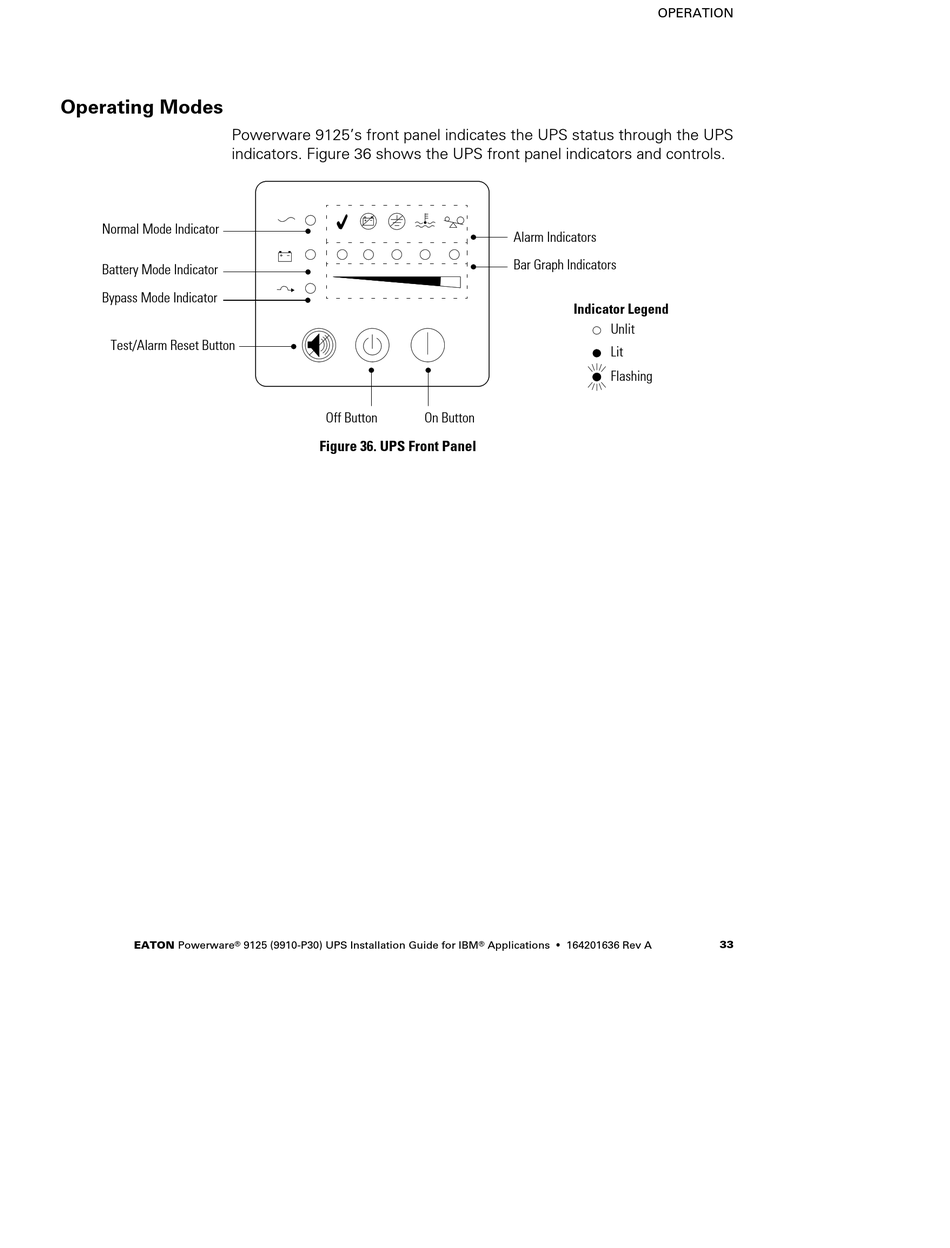

indicators. Figure 36 shows the UPS front panel indicators and controls.
Normal Mode Indicator
Battery Mode Indicator
Bypass Mode Indicator
Test/Alarm Reset Button
®
EATON Powerware
Off Button
Figure 36. UPS Front Panel
9125 (9910-P30) UPS Installation Guide for IBM
Alarm Indicators
Bar Graph Indicators
Indicator Legend
On Button
® S
Applications 164201636 Rev A
OPERATION
Unlit
Lit
Flashing
