INSTALLATION
5.
6.
12
EATON Powerware

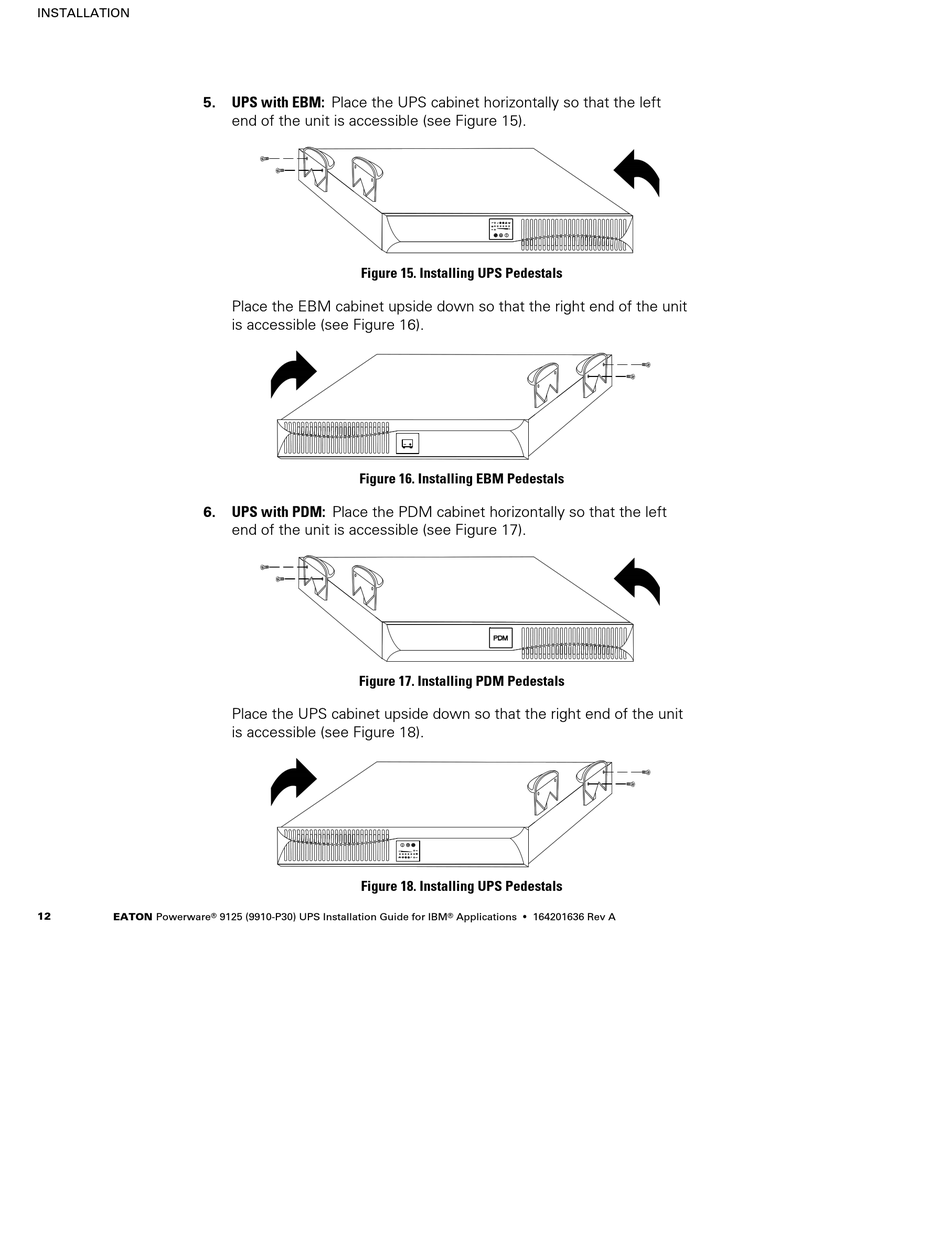

UPS with EBM: Place the UPS cabinet horizontally so that the left
end of the unit is accessible (see Figure 15).
Figure 15. Installing UPS Pedestals
Place the EBM cabinet upside down so that the right end of the unit
is accessible (see Figure 16).
Figure 16. Installing EBM Pedestals
UPS with PDM: Place the PDM cabinet horizontally so that the left
end of the unit is accessible (see Figure 17).
Figure 17. Installing PDM Pedestals
Place the UPS cabinet upside down so that the right end of the unit
is accessible (see Figure 18).
Figure 18. Installing UPS Pedestals
®
9125 (9910-P30) UPS Installation Guide for IBM
® S
Applications 164201636 Rev A
