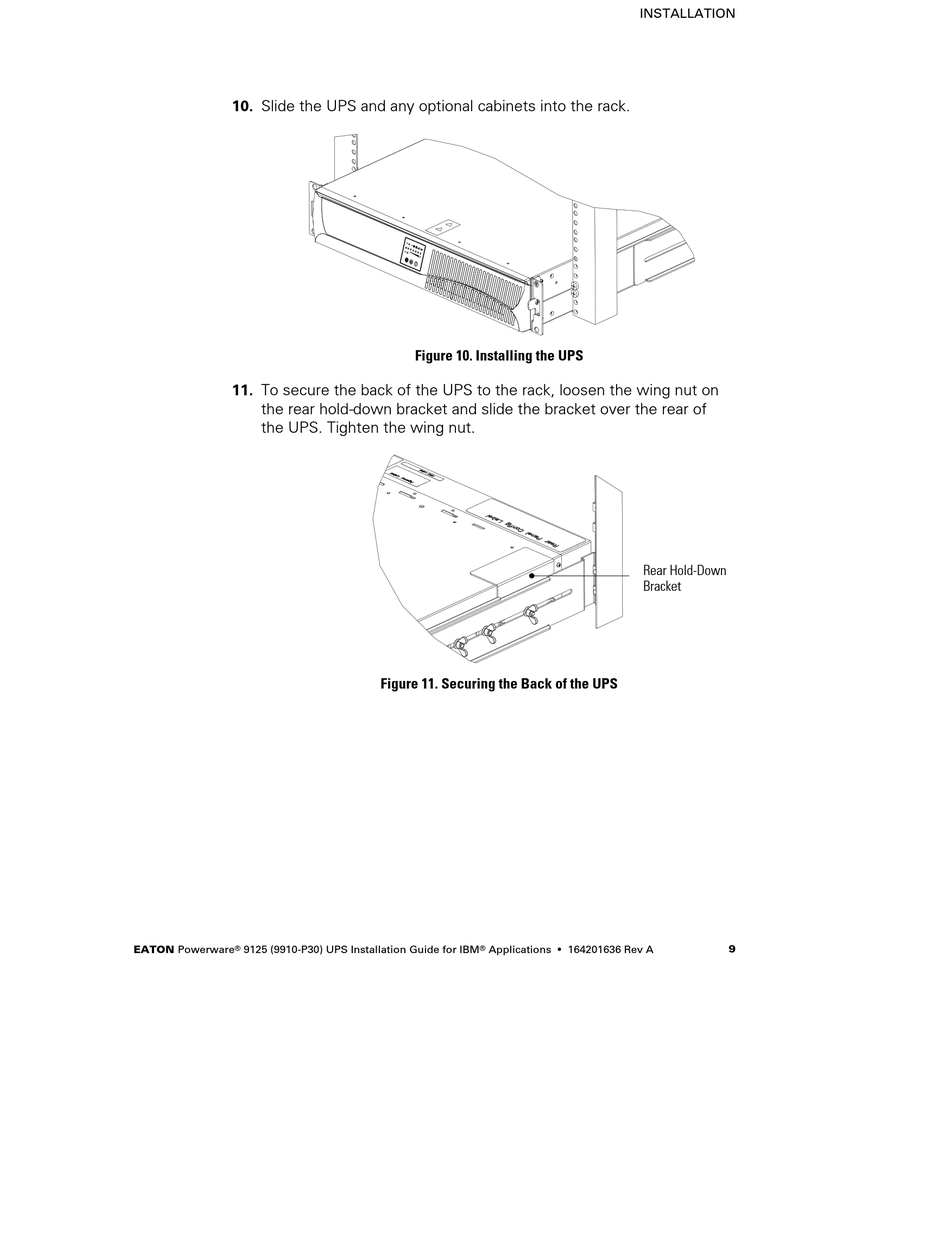

10. Slide the UPS and any optional cabinets into the rack.
11. To secure the back of the UPS to the rack, loosen the wing nut on
the rear hold-down bracket and slide the bracket over the rear of
the UPS. Tighten the wing nut.
®
EATON Powerware 9125 (9910-P30) UPS Installation Guide for IBM
Figure 10. Installing the UPS
Figure 11. Securing the Back of the UPS
® S
Applications
INSTALLATION
Rear Hold-Down
Bracket
9
164201636 Rev A
