Conductivity Measuring Module (electrodeless)
Item/designation
Terminal box
Measuring lead extension LIYY - LIYCY, 4 x 0,5
(please specify desired length)
Connection plan
Do not fit a line extension if the measurement range
is between 0 and 2 mS.

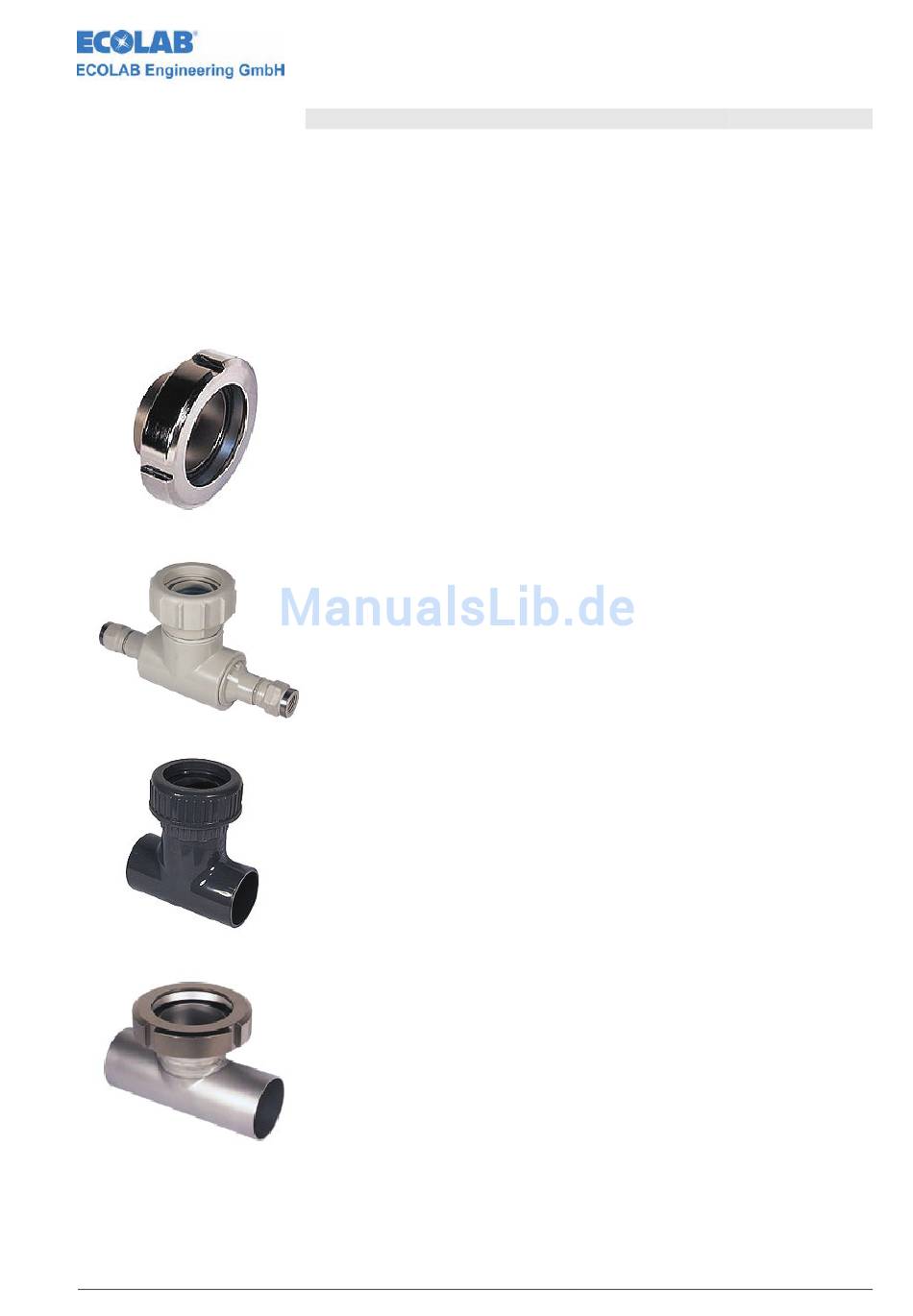

Tank welding fitting
Material: V2A (1.4301)
Flow fitting
Material: PP
Temperature resistance: up to 80 °C
Connection: G 1/2"
Flow fitting
Material: PVC
Temperature resistance: up to 50 °C
Connection: adhesive fitting DN 40
Flow fitting with weld-on end
Nominal diameter: DN 50 (ID/AD = 49 / 52 mm)
Material: V2A (1.4301)
- 60 -
Material-No.
288101
418437041
417102042
287505
287506
287514
287507
