The set point (W) function is used to specify the nominal value within the measuring
range. Value range (in dependence on the set measuring range):
Measuring range Value range
0..2mS
0..20mS
0..200mS
0..2000mS
The proportional area (XP1) function is used to specify the proportionality factor for the P-
proportion of the controller.
Value range: 0 % to 999 %
The ID-proportion of the controller can be adjusted with the prelim time (Tv) and delay
time (Tn) functions.
Value range:
The absolute interval between switching point 2 and the set point can be specified with the
setpoint difference (LW) function.
Value range (depending on the set measuring range):
Measuring range Value range
0..2 mS
0..20 mS
0..200 mS
0..2000 mS
The switch difference (X2SD) function is used to specify a switch hysteresis around
switching point 2. The stated percentage refers to the absolute value of switching point 2.
Value range: 0.0 % to 30.0 %
Through selecting the module selection function one returns to the controller parameter
module selection.
Page 2 displays additional parameters on a second page of settings.

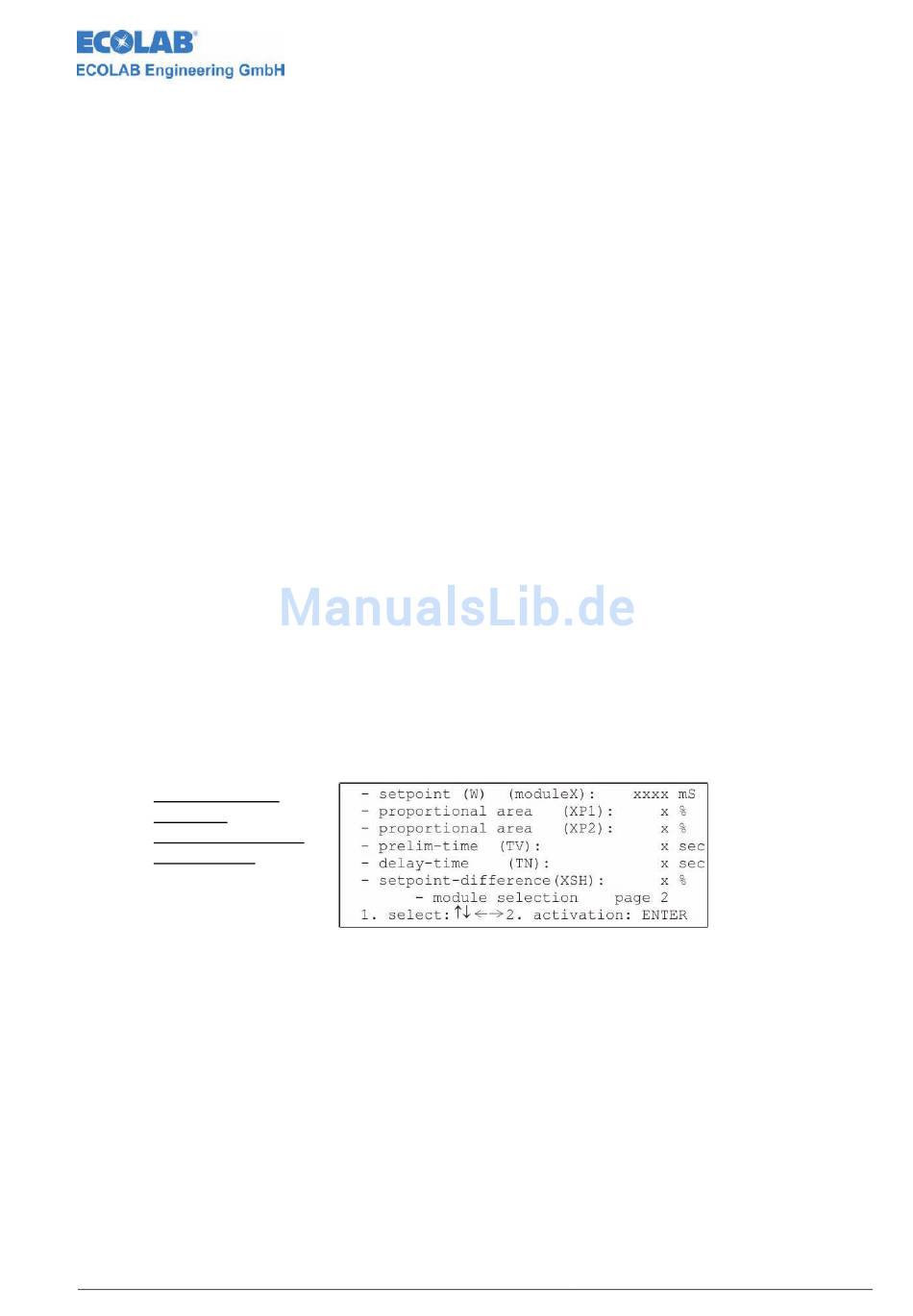

The following settings apply to the 3-point PID controller:
Electrodeless C
controller
parameters page 1
(3-point PID)
The set point (W) function is used to specify the nominal value within the measuring
range. Value range (in dependence on set measuring range):
Measuring range Value range
0..2 mS
0..20 mS
0..200 mS
0..2000 mS
The proportionality factors for the P-proportion of the respective controller can be speci-
fied with the proportional area (XP1) and proportional area (XP2) functions.
Value range: 0 % to 999 %
The ID-proportion of the controller can be adjusted with the prelim time (Tv) and delay
time (Tn) functions.
Value range: 0 sec to 1200 sec (prelim time)
417101800_Anhang01_LF_induktiv.doc
Conductivity Measuring Module (electrodeless)
0.000 mS to 2.000 mS
0.00 mS to 20.00 mS
0.0 mS to 200.0 mS
0 mS to 2000 mS
0 sec to 1200 sec (prelim time)
0 sec to 3600 sec (delay time)
0.000 mS to 2.000 mS
0.00 mS to 20.00 mS
0.0 mS to 200.0 mS
0 mS to 2000 mS
0.000 mS to 2.000 mS
0.00 mS to 20.00 mS
0.0 mS to 200.0 mS
0 mS to 2000 mS
0 sec to 3600 sec (delay time)
