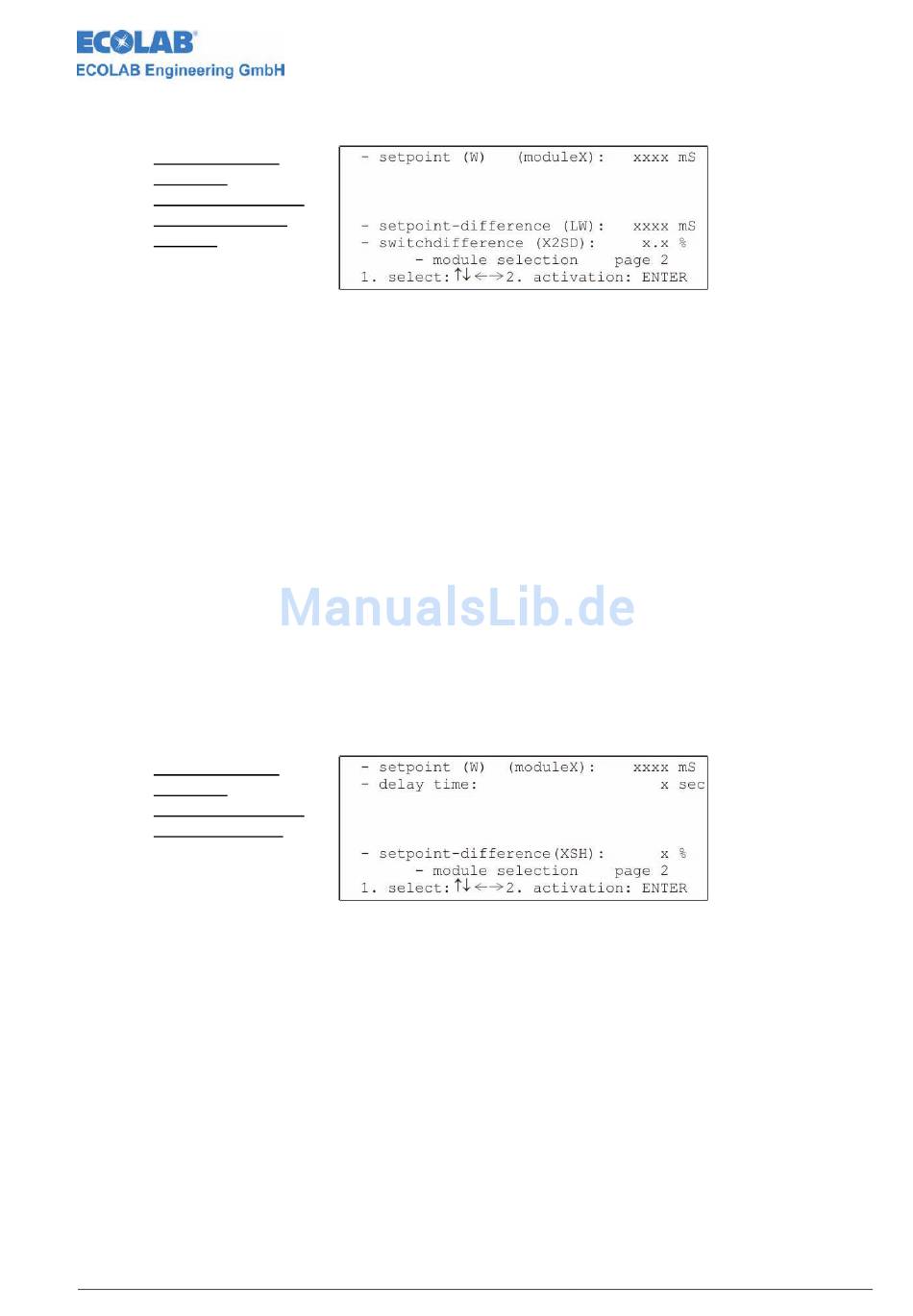

The follow settings are valid for the adaptive 2-point FUZZY controllers (aFUZa and
aFUZs):
Electrodeless C
controller
parameters page 1
(adaptive 2-point
FUZZY)
The set point (W) function is used to specify the nominal value within the measuring range.
Value range (depending on the set measuring range):
Measuring range
0..2mS
0..20mS
0..200mS
0..2000mS
The setpoint difference (LW) function is used to specify the absolute interval between switch-
ing point 2 and the set point.
Value range (depending on the set measuring range):
Measuring range
0..2mS
0..20mS
0..200mS
0..2000mS
The switch difference (X2SD) function can be used to specify a switch hysteresis around
switching point 2. The stated percentage refers to the absolute value of switching point 2.
Value range: 0.0% to 30.0%
Through selecting the module selection function one returns to the controller parameter mod-
ule selection.
Page 2 displays additional parameters on a second page of settings.
The following settings apply to the 3-point-FUZZY controller:
Electrodeless C
controller
parameters page 1
(3-point FUZZY)
The set point (W) function is used to specify the nominal value within the measuring range.
Value range (depending on the set measuring range):
Measuring range
0..2 mS
0..20 mS
0..200 mS
0..2000 mS
The FUZZY controller is informed of the system characteristic through the adjustment of the
delay time.
Value range: 0 sec to 60 sec
The setpoint difference (XSH) function is used to specify switching point 2. The stated per-
centage refers to the nominal value.
Value range: 0 % to 20 %
Through selecting the module selection function one returns to the controller parameter mod-
ule selection.
Page 2 displays additional parameters on a second page of settings.
417101800_Anhang01_LF_induktiv.doc
Conductivity Measuring Module (electrodeless)
Value range
0.000mS to 2.000mS
0.00mS to 20.00mS
0.0mS to 200.0mS
0mS to 2000mS
Value range
0.000mS to 2.000mS
0.00mS to 20.00mS
0.0mS to 200.0mS
0mS to 2000mS
Value range
0.000 mS to 2.000 mS
0.00 mS to 20.00 mS
0.0 mS to 200.0 mS
0 mS to 2000 mS
