Connection

3.1

Electrical connection

Only probes manufactured by Ecolab Engineering Ltd. must be used.
(see chapter
The measuring probes are equipped with 10 m of cable at the factory. A special shielded
cable (Material-No.418437041) and a special terminal box (Material-No. 288101) must be
implemented if larger distances are to be bridged.
NOTE
Electrode cables must not be placed into one cable duct together with mains leads.
Fig. 3.1
3.2

Probe installation

The probe has a pre-assembled 10-m long cable. A special terminal box and special cable
must be used for larger distances (see chapter
417101800_Anhang01_LF_induktiv.doc
Conductivity Measuring Module (electrodeless)
8 accessories).
The maximum length of the cable must not exceed 100 m.
Do not fit a line extension if the measurement range is between 0 and 2 mS.

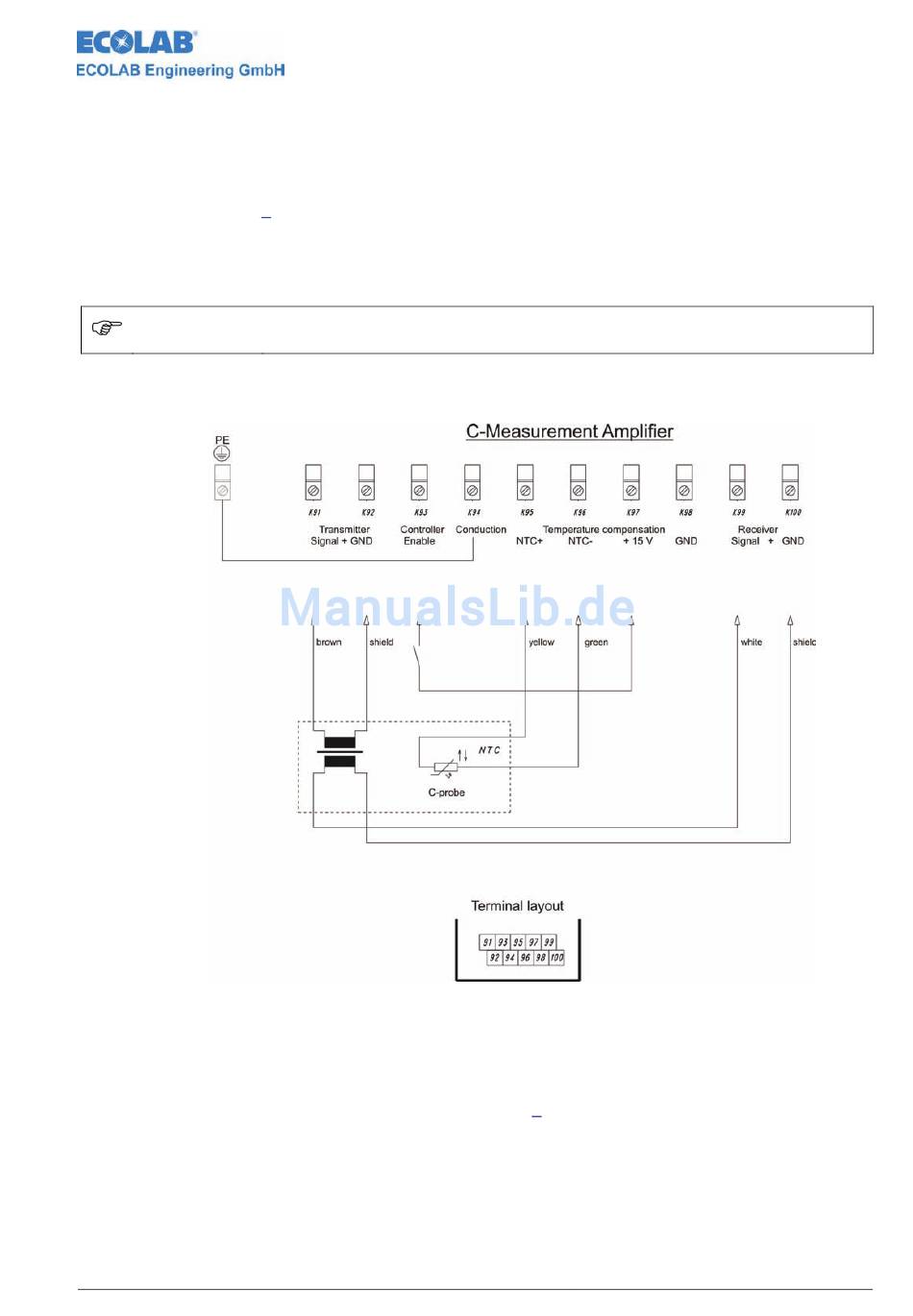

Terminal connection diagram
Contact controller enabling closed ⇒ controller active
8 accessories).
