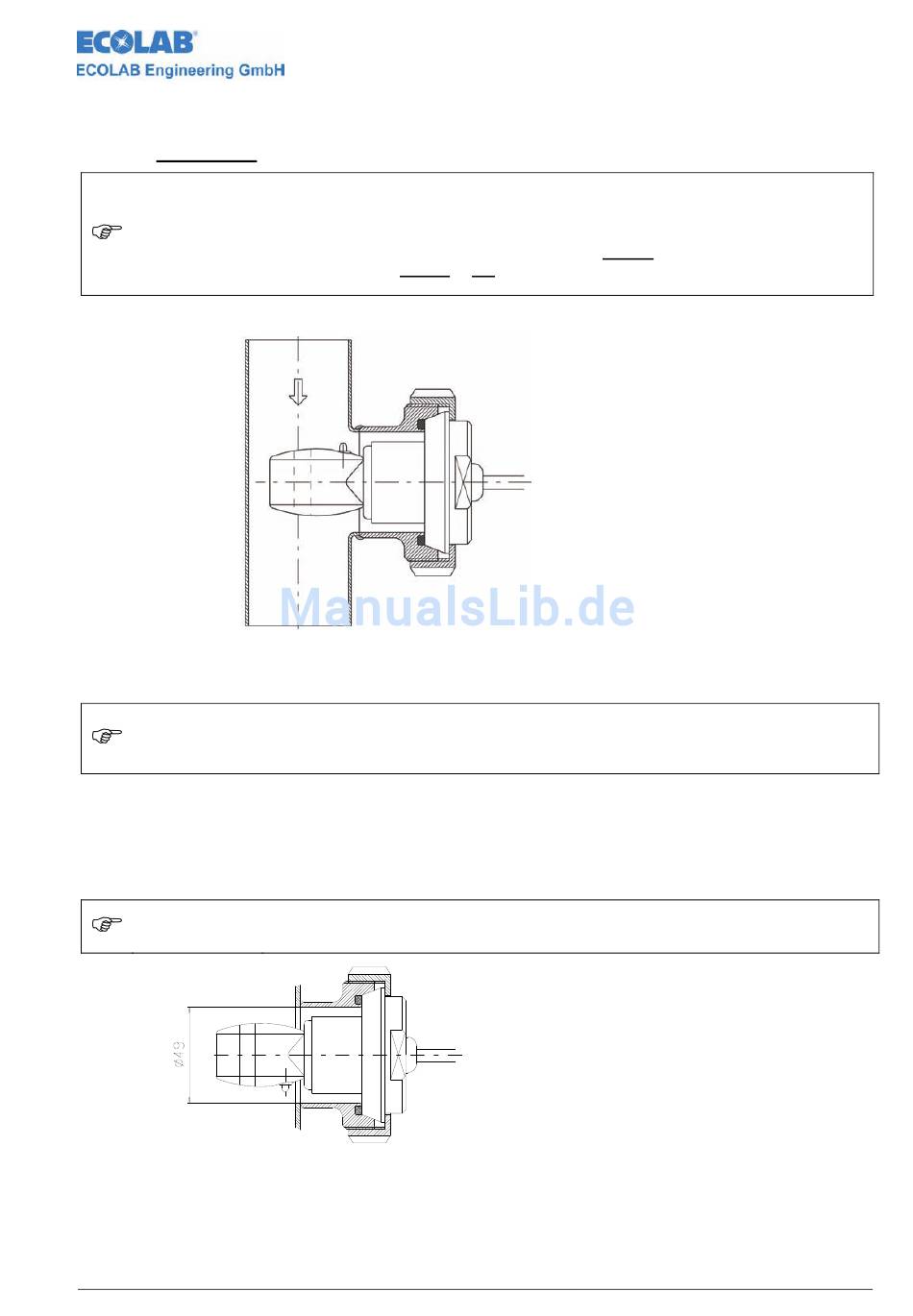

3.3

Pipe installation

Installation: Insert measuring cell into the flow fitting and fasten with the union nut.
NOTE
Fig. 3.2
3.4

Tank wall installation

NOTE
3.5

Tank wall installation by means of weld-on fitting according to DIN 11851

Installation: Drill tank wall at the designated place, bore diameter 49 mm.
NOTE
Fig. 3.3
417101800_Anhang01_LF_induktiv.doc
Conductivity Measuring Module (electrodeless)
The transverse bore of the measuring cell must always be aligned parallel to the pipe
axis, i.e. in the direction of flow of the medium.
Departures can lead to wrong measured value (vortices). The installation position can
be checked from the outside by means of the colour code arrows on the adapter of
the measuring cell. Preferably installed into the vertical pipe with the direction of
through-flow from bottom to top. The distance between measured value transmitter
and device may amount to a maximum of 10 m.
The place of installation must be chosen in such a way that sufficient mixing is war-
ranted in the area of the measuring cell. The transverse bore of the measuring cell
must be aligned vertically, i.e. up to a max. angle of 45°. The distance between meas-
uring cell and device may amount to a maximum of 10 m.
Weld weld-on fitting on correctly.
Inappropriate choice of material with regard to the connection between tank wall,
welding electrode, weld-on fitting (Material 1.4301) and weld finish, can lead to weld
corrosion.
Armature
Type: Flow fitting
(DIN 11851)
Material 1.4301
Nominal diameter: DN 50
Insert seal into the weld-on fitting.
Insert measuring cell with adapter from outside
into the armature and fasten with union nut.
Armature
Type: weld-on fitting
(DIN 11851)
Material 1.4301
through hole 49 mm
- 38 - Rev. 06-07/10
